SDO HMI 2011-10-14 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.66 | 337.62 | 67.91 | 191.29 | 10.47 | 49.21 | -28.79 | 79.18 | 0.4835 | 43.0 | 15.2 | |
|
previous
or next observation for the same group /

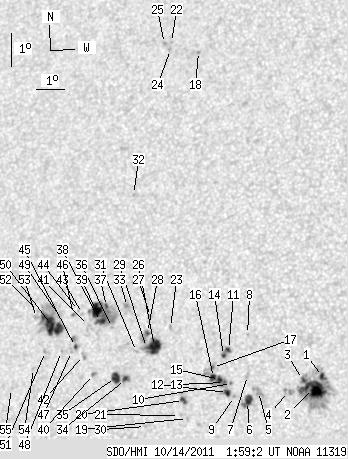

back to the solar disc SDO HMI 2011-10-14 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 88.49 | 1.47 | 47.98 | 9.96 | 54.23 | -23.76 | 78.88 | 0.4062 | -951.2 | -512.8 | |
| 23.52 | -1.00 | 12.76 | -1.00 | 9.59 | 53.96 | -24.03 | 79.87 | 0.4096 | -1124.4 | 999999 | |
| 1.49 | -1.00 | 0.81 | -1.00 | 9.84 | 53.57 | -24.42 | 79.37 | 0.4162 | -690.8 | 999999 | |
| 0.00 | 5.60 | 0.00 | 3.06 | 9.46 | 53.14 | -24.85 | 80.39 | 0.4223 | -688.0 | -602.8 | |
| 0.00 | 7.00 | 0.00 | 3.85 | 9.42 | 52.13 | -25.86 | 80.74 | 0.4378 | -840.0 | -761.7 | |
| 7.96 | 10.06 | 4.39 | 5.55 | 9.10 | 51.79 | -26.20 | 81.53 | 0.4427 | -872.1 | -560.3 | |
| 0.00 | 2.80 | 0.00 | 1.55 | 9.88 | 51.72 | -26.27 | 79.79 | 0.4449 | -759.0 | -550.8 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 11.10 | 51.61 | -26.38 | 77.09 | 0.4492 | -704.0 | -515.7 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 9.23 | 51.34 | -26.66 | 81.32 | 0.4498 | -803.0 | -671.7 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 9.61 | 51.20 | -26.79 | 80.50 | 0.4524 | -634.0 | -589.5 | |
| 1.75 | 6.03 | 0.97 | 3.36 | 10.63 | 51.01 | -26.98 | 78.33 | 0.4573 | 588.7 | -29.9 | |
| 3.24 | 25.36 | 1.80 | 14.13 | 9.34 | 51.09 | -26.90 | 81.13 | 0.4538 | -763.4 | -450.6 | |
| 0.35 | -12.00 | 0.19 | -12.00 | 9.63 | 50.96 | -27.03 | 80.51 | 0.4561 | -1023.0 | 999999 | |
| 1.49 | -11.00 | 0.83 | -11.00 | 10.44 | 50.86 | -27.14 | 78.78 | 0.4592 | -623.1 | 999999 | |
| 2.36 | -12.00 | 1.31 | -12.00 | 9.71 | 50.78 | -27.21 | 80.37 | 0.4590 | -961.7 | 999999 | |
| 3.50 | -12.00 | 1.95 | -12.00 | 9.76 | 50.57 | -27.42 | 80.31 | 0.4623 | -840.5 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.12 | 10.06 | 50.51 | -27.48 | 79.68 | 0.4637 | -932.0 | -753.0 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 19.58 | 48.65 | -29.34 | 61.79 | 0.5260 | 783.0 | 755.4 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 8.50 | 49.79 | -28.20 | 83.16 | 0.4727 | 722.0 | 598.2 | |
| 3.24 | 5.68 | 1.82 | 3.20 | 9.03 | 49.61 | -28.38 | 82.06 | 0.4760 | 969.8 | 716.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 8.57 | 49.51 | -28.48 | 83.03 | 0.4770 | 588.0 | 555.0 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 19.81 | 47.61 | -30.38 | 62.06 | 0.5407 | 857.0 | 677.9 | |
| 0.00 | 1.92 | 0.00 | 1.09 | 11.19 | 48.95 | -29.04 | 77.73 | 0.4894 | -898.0 | -656.6 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 19.59 | 47.62 | -30.37 | 62.43 | 0.5395 | 602.0 | 646.5 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 19.76 | 47.36 | -30.63 | 62.29 | 0.5437 | 728.0 | 589.4 | |
| 13.82 | 29.21 | 7.87 | 16.66 | 10.59 | 48.45 | -29.54 | 79.06 | 0.4956 | -895.1 | -27.1 | |
| 0.00 | 1.84 | 0.00 | 1.05 | 11.48 | 48.21 | -29.78 | 77.34 | 0.5009 | -627.0 | -524.9 | |
| 1.84 | -26.00 | 1.05 | -26.00 | 11.00 | 48.16 | -29.83 | 78.31 | 0.5006 | -532.1 | 999999 | |
| 0.44 | -26.00 | 0.25 | -26.00 | 10.55 | 48.18 | -29.82 | 79.21 | 0.4996 | 186.4 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 8.19 | 48.36 | -29.63 | 83.94 | 0.4941 | -701.0 | -532.5 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 10.41 | 47.84 | -30.15 | 79.55 | 0.5044 | -250.0 | -108.7 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 15.12 | 47.10 | -30.89 | 70.75 | 0.5271 | 686.0 | 619.1 | |
| 0.00 | 4.72 | 0.00 | 2.72 | 11.74 | 47.37 | -30.62 | 77.06 | 0.5138 | 1063.0 | 766.1 | |
| 2.54 | 4.28 | 1.46 | 2.46 | 9.55 | 47.54 | -30.45 | 81.30 | 0.5076 | 1020.1 | 798.7 | |
| 7.43 | 8.13 | 4.28 | 4.69 | 9.59 | 47.18 | -30.81 | 81.27 | 0.5130 | 893.7 | 612.0 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 11.08 | 46.91 | -31.08 | 78.44 | 0.5191 | 241.0 | 217.4 | |
| 1.40 | 46.00 | 0.81 | 26.74 | 11.70 | 46.62 | -31.37 | 77.33 | 0.5245 | 1004.1 | 745.7 | |
| 3.94 | -37.00 | 2.29 | -37.00 | 11.24 | 46.47 | -31.53 | 78.24 | 0.5259 | 1076.8 | 999999 | |
| 9.97 | -37.00 | 5.81 | -37.00 | 11.56 | 46.28 | -31.71 | 77.68 | 0.5292 | 1061.4 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.22 | 9.64 | 46.40 | -31.60 | 81.30 | 0.5246 | 958.0 | 762.3 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 11.10 | 46.05 | -31.94 | 78.60 | 0.5317 | 794.0 | 688.8 | |
| 0.00 | 2.97 | 0.00 | 1.74 | 10.19 | 45.98 | -32.01 | 80.32 | 0.5314 | 857.0 | 710.5 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 11.45 | 45.79 | -32.20 | 78.01 | 0.5360 | 730.0 | 547.4 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 11.53 | 45.64 | -32.35 | 77.89 | 0.5384 | 694.0 | 535.0 | |
| 1.40 | 5.51 | 0.82 | 3.23 | 10.44 | 45.66 | -32.33 | 79.90 | 0.5363 | 905.9 | 802.8 | |
| 1.22 | 1.66 | 0.72 | 0.98 | 11.40 | 45.47 | -32.52 | 78.17 | 0.5405 | 691.6 | 702.6 | |
| 0.00 | 1.57 | 0.00 | 0.92 | 10.29 | 45.54 | -32.46 | 80.21 | 0.5379 | 689.0 | 551.4 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 10.27 | 45.18 | -32.81 | 80.31 | 0.5431 | 750.0 | 616.9 | |
| 0.00 | 1.66 | 0.00 | 0.98 | 11.34 | 44.97 | -33.02 | 78.38 | 0.5476 | 409.0 | 383.2 | |
| 24.05 | 47.05 | 14.25 | 27.90 | 11.05 | 44.72 | -33.28 | 78.95 | 0.5508 | 946.2 | 356.2 | |
| 0.00 | 2.01 | 0.00 | 1.19 | 10.24 | 44.60 | -33.39 | 80.45 | 0.5514 | 687.0 | 627.4 | |
| 0.00 | 1.49 | 0.00 | 0.89 | 11.42 | 44.19 | -33.80 | 78.40 | 0.5588 | -84.0 | -39.9 | |
| 0.00 | 2.10 | 0.00 | 1.25 | 11.23 | 44.14 | -33.85 | 78.73 | 0.5592 | -173.0 | -119.6 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 9.70 | 44.22 | -33.77 | 81.47 | 0.5562 | 713.0 | 544.4 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 9.06 | 43.49 | -34.50 | 82.69 | 0.5662 | 658.0 | 471.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
