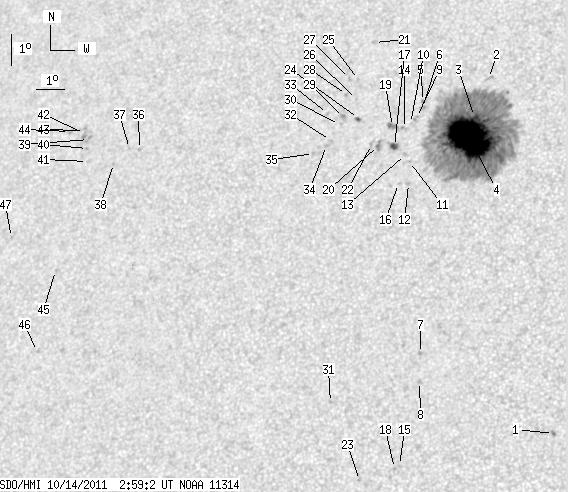

SDO HMI 2011-10-14 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.45 | 712.55 | 65.99 | 401.84 | 26.97 | 57.35 | -20.10 | 39.94 | 0.4783 | -1018.3 | -394.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.84 | 0.00 | 0.96 | 17.95 | 62.07 | -15.38 | 50.08 | 0.3303 | 906.0 | 754.7 | |
| 0.00 | 3.06 | 0.00 | 1.74 | 29.02 | 58.33 | -19.11 | 35.83 | 0.4910 | 346.0 | 316.6 | |
| 0.44 | 631.32 | 0.25 | 354.53 | 27.78 | 58.07 | -19.38 | 37.94 | 0.4794 | -907.4 | -425.6 | |
| 111.94 | -3.00 | 62.84 | -3.00 | 27.10 | 58.01 | -19.43 | 39.01 | 0.4725 | -1544.3 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.10 | 28.20 | 56.14 | -21.30 | 39.79 | 0.5023 | -682.0 | -485.3 | |
| 0.00 | 1.66 | 0.00 | 0.95 | 28.00 | 56.14 | -21.30 | 40.07 | 0.5003 | -766.0 | -560.1 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 20.27 | 57.39 | -20.06 | 51.84 | 0.4109 | -806.0 | -663.3 | |
| 0.00 | 2.01 | 0.00 | 1.09 | 19.41 | 57.47 | -19.98 | 53.53 | 0.4024 | -913.0 | -727.3 | |
| 0.00 | 2.54 | 0.00 | 1.45 | 27.67 | 55.99 | -21.45 | 40.73 | 0.4983 | -464.0 | -510.9 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 27.47 | 55.82 | -21.63 | 41.24 | 0.4980 | -554.0 | -507.6 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 26.26 | 56.02 | -21.42 | 42.85 | 0.4836 | -845.0 | -632.4 | |
| 0.00 | 1.57 | 0.00 | 0.89 | 25.56 | 56.12 | -21.32 | 43.84 | 0.4755 | -785.0 | -639.2 | |
| 0.00 | 2.19 | 0.00 | 1.24 | 26.48 | 55.84 | -21.60 | 42.73 | 0.4877 | -818.0 | -579.8 | |
| 0.00 | 1.92 | 0.00 | 1.10 | 27.30 | 55.63 | -21.81 | 41.71 | 0.4981 | -800.0 | -662.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 16.82 | 57.11 | -20.33 | 59.70 | 0.3869 | -625.0 | -637.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 25.55 | 55.77 | -21.67 | 44.29 | 0.4792 | -641.0 | -552.1 | |
| 3.85 | 5.51 | 2.19 | 3.14 | 26.72 | 55.39 | -22.05 | 42.89 | 0.4947 | -927.2 | -729.6 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 16.72 | 56.95 | -20.49 | 60.10 | 0.3884 | -695.0 | -553.9 | |
| 0.00 | 6.12 | 0.00 | 3.50 | 27.35 | 55.19 | -22.25 | 42.17 | 0.5031 | -930.0 | -694.1 | |
| 0.00 | 2.97 | 0.00 | 1.70 | 26.73 | 54.81 | -22.63 | 43.56 | 0.5008 | -883.0 | -804.4 | |
| 0.00 | 1.75 | 0.00 | 1.03 | 30.04 | 53.90 | -23.55 | 39.79 | 0.5425 | -668.0 | -445.3 | |
| 0.00 | 3.06 | 0.00 | 1.75 | 26.75 | 54.55 | -22.89 | 43.82 | 0.5037 | -619.0 | -457.5 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 16.32 | 55.83 | -21.61 | 62.18 | 0.4014 | -786.0 | -589.3 | |
| 1.22 | 2.27 | 0.71 | 1.32 | 27.56 | 53.90 | -23.55 | 43.32 | 0.5183 | -801.2 | -701.4 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 28.82 | 53.60 | -23.84 | 41.81 | 0.5333 | -695.0 | -617.5 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 28.17 | 53.68 | -23.76 | 42.66 | 0.5263 | -576.0 | -431.2 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 28.84 | 53.26 | -24.18 | 42.15 | 0.5369 | -699.0 | -507.3 | |
| 0.00 | 1.31 | 0.00 | 0.77 | 28.32 | 53.27 | -24.17 | 42.88 | 0.5318 | -692.0 | -594.5 | |
| 0.00 | 3.32 | 0.00 | 1.93 | 27.57 | 53.34 | -24.10 | 43.90 | 0.5241 | 403.0 | 386.5 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 27.34 | 53.25 | -24.20 | 44.35 | 0.5229 | -379.0 | -412.6 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 18.66 | 54.54 | -22.90 | 58.35 | 0.4349 | -852.0 | -654.1 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 26.82 | 53.04 | -24.41 | 45.37 | 0.5203 | -738.0 | -625.5 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 27.68 | 52.72 | -24.72 | 44.40 | 0.5314 | -798.0 | -592.3 | |
| 0.00 | 1.75 | 0.00 | 1.01 | 26.65 | 52.93 | -24.52 | 45.73 | 0.5199 | -889.0 | -685.5 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 26.38 | 52.51 | -24.93 | 46.59 | 0.5220 | -833.0 | -652.6 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 26.20 | 45.96 | -31.48 | 52.51 | 0.5928 | 670.0 | 486.3 | |
| 0.00 | 1.49 | 0.00 | 0.92 | 26.21 | 45.56 | -31.88 | 52.77 | 0.5973 | 646.0 | 495.5 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 25.71 | 45.09 | -32.35 | 53.86 | 0.5993 | 668.0 | 504.2 | |
| 0.00 | 3.50 | 0.00 | 2.20 | 26.41 | 43.87 | -33.57 | 53.63 | 0.6173 | 705.0 | 612.8 | |
| 0.00 | 1.14 | 0.00 | 0.71 | 26.13 | 43.92 | -33.52 | 54.01 | 0.6150 | 709.0 | 596.9 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 25.72 | 44.06 | -33.39 | 54.53 | 0.6110 | 537.0 | 406.9 | |
| 0.00 | 3.67 | 0.00 | 2.32 | 26.59 | 43.65 | -33.79 | 53.51 | 0.6209 | 557.0 | 538.1 | |
| 0.00 | 0.44 | 0.00 | 0.28 | 26.68 | 43.50 | -33.94 | 53.48 | 0.6231 | 380.0 | 349.0 | |
| 0.00 | 3.24 | 0.00 | 2.05 | 26.62 | 43.03 | -34.41 | 53.86 | 0.6278 | 532.0 | 462.4 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 22.25 | 43.82 | -33.62 | 59.96 | 0.5942 | 741.0 | 584.8 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 19.72 | 43.78 | -33.67 | 64.05 | 0.5826 | 746.0 | 631.4 | |
| 0.00 | 1.05 | 0.00 | 0.66 | 23.17 | 41.82 | -35.62 | 59.65 | 0.6228 | 658.0 | 444.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
