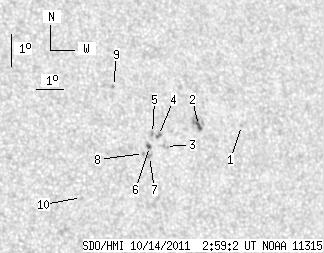

SDO HMI 2011-10-14 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.33 | 25.36 | 3.22 | 15.22 | 20.12 | 109.69 | 32.24 | 297.39 | 0.5662 | 321.5 | 149.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.76 | 20.30 | 112.38 | 34.94 | 296.26 | 0.6012 | -657.0 | -460.3 | |
| 3.67 | 9.71 | 2.23 | 5.90 | 20.39 | 110.75 | 33.30 | 297.24 | 0.5811 | -891.6 | -711.1 | |
| 0.00 | 3.06 | 0.00 | 1.83 | 19.81 | 109.36 | 31.92 | 297.05 | 0.5607 | 739.0 | 491.1 | |
| 0.00 | 2.27 | 0.00 | 1.36 | 20.16 | 109.18 | 31.73 | 297.74 | 0.5601 | 842.0 | 646.0 | |
| 0.00 | 1.84 | 0.00 | 1.09 | 20.24 | 108.97 | 31.53 | 297.99 | 0.5578 | 802.0 | 629.0 | |
| 1.66 | 2.01 | 0.99 | 1.19 | 19.84 | 108.77 | 31.33 | 297.44 | 0.5532 | 746.3 | 792.8 | |
| 0.00 | 2.19 | 0.00 | 1.30 | 19.54 | 108.70 | 31.26 | 296.96 | 0.5508 | 855.0 | 694.6 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 19.64 | 108.50 | 31.06 | 297.25 | 0.5487 | 832.0 | 736.2 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 21.76 | 107.86 | 30.42 | 301.24 | 0.5522 | 785.0 | 696.1 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 18.41 | 105.99 | 28.55 | 296.62 | 0.5093 | 659.0 | 588.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
