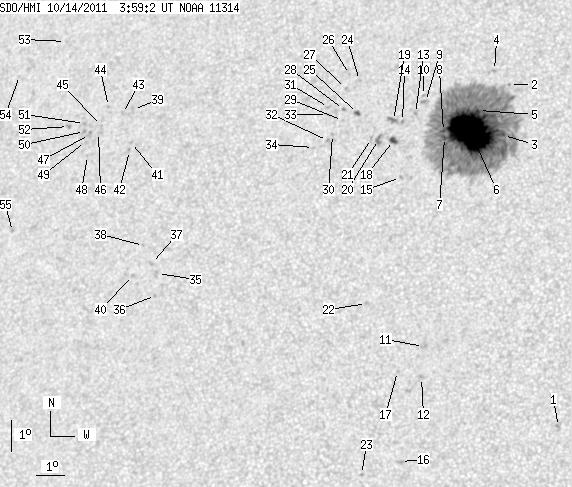

SDO HMI 2011-10-14 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.66 | 733.07 | 64.25 | 412.21 | 26.93 | 57.23 | -19.66 | 39.40 | 0.4739 | -865.6 | -384.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.82 | 17.99 | 62.13 | -14.76 | 48.88 | 0.3231 | 881.0 | 659.4 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 28.67 | 59.11 | -17.78 | 34.48 | 0.4753 | 713.0 | 601.6 | |
| 1.31 | 649.39 | 0.73 | 363.54 | 27.02 | 59.18 | -17.72 | 36.71 | 0.4554 | -943.2 | -428.6 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 29.10 | 58.49 | -18.40 | 34.76 | 0.4858 | 687.0 | 521.8 | |
| 0.44 | -3.00 | 0.25 | -3.00 | 27.79 | 58.16 | -18.74 | 37.04 | 0.4737 | -1022.0 | 999999 | |
| 104.78 | -3.00 | 58.65 | -3.00 | 27.11 | 57.99 | -18.90 | 38.26 | 0.4676 | -1558.5 | 999999 | |
| 1.14 | -3.00 | 0.64 | -3.00 | 26.89 | 57.11 | -19.79 | 39.79 | 0.4737 | -769.5 | 999999 | |
| 1.05 | -3.00 | 0.59 | -3.00 | 27.08 | 57.04 | -19.86 | 39.60 | 0.4765 | -799.7 | 999999 | |
| 0.00 | 3.59 | 0.00 | 2.04 | 28.02 | 56.21 | -20.69 | 39.28 | 0.4946 | -726.0 | -524.3 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 28.21 | 56.10 | -20.80 | 39.14 | 0.4977 | -542.0 | -417.1 | |
| 0.00 | 1.75 | 0.00 | 0.95 | 20.32 | 57.41 | -19.49 | 50.99 | 0.4043 | -659.0 | -647.7 | |
| 0.00 | 2.54 | 0.00 | 1.37 | 19.36 | 57.46 | -19.43 | 52.92 | 0.3951 | -967.0 | -683.9 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 27.62 | 55.93 | -20.97 | 40.21 | 0.4931 | -733.0 | -580.2 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 27.35 | 55.51 | -21.38 | 41.13 | 0.4944 | -845.0 | -730.7 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 25.56 | 55.79 | -21.11 | 43.56 | 0.4734 | -627.0 | -534.7 | |
| 0.00 | 2.62 | 0.00 | 1.40 | 16.77 | 57.06 | -19.83 | 59.24 | 0.3796 | -691.0 | -604.1 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 19.52 | 56.63 | -20.26 | 53.64 | 0.4071 | -702.0 | -487.2 | |
| 3.67 | 5.34 | 2.08 | 3.03 | 26.73 | 55.31 | -21.58 | 42.31 | 0.4901 | -925.8 | -699.6 | |
| 0.00 | 5.68 | 0.00 | 3.24 | 27.37 | 55.18 | -21.71 | 41.50 | 0.4979 | -918.0 | -715.9 | |
| 0.00 | 4.64 | 0.00 | 2.64 | 26.74 | 54.77 | -22.13 | 42.94 | 0.4958 | -814.0 | -730.2 | |
| 0.00 | 1.92 | 0.00 | 1.10 | 26.77 | 54.51 | -22.39 | 43.21 | 0.4987 | -524.0 | -448.8 | |
| 0.00 | 1.92 | 0.00 | 1.06 | 21.58 | 55.28 | -21.62 | 51.16 | 0.4417 | -663.0 | -549.0 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 16.33 | 55.81 | -21.08 | 61.61 | 0.3941 | -773.0 | -547.1 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 28.61 | 53.66 | -23.23 | 41.44 | 0.5254 | -710.0 | -525.1 | |
| 2.27 | 2.71 | 1.31 | 1.56 | 27.55 | 53.83 | -23.07 | 42.80 | 0.5133 | -737.7 | -534.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 28.79 | 53.24 | -23.65 | 41.64 | 0.5312 | -635.0 | -489.0 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 28.33 | 53.21 | -23.69 | 42.34 | 0.5272 | -667.0 | -532.1 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 27.65 | 53.29 | -23.60 | 43.24 | 0.5198 | 746.0 | 560.4 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 27.30 | 53.33 | -23.56 | 43.72 | 0.5160 | -613.0 | -434.1 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 26.84 | 53.07 | -23.82 | 44.71 | 0.5144 | -830.0 | -632.4 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 27.70 | 52.73 | -24.17 | 43.79 | 0.5260 | -688.0 | -501.8 | |
| 0.00 | 1.49 | 0.00 | 0.86 | 26.64 | 52.93 | -23.96 | 45.16 | 0.5140 | -852.0 | -670.2 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 27.47 | 52.74 | -24.15 | 44.10 | 0.5237 | -821.0 | -647.0 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 26.40 | 52.47 | -24.42 | 46.02 | 0.5167 | -768.0 | -584.0 | |
| 0.00 | 1.49 | 0.00 | 0.87 | 22.19 | 47.69 | -29.21 | 57.16 | 0.5399 | 443.0 | 431.8 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 21.51 | 47.77 | -29.13 | 58.26 | 0.5346 | 689.0 | 604.3 | |
| 0.00 | 1.84 | 0.00 | 1.08 | 22.49 | 47.40 | -29.50 | 56.88 | 0.5453 | 757.0 | 553.8 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 23.03 | 46.97 | -29.93 | 56.30 | 0.5540 | 553.0 | 408.6 | |
| 0.00 | 2.19 | 0.00 | 1.35 | 27.29 | 45.39 | -31.51 | 50.91 | 0.6006 | 425.0 | 435.4 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 22.08 | 46.78 | -30.11 | 58.00 | 0.5504 | 941.0 | 614.6 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 26.24 | 45.63 | -31.26 | 52.28 | 0.5907 | 695.0 | 572.8 | |
| 0.00 | 1.31 | 0.00 | 0.80 | 25.99 | 45.63 | -31.26 | 52.66 | 0.5890 | 536.0 | 483.2 | |
| 0.00 | 1.49 | 0.00 | 0.92 | 27.15 | 45.00 | -31.90 | 51.41 | 0.6038 | 594.0 | 443.2 | |
| 0.00 | 1.14 | 0.00 | 0.71 | 27.34 | 44.38 | -32.52 | 51.57 | 0.6118 | 569.0 | 435.5 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 26.72 | 44.30 | -32.59 | 52.52 | 0.6086 | 561.0 | 485.7 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 26.49 | 44.25 | -32.64 | 52.89 | 0.6076 | 626.0 | 508.6 | |
| 0.00 | 3.32 | 0.00 | 2.07 | 26.41 | 43.92 | -32.97 | 53.23 | 0.6107 | 770.0 | 645.7 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 25.74 | 44.05 | -32.84 | 54.13 | 0.6051 | 554.0 | 423.6 | |
| 0.00 | 0.52 | 0.00 | 0.33 | 26.18 | 43.84 | -33.06 | 53.63 | 0.6102 | 690.0 | 616.8 | |
| 0.00 | 1.66 | 0.00 | 1.04 | 26.50 | 43.69 | -33.20 | 53.26 | 0.6138 | 774.0 | 619.1 | |
| 0.00 | 1.40 | 0.00 | 0.88 | 26.75 | 43.61 | -33.28 | 52.95 | 0.6163 | 587.0 | 483.1 | |
| 0.00 | 2.10 | 0.00 | 1.32 | 26.62 | 43.01 | -33.88 | 53.53 | 0.6221 | 648.0 | 548.2 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 29.33 | 41.90 | -35.00 | 50.46 | 0.6508 | 503.0 | 510.5 | |
| 0.00 | 0.61 | 0.00 | 0.40 | 28.13 | 40.43 | -36.46 | 52.99 | 0.6587 | 426.0 | 387.3 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 23.20 | 41.86 | -35.04 | 59.28 | 0.6161 | 600.0 | 519.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
