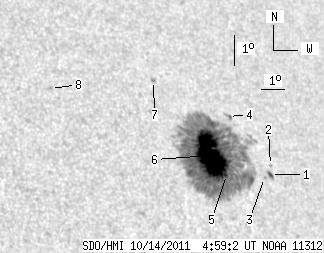

SDO HMI 2011-10-14 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.61 | 458.65 | 49.01 | 323.14 | 23.25 | 119.78 | 43.44 | 297.11 | 0.7120 | -1077.0 | -360.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.27 | 3.32 | 1.66 | 2.42 | 22.47 | 122.19 | 45.84 | 295.29 | 0.7355 | 405.5 | 317.8 | |
| 0.00 | 0.96 | 0.00 | 0.70 | 22.74 | 122.31 | 45.96 | 295.62 | 0.7376 | 419.0 | 376.9 | |
| 0.00 | 1.05 | 0.00 | 0.76 | 22.40 | 121.88 | 45.53 | 295.28 | 0.7320 | 626.0 | 530.4 | |
| 0.00 | 3.15 | 0.00 | 2.27 | 24.39 | 121.08 | 44.73 | 298.19 | 0.7295 | 514.0 | 417.9 | |
| 0.87 | 447.02 | 0.62 | 314.85 | 22.61 | 120.23 | 43.88 | 296.08 | 0.7147 | -825.5 | -375.3 | |
| 66.47 | -5.00 | 46.73 | -5.00 | 23.24 | 119.76 | 43.42 | 297.10 | 0.7117 | -1280.1 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.28 | 25.74 | 118.26 | 41.91 | 301.05 | 0.7047 | -735.0 | -559.7 | |
| 0.00 | 1.31 | 0.00 | 0.86 | 25.76 | 113.81 | 37.46 | 303.17 | 0.6567 | 665.0 | 563.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
