SDO HMI 2011-10-14 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.78 | 763.31 | 63.60 | 428.12 | 26.84 | 57.14 | -19.21 | 38.89 | 0.4691 | -791.7 | -373.1 | |
|
previous
or next observation for the same group /

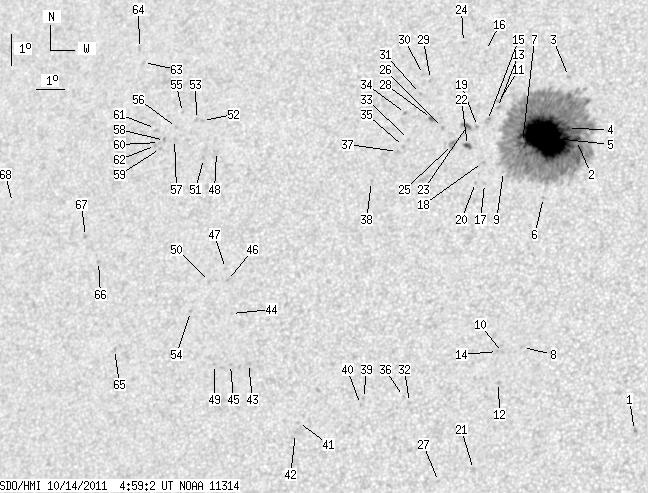

back to the solar disc SDO HMI 2011-10-14 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.59 | 18.06 | 62.10 | -14.25 | 47.74 | 0.3175 | 821.0 | 653.5 | |
| 0.96 | 670.05 | 0.53 | 374.06 | 27.06 | 59.08 | -17.26 | 35.98 | 0.4517 | -1042.4 | -417.5 | |
| 0.00 | 1.57 | 0.00 | 0.89 | 29.11 | 58.45 | -17.90 | 34.04 | 0.4816 | 707.0 | 455.6 | |
| 1.66 | -2.00 | 0.93 | -2.00 | 27.43 | 58.70 | -17.64 | 35.99 | 0.4596 | -1091.1 | 999999 | |
| 102.33 | -2.00 | 57.12 | -2.00 | 27.12 | 57.98 | -18.37 | 37.49 | 0.4627 | -1569.7 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 25.21 | 58.22 | -18.13 | 40.10 | 0.4389 | 660.0 | 481.3 | |
| 0.87 | -2.00 | 0.49 | -2.00 | 26.94 | 57.19 | -19.15 | 38.86 | 0.4681 | -801.8 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 20.51 | 58.15 | -18.19 | 48.81 | 0.3903 | -707.0 | -606.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 25.99 | 56.69 | -19.66 | 41.00 | 0.4629 | -40.0 | -62.6 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 20.33 | 57.50 | -18.84 | 50.09 | 0.3966 | -804.0 | -664.6 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 28.22 | 56.09 | -20.25 | 38.43 | 0.4928 | -535.0 | -432.4 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 19.40 | 57.48 | -18.86 | 52.07 | 0.3883 | -950.0 | -693.1 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 28.03 | 56.09 | -20.25 | 38.71 | 0.4906 | -819.0 | -667.1 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 20.36 | 57.33 | -19.02 | 50.27 | 0.3989 | -627.0 | -440.6 | |
| 0.00 | 3.06 | 0.00 | 1.74 | 27.60 | 55.82 | -20.53 | 39.69 | 0.4887 | -537.0 | -559.1 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 29.86 | 55.27 | -21.07 | 37.18 | 0.5181 | -574.0 | -490.4 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 25.59 | 56.09 | -20.26 | 42.44 | 0.4648 | -737.0 | -601.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 26.25 | 55.90 | -20.45 | 41.63 | 0.4737 | -768.0 | -725.0 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 27.39 | 55.50 | -20.85 | 40.39 | 0.4896 | -740.0 | -601.5 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 25.61 | 55.76 | -20.58 | 42.82 | 0.4684 | -716.0 | -553.5 | |
| 0.00 | 1.84 | 0.00 | 0.98 | 16.72 | 56.95 | -19.39 | 58.84 | 0.3732 | -622.0 | -390.4 | |
| 3.15 | 3.67 | 1.78 | 2.08 | 26.77 | 55.26 | -21.09 | 41.63 | 0.4855 | -941.3 | -833.3 | |
| 2.80 | 4.90 | 1.59 | 2.79 | 27.41 | 55.13 | -21.21 | 40.82 | 0.4934 | -840.3 | -644.2 | |
| 0.00 | 1.57 | 0.00 | 0.92 | 30.09 | 54.40 | -21.94 | 37.90 | 0.5284 | -651.0 | -409.6 | |
| 0.00 | 5.95 | 0.00 | 3.38 | 26.79 | 54.72 | -21.63 | 42.27 | 0.4912 | -874.0 | -753.8 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 27.32 | 54.25 | -22.10 | 42.03 | 0.5013 | -908.0 | -747.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 16.32 | 55.84 | -20.51 | 61.05 | 0.3860 | -778.0 | -650.5 | |
| 2.01 | 2.62 | 1.16 | 1.51 | 27.59 | 53.79 | -22.56 | 42.16 | 0.5087 | -769.8 | -544.4 | |
| 0.00 | 1.75 | 0.00 | 1.02 | 28.84 | 53.47 | -22.88 | 40.70 | 0.5244 | -692.0 | -589.2 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 29.00 | 53.17 | -23.18 | 40.81 | 0.5287 | -532.0 | -430.8 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 28.38 | 53.20 | -23.14 | 41.66 | 0.5223 | -735.0 | -559.6 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 18.69 | 54.57 | -21.78 | 57.11 | 0.4203 | -884.0 | -672.3 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 26.89 | 53.10 | -23.25 | 43.99 | 0.5089 | -787.0 | -625.3 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 27.71 | 52.80 | -23.54 | 43.08 | 0.5198 | -606.0 | -551.1 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 26.66 | 52.97 | -23.38 | 44.49 | 0.5081 | -927.0 | -777.5 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 18.86 | 54.34 | -22.01 | 56.98 | 0.4246 | -686.0 | -407.1 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 26.49 | 52.78 | -23.56 | 44.95 | 0.5084 | -821.0 | -651.9 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 25.50 | 52.05 | -24.29 | 47.30 | 0.5074 | -649.0 | -488.1 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 18.75 | 52.99 | -23.36 | 58.58 | 0.4418 | -568.0 | -519.4 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 18.56 | 52.91 | -23.44 | 59.03 | 0.4415 | -803.0 | -537.8 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 17.92 | 50.86 | -25.49 | 62.09 | 0.4652 | -685.0 | -571.0 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 17.58 | 50.81 | -25.54 | 62.81 | 0.4639 | -329.0 | -387.4 | |
| 0.00 | 1.84 | 0.00 | 1.05 | 19.65 | 48.80 | -27.55 | 60.38 | 0.5031 | 721.0 | 580.5 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 21.16 | 47.88 | -28.46 | 58.37 | 0.5241 | 701.0 | 461.9 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 19.59 | 48.16 | -28.18 | 60.95 | 0.5111 | 668.0 | 529.6 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 22.17 | 47.52 | -28.83 | 56.91 | 0.5351 | 788.0 | 651.4 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 22.54 | 47.36 | -28.99 | 56.41 | 0.5395 | 648.0 | 548.6 | |
| 0.00 | 1.84 | 0.00 | 1.11 | 26.19 | 46.07 | -30.27 | 51.61 | 0.5794 | 415.0 | 406.4 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 19.56 | 47.59 | -28.76 | 61.40 | 0.5184 | 780.0 | 652.6 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 22.11 | 46.86 | -29.48 | 57.50 | 0.5428 | 756.0 | 631.0 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 25.94 | 45.64 | -30.71 | 52.31 | 0.5825 | 317.0 | 427.8 | |
| 0.00 | 1.31 | 0.00 | 0.81 | 27.15 | 45.24 | -31.11 | 50.82 | 0.5953 | 720.0 | 558.1 | |
| 0.00 | 1.75 | 0.00 | 1.08 | 27.17 | 45.00 | -31.35 | 50.97 | 0.5980 | 608.0 | 477.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 21.15 | 46.38 | -29.97 | 59.46 | 0.5431 | 684.0 | 536.6 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 27.36 | 44.38 | -31.96 | 51.14 | 0.6060 | 609.0 | 410.7 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 26.87 | 44.30 | -32.05 | 51.91 | 0.6036 | 537.0 | 404.6 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 26.49 | 44.34 | -32.00 | 52.44 | 0.6006 | 691.0 | 516.7 | |
| 0.00 | 1.84 | 0.00 | 1.14 | 26.44 | 43.96 | -32.38 | 52.78 | 0.6044 | 883.0 | 738.9 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 26.17 | 43.89 | -32.46 | 53.22 | 0.6036 | 803.0 | 604.0 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 26.36 | 43.79 | -32.56 | 53.01 | 0.6059 | 695.0 | 564.6 | |
| 0.00 | 0.52 | 0.00 | 0.33 | 26.80 | 43.49 | -32.86 | 52.58 | 0.6120 | 344.0 | 417.2 | |
| 0.00 | 1.49 | 0.00 | 0.92 | 26.26 | 43.66 | -32.68 | 53.25 | 0.6066 | 496.0 | 470.8 | |
| 0.00 | 1.31 | 0.00 | 0.84 | 28.88 | 42.27 | -34.07 | 50.46 | 0.6385 | 652.0 | 407.5 | |
| 0.00 | 1.22 | 0.00 | 0.79 | 29.32 | 41.94 | -34.41 | 50.08 | 0.6448 | 536.0 | 460.7 | |
| 0.00 | 1.75 | 0.00 | 1.05 | 19.83 | 43.83 | -32.51 | 63.23 | 0.5685 | 735.0 | 526.3 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 22.51 | 42.54 | -33.81 | 59.65 | 0.5979 | 660.0 | 515.2 | |
| 0.00 | 1.66 | 0.00 | 1.04 | 23.26 | 41.81 | -34.53 | 58.91 | 0.6105 | 793.0 | 610.6 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 24.15 | 38.57 | -37.78 | 59.30 | 0.6525 | 558.0 | 509.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
