SDO HMI 2011-10-14 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.60 | 449.65 | 52.95 | 319.61 | 23.28 | 119.80 | 44.01 | 296.95 | 0.7183 | -1084.9 | -356.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

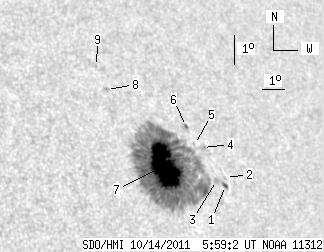

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.01 | 2.89 | 1.48 | 2.12 | 22.45 | 122.24 | 46.44 | 295.10 | 0.7419 | 426.0 | 378.5 | |
| 0.00 | 0.44 | 0.00 | 0.32 | 22.70 | 122.35 | 46.55 | 295.39 | 0.7437 | 450.0 | 355.2 | |
| 0.00 | 2.71 | 0.00 | 1.98 | 22.64 | 121.90 | 46.10 | 295.44 | 0.7388 | 233.0 | 197.4 | |
| 0.00 | 2.45 | 0.00 | 1.80 | 23.70 | 121.71 | 45.91 | 296.89 | 0.7398 | 69.0 | 159.8 | |
| 0.00 | 0.70 | 0.00 | 0.51 | 23.82 | 121.39 | 45.59 | 297.15 | 0.7368 | -311.0 | -215.8 | |
| 0.52 | 2.62 | 0.38 | 1.91 | 24.40 | 121.28 | 45.48 | 297.95 | 0.7374 | 544.5 | 379.0 | |
| 72.07 | 434.61 | 51.09 | 308.69 | 23.26 | 119.76 | 43.97 | 296.94 | 0.7178 | -1283.2 | -370.7 | |
| 0.00 | 2.27 | 0.00 | 1.60 | 25.80 | 118.23 | 42.43 | 300.92 | 0.7104 | -714.0 | -537.0 | |
| 0.00 | 0.96 | 0.00 | 0.68 | 26.55 | 118.12 | 42.32 | 301.97 | 0.7123 | -592.0 | -419.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
