SDO HMI 2011-10-14 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.35 | 367.13 | 59.53 | 204.00 | 10.35 | 49.16 | -26.64 | 78.81 | 0.4507 | 112.0 | -14.3 | |
|
previous
or next observation for the same group /

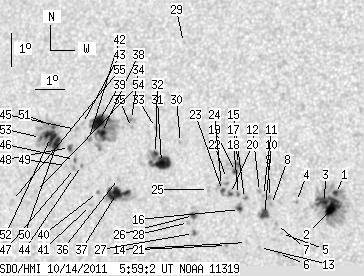

back to the solar disc SDO HMI 2011-10-14 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.19 | 97.87 | 1.16 | 52.15 | 9.91 | 54.41 | -21.39 | 78.07 | 0.3688 | -967.5 | -591.0 | |
| 8.57 | -1.00 | 4.57 | -1.00 | 9.42 | 54.28 | -21.52 | 79.43 | 0.3697 | -1377.0 | 999999 | |
| 1.40 | -1.00 | 0.75 | -1.00 | 9.62 | 54.07 | -21.73 | 78.96 | 0.3735 | -1064.5 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 9.62 | 53.15 | -22.64 | 79.30 | 0.3880 | -737.0 | -551.9 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 8.64 | 52.73 | -23.07 | 81.92 | 0.3930 | 541.0 | 408.2 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 8.04 | 52.67 | -23.13 | 83.46 | 0.3932 | -897.0 | -684.0 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 8.90 | 52.55 | -23.25 | 81.30 | 0.3963 | -880.0 | -738.5 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 9.49 | 52.34 | -23.46 | 79.87 | 0.4006 | -818.0 | -737.5 | |
| 0.00 | 1.84 | 0.00 | 0.99 | 9.70 | 52.26 | -23.54 | 79.38 | 0.4023 | -981.0 | -780.9 | |
| 5.77 | 7.61 | 3.12 | 4.12 | 9.19 | 52.13 | -23.67 | 80.70 | 0.4033 | -981.6 | -741.7 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 9.75 | 52.05 | -23.74 | 79.32 | 0.4056 | -835.0 | -711.5 | |
| 0.00 | 1.84 | 0.00 | 1.00 | 9.87 | 51.91 | -23.89 | 79.08 | 0.4080 | -878.0 | -678.9 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 8.19 | 52.03 | -23.77 | 83.18 | 0.4035 | -676.0 | -498.8 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 8.32 | 51.59 | -24.21 | 82.93 | 0.4106 | -677.0 | -413.8 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 9.64 | 51.43 | -24.37 | 79.79 | 0.4151 | -971.0 | -797.9 | |
| 2.10 | 4.64 | 1.14 | 2.52 | 9.30 | 51.29 | -24.51 | 80.63 | 0.4167 | -803.7 | -666.1 | |
| 1.84 | 9.88 | 1.00 | 5.40 | 10.65 | 51.15 | -24.65 | 77.48 | 0.4217 | 617.0 | 22.1 | |
| 1.40 | 2.01 | 0.76 | 1.10 | 9.75 | 51.22 | -24.58 | 79.58 | 0.4186 | -667.1 | -645.9 | |
| 2.10 | -17.00 | 1.15 | -17.00 | 10.43 | 51.07 | -24.73 | 78.01 | 0.4224 | -636.1 | 999999 | |
| 1.66 | 3.50 | 0.91 | 1.91 | 9.77 | 50.95 | -24.85 | 79.61 | 0.4228 | -956.9 | -710.2 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 8.21 | 50.93 | -24.86 | 83.32 | 0.4208 | -753.0 | -504.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 10.21 | 50.78 | -25.02 | 78.62 | 0.4263 | -702.0 | -537.5 | |
| 1.84 | 3.41 | 1.01 | 1.87 | 9.85 | 50.68 | -25.12 | 79.51 | 0.4272 | -798.1 | -601.0 | |
| 0.00 | 4.81 | 0.00 | 2.63 | 9.99 | 50.63 | -25.17 | 79.18 | 0.4282 | -335.0 | -666.1 | |
| 0.00 | 1.57 | 0.00 | 0.87 | 9.85 | 50.21 | -25.59 | 79.62 | 0.4345 | -539.0 | -499.6 | |
| 2.97 | 4.72 | 1.64 | 2.60 | 9.05 | 49.77 | -26.03 | 81.55 | 0.4400 | 958.7 | 842.0 | |
| 1.75 | 2.01 | 0.96 | 1.11 | 8.52 | 49.81 | -25.99 | 82.77 | 0.4387 | 921.6 | 932.0 | |
| 0.00 | 1.75 | 0.00 | 0.97 | 8.84 | 49.61 | -26.18 | 82.07 | 0.4421 | 842.0 | 640.3 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 14.23 | 48.89 | -26.91 | 70.57 | 0.4671 | 601.0 | 506.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 11.22 | 49.13 | -26.67 | 76.89 | 0.4539 | -764.0 | -663.5 | |
| 17.06 | 28.60 | 9.51 | 15.97 | 10.59 | 48.54 | -27.25 | 78.44 | 0.4614 | -943.3 | -263.6 | |
| 1.22 | -31.00 | 0.68 | -31.00 | 10.85 | 48.31 | -27.49 | 77.95 | 0.4654 | -567.5 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.88 | 11.63 | 48.23 | -27.57 | 76.32 | 0.4685 | -633.0 | -530.3 | |
| 0.00 | 4.20 | 0.00 | 2.37 | 11.83 | 47.38 | -28.42 | 76.19 | 0.4817 | 956.0 | 736.0 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 11.59 | 47.41 | -28.39 | 76.67 | 0.4807 | 881.0 | 640.1 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 10.04 | 47.12 | -28.68 | 79.95 | 0.4819 | 575.0 | 588.2 | |
| 16.01 | 28.78 | 9.04 | 16.23 | 9.59 | 47.09 | -28.71 | 80.90 | 0.4817 | 1003.1 | 485.7 | |
| 3.50 | 61.22 | 1.99 | 34.84 | 11.39 | 46.38 | -29.42 | 77.39 | 0.4954 | 1221.3 | 655.3 | |
| 11.72 | -38.00 | 6.69 | -38.00 | 11.71 | 46.24 | -29.56 | 76.78 | 0.4982 | 1096.0 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 9.59 | 46.43 | -29.37 | 81.02 | 0.4916 | 848.0 | 710.0 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 9.19 | 46.22 | -29.58 | 81.87 | 0.4942 | 811.0 | 606.7 | |
| 0.00 | 2.89 | 0.00 | 1.65 | 11.16 | 45.95 | -29.85 | 77.96 | 0.5013 | 831.0 | 727.3 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 11.62 | 45.68 | -30.11 | 77.11 | 0.5062 | 660.0 | 486.5 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 10.37 | 45.79 | -30.01 | 79.57 | 0.5022 | 996.0 | 858.9 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 11.43 | 45.50 | -30.30 | 77.53 | 0.5086 | 825.0 | 687.9 | |
| 1.22 | 2.54 | 0.70 | 1.45 | 10.53 | 45.53 | -30.27 | 79.30 | 0.5064 | 930.0 | 537.6 | |
| 0.00 | 1.57 | 0.00 | 0.90 | 10.26 | 45.56 | -30.24 | 79.82 | 0.5056 | 898.0 | 783.0 | |
| 2.62 | 3.67 | 1.51 | 2.11 | 10.88 | 45.31 | -30.49 | 78.66 | 0.5102 | 905.6 | 915.6 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 10.34 | 45.27 | -30.53 | 79.73 | 0.5100 | 429.0 | 506.8 | |
| 6.91 | 55.01 | 3.99 | 31.90 | 10.95 | 44.84 | -30.96 | 78.64 | 0.5172 | 1066.7 | 339.4 | |
| 1.57 | -50.00 | 0.91 | -50.00 | 11.48 | 44.67 | -31.13 | 77.65 | 0.5207 | 719.1 | 999999 | |
| 9.97 | -50.00 | 5.78 | -50.00 | 11.15 | 44.61 | -31.19 | 78.31 | 0.5210 | 962.0 | 999999 | |
| 0.96 | -50.00 | 0.56 | -50.00 | 11.13 | 44.25 | -31.55 | 78.42 | 0.5261 | 472.5 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.91 | 9.50 | 44.25 | -31.55 | 81.52 | 0.5238 | 729.0 | 389.6 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 9.19 | 43.46 | -32.34 | 82.21 | 0.5351 | 708.0 | 475.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
