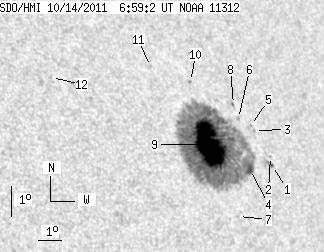

SDO HMI 2011-10-14 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.27 | 444.90 | 54.65 | 319.07 | 23.19 | 119.92 | 44.67 | 296.62 | 0.7251 | -995.2 | -342.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.96 | 5.34 | 0.72 | 3.96 | 22.40 | 122.33 | 47.08 | 294.86 | 0.7486 | 569.7 | 391.1 | |
| 0.00 | 0.96 | 0.00 | 0.72 | 22.68 | 122.37 | 47.11 | 295.23 | 0.7496 | 388.0 | 276.1 | |
| 0.00 | 1.22 | 0.00 | 0.91 | 23.54 | 121.99 | 46.74 | 296.44 | 0.7480 | 456.0 | 378.0 | |
| 5.60 | 429.78 | 4.09 | 308.01 | 22.35 | 121.27 | 46.02 | 295.09 | 0.7372 | -373.9 | -365.6 | |
| 0.00 | 0.87 | 0.00 | 0.65 | 23.71 | 121.88 | 46.63 | 296.69 | 0.7473 | 165.0 | 187.0 | |
| 0.00 | 0.96 | 0.00 | 0.71 | 23.96 | 121.43 | 46.17 | 297.17 | 0.7433 | -200.0 | -173.0 | |
| 0.00 | 1.31 | 0.00 | 0.93 | 20.95 | 120.15 | 44.90 | 293.53 | 0.7213 | 460.0 | 374.6 | |
| 0.00 | 1.49 | 0.00 | 1.10 | 24.41 | 121.40 | 46.15 | 297.76 | 0.7444 | 675.0 | 462.6 | |
| 69.71 | -4.00 | 49.84 | -4.00 | 23.25 | 119.76 | 44.51 | 296.75 | 0.7236 | -1278.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.76 | 25.26 | 119.78 | 44.53 | 299.42 | 0.7304 | -505.0 | -394.5 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 25.85 | 118.21 | 42.95 | 300.79 | 0.7162 | -643.0 | -533.2 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 25.78 | 113.82 | 38.57 | 302.64 | 0.6690 | 692.0 | 531.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
