SDO HMI 2011-10-14 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.42 | 734.06 | 60.74 | 409.47 | 26.76 | 56.99 | -18.26 | 37.65 | 0.4596 | -770.1 | -373.0 | |
|
previous
or next observation for the same group /

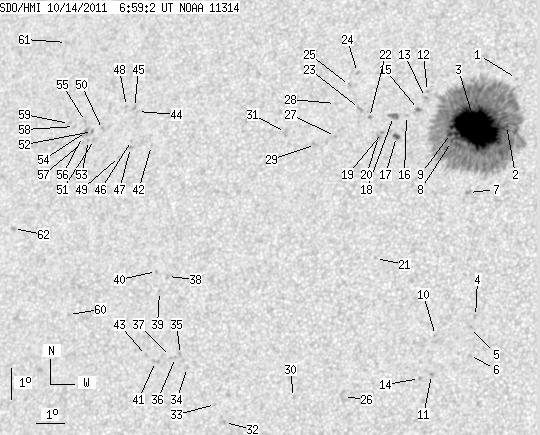

back to the solar disc SDO HMI 2011-10-14 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.49 | 28.76 | 59.13 | -16.12 | 31.89 | 0.4627 | 719.0 | 537.2 | |
| 0.79 | 639.08 | 0.43 | 354.80 | 27.24 | 59.01 | -16.24 | 34.14 | 0.4449 | -1001.3 | -433.6 | |
| 103.47 | -2.00 | 57.42 | -2.00 | 27.11 | 57.98 | -17.27 | 35.90 | 0.4526 | -1543.9 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 21.20 | 58.75 | -16.50 | 44.77 | 0.3776 | -574.0 | -533.5 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 20.85 | 58.63 | -16.63 | 45.67 | 0.3754 | -760.0 | -663.8 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 19.99 | 58.69 | -16.56 | 47.37 | 0.3657 | -729.0 | -612.4 | |
| 0.00 | 2.54 | 0.00 | 1.39 | 25.07 | 58.01 | -17.24 | 38.99 | 0.4285 | 908.0 | 631.9 | |
| 0.87 | -2.00 | 0.49 | -2.00 | 26.67 | 57.17 | -18.08 | 37.74 | 0.4550 | -894.5 | 999999 | |
| 1.75 | -2.00 | 0.97 | -2.00 | 26.92 | 57.09 | -18.16 | 37.47 | 0.4587 | -881.3 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 20.57 | 57.49 | -17.77 | 48.02 | 0.3859 | -620.0 | -491.5 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 19.37 | 57.49 | -17.76 | 50.56 | 0.3742 | -974.0 | -782.4 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 28.25 | 56.04 | -19.21 | 37.02 | 0.4835 | -654.0 | -516.4 | |
| 0.00 | 1.75 | 0.00 | 0.99 | 28.05 | 56.00 | -19.25 | 37.34 | 0.4816 | -713.0 | -537.8 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 19.23 | 57.11 | -18.14 | 51.42 | 0.3778 | -734.0 | -631.1 | |
| 0.00 | 2.89 | 0.00 | 1.63 | 27.66 | 55.83 | -19.43 | 38.15 | 0.4789 | -870.0 | -723.0 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 27.45 | 55.43 | -19.82 | 38.97 | 0.4803 | -658.0 | -562.0 | |
| 2.54 | 2.97 | 1.43 | 1.67 | 26.77 | 55.20 | -20.05 | 40.30 | 0.4752 | -959.4 | -863.6 | |
| 0.00 | 5.34 | 0.00 | 3.02 | 27.40 | 54.98 | -20.28 | 39.64 | 0.4843 | -975.0 | -741.7 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 26.88 | 54.68 | -20.57 | 40.80 | 0.4816 | -888.0 | -778.0 | |
| 0.00 | 2.19 | 0.00 | 1.23 | 26.74 | 54.56 | -20.69 | 41.15 | 0.4814 | -829.0 | -682.5 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 22.89 | 55.12 | -20.13 | 46.84 | 0.4364 | -603.0 | -507.4 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 27.34 | 54.12 | -21.13 | 40.80 | 0.4920 | -915.0 | -760.5 | |
| 0.00 | 2.45 | 0.00 | 1.40 | 27.62 | 53.71 | -21.55 | 40.91 | 0.4990 | -868.0 | -690.7 | |
| 0.00 | 1.66 | 0.00 | 0.96 | 28.77 | 53.38 | -21.87 | 39.62 | 0.5141 | -751.0 | -616.2 | |
| 0.00 | 2.36 | 0.00 | 1.36 | 28.34 | 53.19 | -22.07 | 40.47 | 0.5115 | -739.0 | -548.6 | |
| 0.00 | 6.03 | 0.00 | 3.27 | 18.60 | 54.64 | -20.61 | 55.99 | 0.4043 | -524.0 | -500.3 | |
| 0.00 | 0.52 | 0.00 | 0.30 | 26.69 | 53.03 | -22.23 | 43.11 | 0.4965 | -789.0 | -670.8 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 27.75 | 52.80 | -22.45 | 41.78 | 0.5093 | -710.0 | -519.5 | |
| 0.00 | 1.84 | 0.00 | 1.05 | 26.41 | 52.36 | -22.89 | 44.32 | 0.5007 | -829.0 | -595.9 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 18.50 | 52.95 | -22.30 | 58.02 | 0.4260 | -853.0 | -610.0 | |
| 0.00 | 4.02 | 0.00 | 2.32 | 26.75 | 51.19 | -24.06 | 45.08 | 0.5162 | -648.0 | -442.4 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 17.65 | 50.71 | -24.54 | 61.87 | 0.4508 | -879.0 | -654.3 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 18.18 | 50.32 | -24.94 | 61.11 | 0.4594 | -318.0 | -281.8 | |
| 0.00 | 1.75 | 0.00 | 0.99 | 19.27 | 49.16 | -26.09 | 59.93 | 0.4817 | 84.0 | 124.7 | |
| 0.00 | 1.75 | 0.00 | 0.99 | 19.66 | 48.84 | -26.41 | 59.46 | 0.4883 | 735.0 | 636.2 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 19.56 | 48.68 | -26.57 | 59.77 | 0.4898 | 835.0 | 760.6 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 19.58 | 48.50 | -26.75 | 59.87 | 0.4923 | 648.0 | 607.6 | |
| 0.00 | 1.49 | 0.00 | 0.86 | 22.04 | 47.91 | -27.34 | 55.93 | 0.5160 | 776.0 | 711.6 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 21.57 | 47.72 | -27.53 | 56.91 | 0.5151 | 655.0 | 560.2 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 22.18 | 47.48 | -27.77 | 56.04 | 0.5222 | 825.0 | 693.2 | |
| 0.00 | 2.62 | 0.00 | 1.50 | 19.41 | 48.00 | -27.25 | 60.59 | 0.4978 | 692.0 | 626.1 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 26.12 | 46.34 | -28.91 | 50.62 | 0.5638 | 582.0 | 458.8 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 19.57 | 47.65 | -27.61 | 60.54 | 0.5035 | 824.0 | 661.5 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 27.17 | 45.50 | -29.75 | 49.72 | 0.5808 | 677.0 | 547.0 | |
| 0.00 | 2.01 | 0.00 | 1.22 | 27.29 | 45.35 | -29.90 | 49.66 | 0.5834 | 673.0 | 526.8 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 26.24 | 45.54 | -29.71 | 51.08 | 0.5736 | 734.0 | 602.4 | |
| 0.00 | 2.01 | 0.00 | 1.21 | 26.02 | 45.57 | -29.69 | 51.40 | 0.5717 | 837.0 | 592.8 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 27.31 | 45.03 | -30.22 | 49.89 | 0.5869 | 511.0 | 454.3 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 25.71 | 45.23 | -30.02 | 52.13 | 0.5733 | 673.0 | 584.2 | |
| 0.00 | 1.84 | 0.00 | 1.12 | 26.53 | 44.33 | -30.92 | 51.57 | 0.5890 | 593.0 | 491.0 | |
| 0.00 | 1.57 | 0.00 | 0.96 | 26.20 | 44.12 | -31.13 | 52.22 | 0.5891 | 663.0 | 629.3 | |
| 0.00 | 1.66 | 0.00 | 1.02 | 26.45 | 43.97 | -31.29 | 51.97 | 0.5925 | 800.0 | 719.5 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 26.16 | 43.90 | -31.35 | 52.45 | 0.5913 | 637.0 | 579.1 | |
| 0.00 | 2.80 | 0.00 | 1.72 | 26.44 | 43.74 | -31.52 | 52.15 | 0.5950 | 732.0 | 629.8 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 26.75 | 43.60 | -31.65 | 51.79 | 0.5986 | 583.0 | 480.8 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 26.27 | 43.63 | -31.62 | 52.48 | 0.5951 | 590.0 | 472.7 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 26.08 | 43.69 | -31.57 | 52.72 | 0.5931 | 624.0 | 451.6 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 26.57 | 43.22 | -32.03 | 52.32 | 0.6016 | 580.0 | 455.3 | |
| 0.00 | 1.84 | 0.00 | 1.14 | 26.66 | 43.00 | -32.26 | 52.36 | 0.6046 | 592.0 | 424.2 | |
| 0.00 | 1.57 | 0.00 | 0.93 | 20.70 | 44.57 | -30.69 | 60.68 | 0.5497 | 669.0 | 429.7 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 29.24 | 41.99 | -33.26 | 49.40 | 0.6326 | 601.0 | 501.3 | |
| 0.00 | 2.27 | 0.00 | 1.40 | 23.25 | 41.82 | -33.43 | 58.27 | 0.5974 | 784.0 | 645.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
