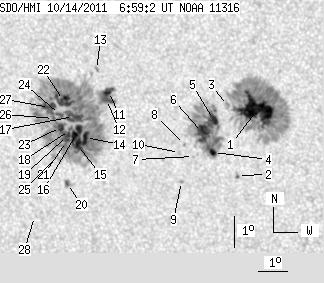

SDO HMI 2011-10-14 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 165.40 | 841.54 | 96.66 | 491.83 | -12.09 | 48.79 | -26.47 | 124.68 | 0.5307 | -6.4 | -63.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.64 | 259.67 | 28.59 | 146.45 | -11.69 | 52.54 | -22.71 | 127.98 | 0.4817 | 1139.4 | 466.7 | |
| 0.44 | 1.84 | 0.25 | 1.06 | -13.78 | 51.70 | -23.55 | 130.31 | 0.5109 | 759.0 | 776.8 | |
| 0.00 | 2.89 | 0.00 | 1.64 | -11.58 | 51.58 | -23.67 | 126.65 | 0.4922 | 788.0 | 661.1 | |
| 3.50 | 113.70 | 2.02 | 65.34 | -13.08 | 50.97 | -24.29 | 128.37 | 0.5130 | -897.0 | 252.3 | |
| 6.82 | -4.00 | 3.90 | -4.00 | -12.04 | 51.07 | -24.18 | 126.82 | 0.5025 | 1006.3 | 999999 | |
| 13.73 | -4.00 | 7.90 | -4.00 | -12.47 | 50.66 | -24.59 | 127.05 | 0.5112 | 849.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -13.24 | 50.27 | -24.98 | 127.84 | 0.5226 | -391.0 | -384.5 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -12.87 | 50.01 | -25.24 | 126.98 | 0.5225 | 613.0 | 437.2 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -14.06 | 49.77 | -25.48 | 128.53 | 0.5356 | 678.0 | 626.5 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -13.13 | 49.81 | -25.44 | 127.17 | 0.5271 | 555.0 | 349.3 | |
| 6.30 | 446.40 | 3.70 | 267.13 | -11.33 | 47.57 | -27.68 | 122.07 | 0.5396 | 647.7 | -445.5 | |
| 7.52 | -11.00 | 4.43 | -11.00 | -11.58 | 47.48 | -27.77 | 122.39 | 0.5427 | -481.3 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.08 | -10.66 | 47.23 | -28.02 | 120.67 | 0.5390 | 595.0 | 399.9 | |
| 5.34 | -11.00 | 3.19 | -11.00 | -12.82 | 46.60 | -28.65 | 123.50 | 0.5628 | -1259.6 | 999999 | |
| 6.30 | -11.00 | 3.78 | -11.00 | -13.09 | 46.32 | -28.93 | 123.65 | 0.5682 | -929.4 | 999999 | |
| 10.76 | -11.00 | 6.45 | -11.00 | -12.71 | 46.30 | -28.95 | 123.06 | 0.5656 | -1129.9 | 999999 | |
| 13.64 | -11.00 | 8.16 | -11.00 | -12.18 | 46.26 | -28.99 | 122.21 | 0.5621 | -1117.3 | 999999 | |
| 1.75 | -11.00 | 1.05 | -11.00 | -12.63 | 46.07 | -29.19 | 122.72 | 0.5678 | -934.7 | 999999 | |
| 2.10 | -11.00 | 1.26 | -11.00 | -12.79 | 45.97 | -29.28 | 122.89 | 0.5701 | -897.7 | 999999 | |
| 2.27 | 4.11 | 1.39 | 2.50 | -14.32 | 45.76 | -29.49 | 124.96 | 0.5842 | -711.6 | -575.6 | |
| 1.22 | -11.00 | 0.74 | -11.00 | -12.98 | 45.91 | -29.34 | 123.12 | 0.5723 | -719.5 | 999999 | |
| 13.91 | -11.00 | 8.31 | -11.00 | -11.69 | 45.97 | -29.28 | 121.20 | 0.5622 | -1081.5 | 999999 | |
| 3.24 | -11.00 | 1.95 | -11.00 | -12.55 | 45.76 | -29.49 | 122.33 | 0.5709 | -944.3 | 999999 | |
| 3.06 | -11.00 | 1.84 | -11.00 | -12.14 | 45.77 | -29.48 | 121.72 | 0.5678 | -960.3 | 999999 | |
| 0.00 | 5.86 | 0.00 | 3.56 | -13.51 | 45.49 | -29.76 | 123.53 | 0.5813 | -13.0 | 53.6 | |
| 1.14 | -11.00 | 0.69 | -11.00 | -12.28 | 45.55 | -29.71 | 121.74 | 0.5716 | -611.8 | 999999 | |
| 11.72 | -11.00 | 7.06 | -11.00 | -11.94 | 45.45 | -29.81 | 121.13 | 0.5703 | -741.0 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -15.45 | 44.41 | -30.85 | 125.36 | 0.6083 | -288.0 | -404.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
