SDO HMI 2011-10-14 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.41 | 146.31 | 23.55 | 109.85 | -14.83 | 119.12 | 44.42 | 244.23 | 0.7533 | 251.1 | 176.3 | |
|
previous
or next observation for the same group /

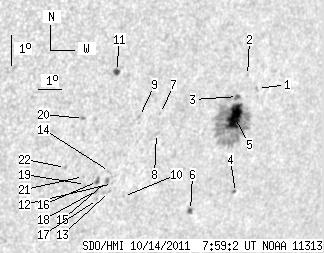

back to the solar disc SDO HMI 2011-10-14 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 1.07 | -13.83 | 120.71 | 46.00 | 246.24 | 0.7656 | 657.0 | 512.6 | |
| 0.00 | 0.44 | 0.00 | 0.33 | -13.37 | 120.15 | 45.45 | 246.55 | 0.7580 | 508.0 | 440.6 | |
| 1.14 | 3.24 | 0.86 | 2.45 | -14.02 | 119.87 | 45.17 | 245.63 | 0.7577 | 768.8 | 716.5 | |
| 0.44 | 1.31 | 0.34 | 1.03 | -17.14 | 120.68 | 45.98 | 242.22 | 0.7789 | 624.2 | 273.0 | |
| 22.83 | 112.99 | 17.35 | 85.86 | -14.65 | 119.91 | 45.20 | 244.86 | 0.7607 | 930.4 | 294.7 | |
| 2.19 | 2.89 | 1.67 | 2.20 | -17.58 | 118.81 | 44.11 | 240.77 | 0.7627 | -459.7 | -299.5 | |
| 0.00 | 0.96 | 0.00 | 0.69 | -14.31 | 116.65 | 41.95 | 243.67 | 0.7250 | -474.0 | -378.6 | |
| 0.00 | 1.92 | 0.00 | 1.39 | -14.95 | 116.64 | 41.93 | 242.86 | 0.7279 | -555.0 | -461.9 | |
| 0.00 | 1.49 | 0.00 | 1.05 | -14.35 | 115.79 | 41.09 | 243.16 | 0.7159 | -715.0 | -527.0 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -16.90 | 115.76 | 41.05 | 239.92 | 0.7285 | -325.0 | -281.2 | |
| 2.89 | 3.32 | 1.98 | 2.28 | -12.84 | 114.55 | 39.84 | 244.45 | 0.6947 | 799.8 | 616.8 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -16.44 | 115.18 | 40.48 | 240.16 | 0.7201 | -539.0 | -443.8 | |
| 0.00 | 1.40 | 0.00 | 1.00 | -16.70 | 115.13 | 40.42 | 239.81 | 0.7208 | -409.0 | -334.2 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -16.04 | 114.96 | 40.26 | 240.54 | 0.7156 | -731.0 | -662.0 | |
| 0.00 | 2.19 | 0.00 | 1.55 | -16.33 | 114.95 | 40.25 | 240.17 | 0.7171 | -840.0 | -701.5 | |
| 1.92 | 2.80 | 1.35 | 1.97 | -16.34 | 114.54 | 39.84 | 239.92 | 0.7128 | -756.0 | -599.9 | |
| 0.00 | 1.14 | 0.00 | 0.81 | -16.93 | 114.69 | 39.99 | 239.27 | 0.7176 | -530.0 | -457.0 | |
| 0.00 | 1.92 | 0.00 | 1.36 | -16.63 | 114.58 | 39.87 | 239.57 | 0.7147 | -585.0 | -601.5 | |
| 0.00 | 0.52 | 0.00 | 0.37 | -16.40 | 114.07 | 39.37 | 239.56 | 0.7081 | -690.0 | -626.3 | |
| 0.00 | 1.40 | 0.00 | 0.95 | -14.25 | 113.51 | 38.81 | 241.99 | 0.6903 | -709.0 | -630.6 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -16.13 | 113.93 | 39.22 | 239.81 | 0.7051 | -611.0 | -559.1 | |
| 0.00 | 1.57 | 0.00 | 1.08 | -15.79 | 113.13 | 38.42 | 239.75 | 0.6946 | -707.0 | -484.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
