SDO HMI 2011-10-14 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.11 | 443.69 | 48.16 | 323.77 | 23.27 | 119.76 | 45.60 | 296.45 | 0.7354 | -972.5 | -342.7 | |
|
previous
or next observation for the same group /

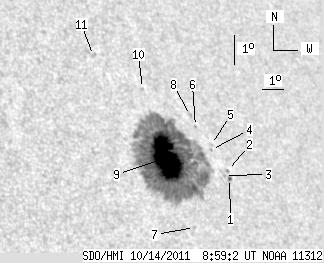

back to the solar disc SDO HMI 2011-10-14 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.05 | 1.49 | 0.80 | 1.13 | 22.40 | 122.35 | 48.19 | 294.59 | 0.7601 | 507.2 | 447.2 | |
| 0.00 | 0.87 | 0.00 | 0.66 | 22.65 | 122.37 | 48.21 | 294.91 | 0.7609 | 377.0 | 295.8 | |
| 0.00 | 0.96 | 0.00 | 0.73 | 22.51 | 122.16 | 48.00 | 294.78 | 0.7584 | 406.0 | 399.5 | |
| 0.00 | 1.14 | 0.00 | 0.86 | 23.36 | 121.92 | 47.76 | 295.93 | 0.7581 | 554.0 | 381.4 | |
| 0.00 | 0.35 | 0.00 | 0.27 | 23.51 | 121.99 | 47.84 | 296.10 | 0.7592 | 407.0 | 392.0 | |
| 0.00 | 0.61 | 0.00 | 0.46 | 24.12 | 121.51 | 47.35 | 297.03 | 0.7559 | -196.0 | -157.6 | |
| 0.00 | 1.40 | 0.00 | 1.02 | 21.02 | 120.09 | 45.93 | 293.36 | 0.7329 | 289.0 | 236.8 | |
| 0.00 | 1.92 | 0.00 | 1.45 | 24.48 | 121.44 | 47.28 | 297.51 | 0.7562 | 469.0 | 382.6 | |
| 65.06 | 431.98 | 47.36 | 315.04 | 23.26 | 119.73 | 45.57 | 296.44 | 0.7350 | -1208.9 | -356.1 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 25.47 | 119.63 | 45.47 | 299.38 | 0.7409 | -465.0 | -413.7 | |
| 0.00 | 2.10 | 0.00 | 1.51 | 26.66 | 117.90 | 43.74 | 301.56 | 0.7275 | -582.0 | -432.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
