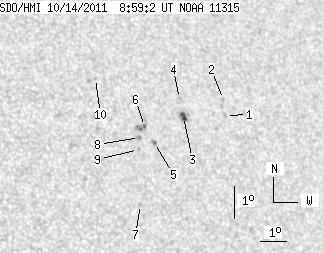

SDO HMI 2011-10-14 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.81 | 20.37 | 3.02 | 12.74 | 20.21 | 109.96 | 35.80 | 295.77 | 0.6116 | 52.7 | 267.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 1.01 | 20.38 | 112.39 | 38.23 | 294.97 | 0.6422 | -471.0 | -472.1 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 20.88 | 112.46 | 38.30 | 295.69 | 0.6449 | -604.0 | -510.2 | |
| 3.67 | 4.81 | 2.32 | 3.04 | 20.45 | 110.72 | 36.56 | 295.79 | 0.6221 | -895.1 | -768.0 | |
| 0.00 | 1.31 | 0.00 | 0.83 | 21.01 | 110.72 | 36.56 | 296.65 | 0.6244 | -349.0 | -385.4 | |
| 0.00 | 2.01 | 0.00 | 1.25 | 19.72 | 109.38 | 35.22 | 295.25 | 0.6025 | 735.0 | 591.8 | |
| 1.14 | 5.42 | 0.70 | 3.35 | 20.23 | 109.12 | 34.97 | 296.18 | 0.6014 | 578.8 | 783.7 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 17.86 | 108.40 | 34.24 | 292.67 | 0.5826 | 590.0 | 435.8 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 19.91 | 108.85 | 34.69 | 295.80 | 0.5966 | 990.0 | 827.2 | |
| 0.00 | 1.40 | 0.00 | 0.86 | 19.54 | 108.72 | 34.56 | 295.27 | 0.5934 | 655.0 | 559.1 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 21.81 | 107.64 | 33.48 | 299.48 | 0.5905 | 706.0 | 563.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
