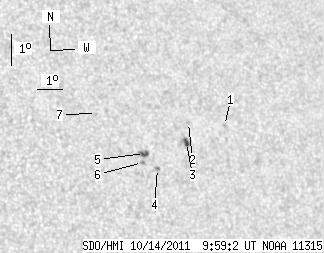

SDO HMI 2011-10-14 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.61 | 16.26 | 4.78 | 10.23 | 20.36 | 109.89 | 36.28 | 295.78 | 0.6182 | 141.7 | 20.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.68 | 20.87 | 112.39 | 38.78 | 295.49 | 0.6507 | -639.0 | -490.6 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 21.05 | 110.98 | 37.37 | 296.36 | 0.6344 | -616.0 | -479.4 | |
| 3.24 | 5.60 | 2.06 | 3.56 | 20.45 | 110.72 | 37.11 | 295.54 | 0.6289 | -860.7 | -711.4 | |
| 0.00 | 1.57 | 0.00 | 0.98 | 19.72 | 109.37 | 35.76 | 295.00 | 0.6093 | 700.0 | 603.0 | |
| 4.37 | 4.81 | 2.72 | 2.99 | 20.21 | 108.99 | 35.38 | 295.95 | 0.6065 | 791.4 | 771.8 | |
| 0.00 | 1.75 | 0.00 | 1.08 | 19.93 | 108.84 | 35.23 | 295.59 | 0.6035 | 870.0 | 702.0 | |
| 0.00 | 0.61 | 0.00 | 0.38 | 21.54 | 107.47 | 33.86 | 298.83 | 0.5938 | 691.0 | 581.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
