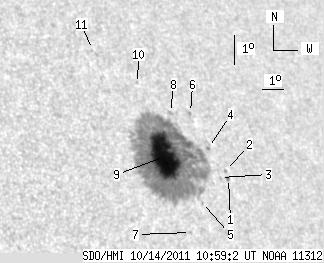

SDO HMI 2011-10-14 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.18 | 447.87 | 54.30 | 332.99 | 23.27 | 119.75 | 46.69 | 296.12 | 0.7468 | -916.6 | -300.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 1.66 | 1.15 | 1.29 | 22.37 | 122.41 | 49.34 | 294.27 | 0.7718 | 469.9 | 534.0 | |
| 0.00 | 0.96 | 0.00 | 0.75 | 22.63 | 122.38 | 49.32 | 294.60 | 0.7721 | 341.0 | 268.3 | |
| 0.00 | 0.70 | 0.00 | 0.54 | 22.43 | 122.04 | 48.97 | 294.43 | 0.7682 | 380.0 | 337.1 | |
| 0.00 | 1.57 | 0.00 | 1.21 | 23.39 | 121.91 | 48.85 | 295.69 | 0.7692 | 528.0 | 441.0 | |
| 0.00 | 1.14 | 0.00 | 0.85 | 21.73 | 120.84 | 47.77 | 293.82 | 0.7543 | 263.0 | 198.0 | |
| 0.00 | 1.14 | 0.00 | 0.88 | 24.54 | 121.60 | 48.53 | 297.23 | 0.7689 | 438.0 | 402.8 | |
| 0.00 | 0.70 | 0.00 | 0.51 | 20.86 | 119.90 | 46.83 | 292.91 | 0.7423 | 337.0 | 252.1 | |
| 0.00 | 2.45 | 0.00 | 1.86 | 24.61 | 120.64 | 47.58 | 297.59 | 0.7596 | 499.0 | 263.0 | |
| 71.69 | 436.41 | 53.15 | 324.25 | 23.27 | 119.71 | 46.65 | 296.13 | 0.7464 | -1138.6 | -315.2 | |
| 0.00 | 0.79 | 0.00 | 0.59 | 25.62 | 119.55 | 46.49 | 299.23 | 0.7516 | -413.0 | -332.9 | |
| 0.00 | 0.35 | 0.00 | 0.26 | 26.83 | 118.01 | 44.94 | 301.32 | 0.7403 | -416.0 | -388.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
