SDO HMI 2011-10-14 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.01 | 139.47 | 20.90 | 108.16 | -14.78 | 119.31 | 46.25 | 245.16 | 0.7717 | 328.9 | 196.0 | |
|
previous
or next observation for the same group /

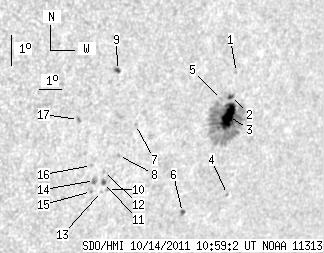

back to the solar disc SDO HMI 2011-10-14 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.88 | -13.27 | 119.94 | 46.88 | 247.30 | 0.7723 | 556.0 | 419.6 | |
| 2.10 | 4.90 | 1.64 | 3.81 | -14.02 | 119.87 | 46.80 | 246.36 | 0.7744 | 711.7 | 528.7 | |
| 18.97 | 110.94 | 14.88 | 87.01 | -14.66 | 119.95 | 46.89 | 245.62 | 0.7777 | 902.2 | 273.4 | |
| 0.00 | 1.05 | 0.00 | 0.85 | -17.22 | 120.70 | 47.64 | 242.92 | 0.7950 | 495.0 | 357.9 | |
| 0.00 | 1.49 | 0.00 | 1.15 | -14.09 | 119.48 | 46.42 | 246.11 | 0.7707 | 529.0 | 469.2 | |
| 1.66 | 2.10 | 1.31 | 1.65 | -17.65 | 118.78 | 45.72 | 241.51 | 0.7785 | -515.4 | -540.4 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -14.61 | 115.87 | 42.80 | 243.75 | 0.7354 | -453.0 | -525.6 | |
| 0.00 | 0.87 | 0.00 | 0.64 | -15.56 | 115.39 | 42.32 | 242.31 | 0.7349 | -616.0 | -575.6 | |
| 2.36 | 2.80 | 1.67 | 1.97 | -12.82 | 114.72 | 41.65 | 245.45 | 0.7148 | 765.7 | 540.6 | |
| 0.00 | 1.05 | 0.00 | 0.77 | -16.64 | 115.21 | 42.14 | 240.88 | 0.7383 | -479.0 | -373.0 | |
| 1.92 | 2.19 | 1.40 | 1.59 | -16.39 | 114.97 | 41.91 | 241.05 | 0.7347 | -551.1 | -533.7 | |
| 0.00 | 1.40 | 0.00 | 1.01 | -16.04 | 114.88 | 41.81 | 241.44 | 0.7319 | -451.0 | -483.9 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -16.68 | 114.97 | 41.90 | 240.69 | 0.7360 | -433.0 | -337.6 | |
| 0.00 | 3.41 | 0.00 | 2.46 | -16.30 | 114.57 | 41.51 | 240.94 | 0.7300 | -778.0 | -609.5 | |
| 0.00 | 1.14 | 0.00 | 0.82 | -16.65 | 114.54 | 41.47 | 240.48 | 0.7315 | -684.0 | -587.5 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -15.80 | 114.32 | 41.26 | 241.42 | 0.7249 | -636.0 | -526.3 | |
| 0.00 | 1.84 | 0.00 | 1.28 | -14.28 | 113.43 | 40.36 | 242.87 | 0.7076 | -653.0 | -522.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
