SDO HMI 2011-10-14 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.39 | 432.91 | 60.06 | 235.75 | 10.44 | 48.93 | -24.13 | 77.74 | 0.4125 | -54.5 | 45.9 | |
|
previous
or next observation for the same group /

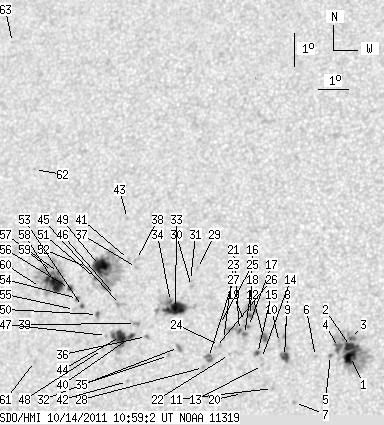

back to the solar disc SDO HMI 2011-10-14 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.36 | 94.42 | 5.94 | 49.36 | 9.32 | 54.56 | -18.51 | 78.39 | 0.3212 | -1226.6 | -501.5 | |
| 7.43 | -1.00 | 3.89 | -1.00 | 9.62 | 54.54 | -18.52 | 77.48 | 0.3223 | -1059.2 | 999999 | |
| 1.57 | -1.00 | 0.82 | -1.00 | 9.86 | 54.52 | -18.54 | 76.75 | 0.3232 | -882.4 | 999999 | |
| 4.11 | -1.00 | 2.15 | -1.00 | 9.58 | 54.16 | -18.91 | 77.80 | 0.3283 | -735.0 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 9.33 | 53.91 | -19.15 | 78.67 | 0.3316 | -661.0 | -494.8 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 9.28 | 53.44 | -19.63 | 79.01 | 0.3392 | -784.0 | -567.9 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 7.88 | 52.84 | -20.23 | 83.28 | 0.3464 | -796.0 | -609.4 | |
| 5.94 | 9.27 | 3.15 | 4.91 | 9.25 | 52.44 | -20.63 | 79.51 | 0.3552 | -938.0 | -817.6 | |
| 0.00 | 1.75 | 0.00 | 0.93 | 9.85 | 52.40 | -20.66 | 77.86 | 0.3572 | -873.0 | -713.3 | |
| 0.00 | 2.45 | 0.00 | 1.30 | 9.66 | 52.25 | -20.81 | 78.44 | 0.3591 | -856.0 | -730.4 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 8.28 | 52.10 | -20.96 | 82.33 | 0.3587 | -779.0 | -668.5 | |
| 4.02 | 5.16 | 2.14 | 2.75 | 9.79 | 51.72 | -21.34 | 78.30 | 0.3679 | -866.6 | -747.3 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 8.95 | 51.74 | -21.32 | 80.57 | 0.3657 | -554.0 | -459.7 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 9.16 | 51.70 | -21.37 | 80.02 | 0.3668 | -653.0 | -529.7 | |
| 1.49 | 2.10 | 0.79 | 1.12 | 9.30 | 51.56 | -21.51 | 79.67 | 0.3694 | -690.3 | -618.1 | |
| 1.75 | 11.54 | 0.93 | 6.17 | 10.43 | 51.25 | -21.81 | 76.79 | 0.3770 | -632.8 | 156.8 | |
| 0.87 | 21.33 | 0.47 | 11.42 | 10.10 | 51.21 | -21.86 | 77.68 | 0.3768 | -873.4 | -606.7 | |
| 1.84 | -17.00 | 0.98 | -17.00 | 9.86 | 51.09 | -21.97 | 78.37 | 0.3779 | -911.0 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 10.25 | 51.07 | -22.00 | 77.36 | 0.3794 | -673.0 | -514.9 | |
| 0.00 | 3.15 | 0.00 | 1.68 | 8.09 | 51.14 | -21.92 | 83.05 | 0.3740 | -632.0 | -444.5 | |
| 1.40 | -17.00 | 0.75 | -17.00 | 9.97 | 50.92 | -22.14 | 78.14 | 0.3809 | -799.6 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 9.24 | 50.64 | -22.42 | 80.14 | 0.3837 | -526.0 | -308.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 9.68 | 50.42 | -22.65 | 79.08 | 0.3882 | -615.0 | -470.0 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 9.50 | 50.30 | -22.76 | 79.59 | 0.3897 | -694.0 | -435.6 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 10.12 | 50.25 | -22.81 | 78.01 | 0.3918 | -549.0 | -401.3 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 9.43 | 50.17 | -22.89 | 79.80 | 0.3916 | -317.0 | -266.0 | |
| 0.00 | 5.25 | 0.00 | 2.83 | 9.12 | 49.96 | -23.10 | 80.64 | 0.3943 | 1008.0 | 855.8 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 8.82 | 49.82 | -23.24 | 81.45 | 0.3961 | 872.0 | 620.0 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 11.77 | 49.39 | -23.68 | 74.33 | 0.4101 | -699.0 | -568.1 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 11.23 | 49.23 | -23.83 | 75.71 | 0.4107 | -842.0 | -616.9 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 11.40 | 49.19 | -23.88 | 75.31 | 0.4120 | -704.0 | -566.8 | |
| 0.00 | 3.32 | 0.00 | 1.80 | 9.38 | 48.95 | -24.11 | 80.28 | 0.4107 | -819.0 | -719.4 | |
| 17.31 | 41.18 | 9.42 | 22.44 | 10.54 | 48.76 | -24.30 | 77.54 | 0.4161 | -933.9 | -209.3 | |
| 0.61 | -33.00 | 0.33 | -33.00 | 10.75 | 48.58 | -24.49 | 77.13 | 0.4195 | -649.3 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.90 | 9.13 | 48.64 | -24.43 | 80.97 | 0.4152 | -759.0 | -592.6 | |
| 0.00 | 1.92 | 0.00 | 1.05 | 9.67 | 47.86 | -25.20 | 79.90 | 0.4282 | 860.0 | 711.8 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 11.72 | 47.34 | -25.72 | 75.39 | 0.4411 | 884.0 | 679.9 | |
| 0.00 | 1.92 | 0.00 | 1.06 | 11.96 | 47.31 | -25.75 | 74.86 | 0.4421 | 601.0 | 599.9 | |
| 0.00 | 4.02 | 0.00 | 2.21 | 10.04 | 47.46 | -25.60 | 79.14 | 0.4351 | 927.0 | 698.2 | |
| 2.88 | 26.66 | 1.59 | 14.71 | 9.64 | 47.36 | -25.70 | 80.08 | 0.4359 | 852.3 | 630.7 | |
| 0.00 | 2.10 | 0.00 | 1.16 | 11.94 | 47.04 | -26.02 | 75.00 | 0.4462 | 777.0 | 597.0 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 8.29 | 47.33 | -25.74 | 83.19 | 0.4346 | -729.0 | -533.0 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 13.17 | 46.87 | -26.19 | 72.39 | 0.4527 | 700.0 | 524.0 | |
| 8.57 | -40.00 | 4.72 | -40.00 | 9.63 | 46.99 | -26.07 | 80.21 | 0.4416 | 1042.0 | 999999 | |
| 0.00 | 3.41 | 0.00 | 1.88 | 10.58 | 46.90 | -26.16 | 78.08 | 0.4448 | 549.0 | 580.1 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 10.85 | 46.71 | -26.35 | 77.56 | 0.4483 | 754.0 | 619.6 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 9.64 | 46.51 | -26.55 | 80.30 | 0.4489 | 579.0 | 536.3 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 9.21 | 46.41 | -26.65 | 81.26 | 0.4498 | 694.0 | 504.8 | |
| 13.64 | 81.13 | 7.60 | 45.09 | 11.72 | 46.08 | -26.99 | 75.87 | 0.4601 | 1024.4 | 530.0 | |
| 2.01 | 2.62 | 1.12 | 1.46 | 10.25 | 46.15 | -26.91 | 79.03 | 0.4555 | 733.3 | 669.6 | |
| 1.40 | -49.00 | 0.78 | -49.00 | 11.32 | 45.98 | -27.08 | 76.75 | 0.4605 | 852.4 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 11.64 | 45.67 | -27.39 | 76.18 | 0.4659 | 609.0 | 484.9 | |
| 1.57 | 1.75 | 0.88 | 0.98 | 10.47 | 45.62 | -27.44 | 78.71 | 0.4641 | 794.6 | 549.0 | |
| 1.31 | 1.92 | 0.73 | 1.08 | 10.70 | 45.43 | -27.64 | 78.27 | 0.4675 | 831.7 | 768.7 | |
| 0.00 | 1.92 | 0.00 | 1.08 | 10.36 | 45.36 | -27.71 | 79.00 | 0.4679 | 621.0 | 565.1 | |
| 2.62 | 4.11 | 1.47 | 2.31 | 10.98 | 45.12 | -27.94 | 77.75 | 0.4727 | 876.1 | 579.3 | |
| 0.87 | 64.60 | 0.49 | 36.51 | 11.44 | 44.69 | -28.37 | 76.92 | 0.4801 | 790.5 | 311.5 | |
| 14.95 | -57.00 | 8.43 | -57.00 | 11.11 | 44.62 | -28.44 | 77.63 | 0.4804 | 1010.2 | 999999 | |
| 0.87 | -57.00 | 0.49 | -57.00 | 11.46 | 44.48 | -28.58 | 76.94 | 0.4833 | 596.3 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.84 | 10.96 | 44.12 | -28.95 | 78.07 | 0.4876 | 56.0 | 75.5 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 8.74 | 44.12 | -28.94 | 82.64 | 0.4842 | 615.0 | 535.6 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 14.50 | 43.46 | -29.61 | 71.29 | 0.5070 | 549.0 | 441.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 18.30 | 42.00 | -31.06 | 65.01 | 0.5426 | 613.0 | 520.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
