SDO HMI 2011-10-14 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.64 | 146.16 | 19.45 | 114.36 | -14.77 | 119.21 | 46.70 | 245.38 | 0.7761 | 244.7 | 187.4 | |
|
previous
or next observation for the same group /

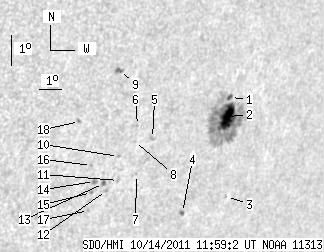

back to the solar disc SDO HMI 2011-10-14 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.36 | 120.27 | 1.86 | 95.28 | -14.04 | 119.91 | 47.40 | 246.59 | 0.7804 | 687.0 | 283.7 | |
| 19.14 | -1.00 | 15.18 | -1.00 | -14.65 | 119.94 | 47.43 | 245.87 | 0.7830 | 886.9 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.65 | -17.27 | 120.73 | 48.22 | 243.12 | 0.8006 | 645.0 | 499.2 | |
| 1.57 | 1.84 | 1.25 | 1.46 | -17.63 | 118.81 | 46.30 | 241.81 | 0.7840 | -520.2 | -455.3 | |
| 0.00 | 2.71 | 0.00 | 2.03 | -15.10 | 116.72 | 44.21 | 243.85 | 0.7523 | -546.0 | -427.9 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -14.63 | 115.96 | 43.44 | 244.05 | 0.7423 | -717.0 | -618.8 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -16.22 | 116.34 | 43.82 | 242.28 | 0.7534 | -389.0 | -308.1 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -15.14 | 115.96 | 43.44 | 243.42 | 0.7446 | -399.0 | -515.3 | |
| 0.00 | 3.50 | 0.00 | 2.49 | -12.81 | 114.78 | 42.27 | 245.78 | 0.7215 | 900.0 | 694.2 | |
| 0.00 | 1.22 | 0.00 | 0.90 | -15.57 | 115.39 | 42.87 | 242.58 | 0.7407 | -545.0 | -471.1 | |
| 0.00 | 2.01 | 0.00 | 1.49 | -16.36 | 115.60 | 43.08 | 241.73 | 0.7465 | -402.0 | -259.3 | |
| 0.00 | 1.75 | 0.00 | 1.29 | -16.65 | 115.17 | 42.65 | 241.14 | 0.7435 | -432.0 | -406.9 | |
| 1.57 | 2.10 | 1.16 | 1.54 | -16.41 | 114.97 | 42.46 | 241.33 | 0.7404 | -590.1 | -543.0 | |
| 0.00 | 3.41 | 0.00 | 2.48 | -16.31 | 114.57 | 42.05 | 241.23 | 0.7357 | -808.0 | -645.1 | |
| 0.00 | 1.14 | 0.00 | 0.83 | -16.67 | 114.54 | 42.02 | 240.78 | 0.7371 | -658.0 | -574.1 | |
| 0.00 | 0.87 | 0.00 | 0.63 | -15.78 | 114.30 | 41.79 | 241.74 | 0.7303 | -682.0 | -570.0 | |
| 0.00 | 0.96 | 0.00 | 0.71 | -17.25 | 114.57 | 42.06 | 240.08 | 0.7404 | -562.0 | -398.7 | |
| 0.00 | 1.84 | 0.00 | 1.29 | -14.32 | 113.46 | 40.94 | 243.14 | 0.7141 | -626.0 | -493.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
