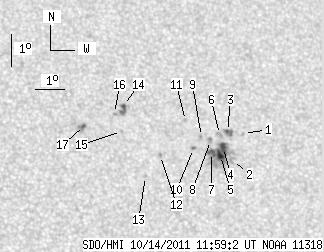

SDO HMI 2011-10-14 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.14 | 75.36 | 9.70 | 42.63 | 19.90 | 98.61 | 26.09 | 301.35 | 0.4862 | -472.3 | -308.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.60 | 20.13 | 100.19 | 27.68 | 300.45 | 0.5080 | 594.0 | 425.2 | |
| 0.00 | 3.85 | 0.00 | 2.19 | 19.32 | 99.65 | 27.13 | 299.38 | 0.4959 | -110.0 | -43.8 | |
| 0.79 | 5.59 | 0.45 | 3.20 | 20.21 | 99.64 | 27.12 | 301.04 | 0.5013 | -847.2 | -652.7 | |
| 5.16 | 41.08 | 2.94 | 23.33 | 19.73 | 99.40 | 26.89 | 300.33 | 0.4952 | -837.2 | -553.7 | |
| 4.20 | -4.00 | 2.38 | -4.00 | 19.49 | 99.25 | 26.74 | 300.00 | 0.4917 | -1115.4 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.59 | 20.13 | 99.33 | 26.82 | 301.13 | 0.4969 | -631.0 | -663.2 | |
| 4.28 | -4.00 | 2.43 | -4.00 | 19.60 | 98.95 | 26.44 | 300.44 | 0.4885 | -990.1 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.44 | 19.96 | 98.98 | 26.47 | 301.10 | 0.4912 | -896.0 | -729.7 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 20.10 | 98.69 | 26.17 | 301.60 | 0.4883 | -653.0 | -493.3 | |
| 0.00 | 1.75 | 0.00 | 0.99 | 19.75 | 98.34 | 25.83 | 301.22 | 0.4814 | -813.0 | -699.8 | |
| 0.00 | 1.66 | 0.00 | 0.94 | 20.62 | 98.21 | 25.70 | 302.96 | 0.4857 | -62.0 | -74.8 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 19.58 | 97.15 | 24.64 | 301.94 | 0.4648 | -938.0 | -753.7 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 18.96 | 96.53 | 24.02 | 301.28 | 0.4523 | -658.0 | -517.2 | |
| 1.49 | 5.33 | 0.83 | 2.97 | 21.17 | 96.12 | 23.61 | 305.96 | 0.4633 | 725.3 | 885.9 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 20.37 | 95.92 | 23.41 | 304.65 | 0.4546 | 645.0 | 540.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 20.94 | 95.77 | 23.26 | 305.88 | 0.4570 | 829.0 | 704.4 | |
| 1.22 | 4.11 | 0.67 | 2.26 | 20.61 | 94.68 | 22.16 | 306.42 | 0.4406 | 885.3 | 884.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
