SDO HMI 2011-10-14 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.41 | 443.78 | 55.58 | 336.54 | 23.27 | 119.79 | 47.82 | 295.81 | 0.7585 | -931.4 | -299.5 | |
|
previous
or next observation for the same group /

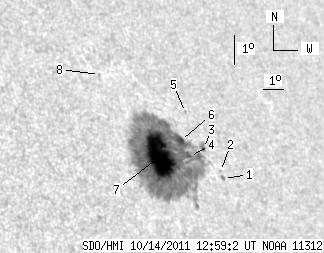

back to the solar disc SDO HMI 2011-10-14 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.01 | 0.00 | 1.59 | 22.34 | 122.40 | 50.43 | 293.99 | 0.7827 | 613.0 | 454.9 | |
| 0.00 | 0.70 | 0.00 | 0.55 | 22.57 | 122.36 | 50.39 | 294.28 | 0.7827 | 451.0 | 363.9 | |
| 1.40 | 439.06 | 1.10 | 332.86 | 23.33 | 121.88 | 49.91 | 295.36 | 0.7797 | 333.3 | -306.6 | |
| 0.87 | -3.00 | 0.68 | -3.00 | 23.14 | 121.08 | 49.11 | 295.31 | 0.7713 | -397.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.76 | 24.51 | 121.58 | 49.62 | 296.91 | 0.7795 | 375.0 | 341.4 | |
| 3.32 | -3.00 | 2.57 | -3.00 | 23.66 | 120.89 | 48.92 | 296.02 | 0.7706 | 491.4 | 999999 | |
| 67.82 | -3.00 | 51.23 | -3.00 | 23.25 | 119.65 | 47.69 | 295.82 | 0.7571 | -1126.9 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.78 | 25.99 | 118.10 | 46.13 | 299.83 | 0.7493 | -560.0 | -401.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
