SDO HMI 2011-10-14 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.94 | 138.76 | 19.19 | 110.08 | -14.75 | 119.36 | 47.39 | 245.72 | 0.7829 | 339.4 | 194.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

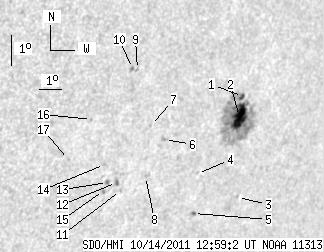

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.92 | 118.24 | 1.53 | 94.75 | -14.02 | 119.90 | 47.94 | 246.84 | 0.7857 | 681.5 | 278.1 | |
| 20.71 | -1.00 | 16.61 | -1.00 | -14.66 | 119.95 | 47.98 | 246.10 | 0.7884 | 865.1 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.65 | -17.31 | 120.71 | 48.75 | 243.30 | 0.8056 | 529.0 | 427.2 | |
| 0.00 | 0.87 | 0.00 | 0.69 | -16.36 | 118.53 | 46.57 | 243.44 | 0.7813 | 420.0 | 382.8 | |
| 1.31 | 1.57 | 1.05 | 1.26 | -17.67 | 118.78 | 46.81 | 242.01 | 0.7890 | -495.9 | -359.0 | |
| 0.00 | 2.80 | 0.00 | 2.11 | -15.14 | 116.70 | 44.74 | 244.06 | 0.7579 | -519.0 | -397.3 | |
| 0.00 | 0.96 | 0.00 | 0.71 | -14.64 | 115.96 | 44.00 | 244.32 | 0.7481 | -724.0 | -605.1 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -16.28 | 116.19 | 44.23 | 242.41 | 0.7577 | -333.0 | -282.0 | |
| 0.00 | 0.87 | 0.00 | 0.63 | -12.80 | 114.98 | 43.01 | 246.16 | 0.7296 | 560.0 | 527.9 | |
| 0.00 | 2.10 | 0.00 | 1.51 | -12.75 | 114.76 | 42.79 | 246.12 | 0.7270 | 798.0 | 656.7 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -16.66 | 115.22 | 43.25 | 241.45 | 0.7496 | -388.0 | -348.3 | |
| 0.00 | 2.62 | 0.00 | 1.94 | -16.38 | 114.97 | 43.00 | 241.66 | 0.7458 | -668.0 | -540.2 | |
| 0.00 | 1.57 | 0.00 | 1.16 | -16.35 | 114.58 | 42.61 | 241.48 | 0.7416 | -827.0 | -723.3 | |
| 0.00 | 1.22 | 0.00 | 0.89 | -15.75 | 114.29 | 42.32 | 242.07 | 0.7358 | -659.0 | -520.0 | |
| 0.00 | 1.92 | 0.00 | 1.41 | -16.60 | 114.47 | 42.51 | 241.12 | 0.7418 | -687.0 | -624.0 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -14.26 | 113.38 | 41.42 | 243.48 | 0.7189 | -625.0 | -559.6 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -15.48 | 112.72 | 40.76 | 241.55 | 0.7179 | -505.0 | -373.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
