SDO HMI 2011-10-14 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 157.93 | 835.65 | 89.60 | 474.65 | -12.15 | 48.88 | -23.09 | 128.51 | 0.4903 | -3.0 | -73.9 | |
|
previous
or next observation for the same group /

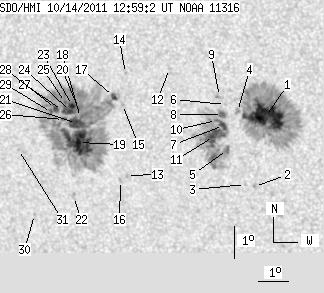

back to the solar disc SDO HMI 2011-10-14 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.86 | 262.62 | 28.07 | 144.77 | -11.68 | 52.54 | -19.43 | 132.33 | 0.4425 | 1110.6 | 460.5 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -13.91 | 51.99 | -19.97 | 135.15 | 0.4721 | 800.0 | 641.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -13.86 | 51.70 | -20.26 | 134.66 | 0.4747 | 596.0 | 466.9 | |
| 0.00 | 3.41 | 0.00 | 1.89 | -11.56 | 51.64 | -20.33 | 130.83 | 0.4518 | 766.0 | 608.1 | |
| 2.36 | 121.30 | 1.32 | 68.02 | -12.77 | 51.21 | -20.76 | 132.26 | 0.4689 | 516.7 | 99.7 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -11.35 | 51.26 | -20.71 | 129.96 | 0.4542 | 734.0 | 575.6 | |
| 4.81 | -5.00 | 2.68 | -5.00 | -12.02 | 51.14 | -20.82 | 130.93 | 0.4621 | 944.2 | 999999 | |
| 4.19 | -5.00 | 2.34 | -5.00 | -11.67 | 51.14 | -20.83 | 130.34 | 0.4588 | 955.9 | 999999 | |
| 0.00 | 2.97 | 0.00 | 1.65 | -11.11 | 51.08 | -20.88 | 129.30 | 0.4539 | 639.0 | 645.8 | |
| 0.96 | -5.00 | 0.54 | -5.00 | -11.87 | 50.93 | -21.04 | 130.38 | 0.4632 | 644.3 | 999999 | |
| 18.96 | -5.00 | 10.63 | -5.00 | -12.38 | 50.78 | -21.18 | 131.04 | 0.4698 | 831.2 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -10.30 | 49.51 | -22.46 | 125.86 | 0.4657 | 700.0 | 508.9 | |
| 0.00 | 1.49 | 0.00 | 0.86 | -13.73 | 47.75 | -24.21 | 129.43 | 0.5179 | -644.0 | -569.1 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -10.52 | 48.03 | -23.93 | 124.52 | 0.4861 | 642.0 | 500.7 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -11.49 | 47.85 | -24.12 | 125.96 | 0.4968 | -810.0 | -672.8 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -13.90 | 47.53 | -24.43 | 129.44 | 0.5219 | -630.0 | -558.5 | |
| 2.88 | 432.07 | 1.65 | 250.67 | -11.26 | 47.57 | -24.40 | 125.25 | 0.4981 | 683.0 | -427.9 | |
| 0.44 | -17.00 | 0.25 | -17.00 | -11.97 | 46.39 | -25.58 | 125.14 | 0.5186 | -900.4 | 999999 | |
| 45.71 | -17.00 | 26.60 | -17.00 | -12.76 | 46.23 | -25.73 | 126.24 | 0.5271 | -1011.3 | 999999 | |
| 0.70 | -17.00 | 0.40 | -17.00 | -11.69 | 46.35 | -25.62 | 124.65 | 0.5168 | -1114.2 | 999999 | |
| 13.20 | -17.00 | 7.65 | -17.00 | -12.16 | 46.23 | -25.74 | 125.29 | 0.5221 | -1149.1 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.34 | -14.49 | 45.86 | -26.11 | 128.47 | 0.5464 | -653.0 | -529.4 | |
| 2.36 | -17.00 | 1.37 | -17.00 | -11.60 | 46.15 | -25.81 | 124.31 | 0.5185 | -1206.4 | 999999 | |
| 3.41 | -17.00 | 1.98 | -17.00 | -11.79 | 46.06 | -25.90 | 124.53 | 0.5211 | -1082.5 | 999999 | |
| 0.79 | -17.00 | 0.46 | -17.00 | -11.52 | 45.92 | -26.04 | 123.94 | 0.5206 | -874.0 | 999999 | |
| 2.01 | -17.00 | 1.17 | -17.00 | -12.06 | 45.80 | -26.17 | 124.68 | 0.5265 | -870.3 | 999999 | |
| 0.35 | -17.00 | 0.20 | -17.00 | -11.77 | 45.79 | -26.17 | 124.22 | 0.5243 | -877.2 | 999999 | |
| 3.15 | -17.00 | 1.83 | -17.00 | -11.72 | 45.56 | -26.41 | 123.90 | 0.5267 | -831.3 | 999999 | |
| 0.79 | -17.00 | 0.46 | -17.00 | -11.86 | 45.41 | -26.56 | 123.97 | 0.5296 | -721.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -15.13 | 44.42 | -27.55 | 127.94 | 0.5683 | -718.0 | -581.7 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -13.08 | 44.13 | -27.83 | 124.63 | 0.5549 | -583.0 | -435.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
