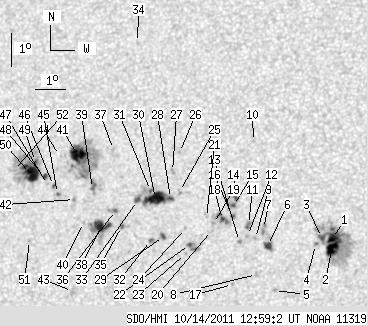

SDO HMI 2011-10-14 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.54 | 410.74 | 57.70 | 221.69 | 10.38 | 49.02 | -22.95 | 77.41 | 0.3939 | 21.9 | 3.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.98 | 99.98 | 2.59 | 51.91 | 9.53 | 54.60 | -17.37 | 77.10 | 0.3034 | -1086.2 | -540.1 | |
| 9.35 | -1.00 | 4.86 | -1.00 | 9.20 | 54.58 | -17.38 | 78.19 | 0.3026 | -1128.0 | 999999 | |
| 3.23 | -1.00 | 1.68 | -1.00 | 9.55 | 54.25 | -17.72 | 77.24 | 0.3091 | -747.5 | 999999 | |
| 0.00 | 1.84 | 0.00 | 0.96 | 9.33 | 54.07 | -17.90 | 78.03 | 0.3114 | -668.0 | -587.1 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 7.91 | 52.83 | -19.13 | 82.92 | 0.3286 | -877.0 | -744.3 | |
| 4.89 | 8.30 | 2.57 | 4.36 | 9.25 | 52.54 | -19.43 | 79.01 | 0.3359 | -956.9 | -792.3 | |
| 0.00 | 3.93 | 0.00 | 2.07 | 9.75 | 52.38 | -19.59 | 77.60 | 0.3398 | -709.0 | -756.8 | |
| 0.00 | 2.27 | 0.00 | 1.20 | 8.37 | 52.23 | -19.73 | 81.71 | 0.3391 | -740.0 | -551.3 | |
| 0.00 | 1.66 | 0.00 | 0.88 | 9.45 | 52.14 | -19.83 | 78.61 | 0.3428 | -774.0 | -586.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 12.35 | 51.87 | -20.10 | 70.62 | 0.3573 | -679.0 | -506.8 | |
| 0.00 | 3.85 | 0.00 | 2.03 | 9.86 | 51.89 | -20.08 | 77.54 | 0.3479 | -1003.0 | -868.8 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 9.53 | 51.88 | -20.09 | 78.49 | 0.3472 | -359.0 | -478.1 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 9.34 | 51.63 | -20.34 | 79.13 | 0.3507 | -841.0 | -727.3 | |
| 1.92 | 6.20 | 1.02 | 3.29 | 10.62 | 51.45 | -20.52 | 75.62 | 0.3572 | 589.1 | -222.0 | |
| 1.40 | -14.00 | 0.74 | -14.00 | 10.41 | 51.37 | -20.60 | 76.26 | 0.3578 | -689.2 | 999999 | |
| 1.49 | 1.75 | 0.79 | 0.93 | 10.08 | 51.36 | -20.61 | 77.17 | 0.3570 | -633.7 | -692.3 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 8.05 | 51.48 | -20.49 | 82.86 | 0.3508 | -663.0 | -559.5 | |
| 1.49 | 10.66 | 0.79 | 5.66 | 9.98 | 51.04 | -20.93 | 77.60 | 0.3618 | -905.9 | -729.2 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 9.85 | 50.75 | -21.21 | 78.08 | 0.3659 | -794.0 | -658.4 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 9.64 | 50.70 | -21.26 | 78.68 | 0.3662 | -672.0 | -509.0 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 10.02 | 50.51 | -21.45 | 77.72 | 0.3702 | -533.0 | -424.7 | |
| 1.40 | 7.17 | 0.75 | 3.83 | 9.19 | 50.01 | -21.95 | 80.12 | 0.3762 | 919.2 | 869.5 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 8.92 | 49.90 | -22.06 | 80.88 | 0.3775 | 666.0 | 501.5 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 9.66 | 49.85 | -22.11 | 78.92 | 0.3798 | -497.0 | -394.0 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 10.76 | 49.57 | -22.39 | 76.20 | 0.3871 | 537.0 | 520.3 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 11.93 | 49.48 | -22.49 | 73.30 | 0.3924 | -787.0 | -613.5 | |
| 0.00 | 2.71 | 0.00 | 1.46 | 11.35 | 49.29 | -22.67 | 74.84 | 0.3932 | -827.0 | -655.5 | |
| 2.01 | 40.99 | 1.08 | 22.14 | 10.54 | 49.29 | -22.67 | 76.88 | 0.3908 | 546.8 | -289.3 | |
| 2.10 | 4.37 | 1.13 | 2.35 | 9.40 | 49.15 | -22.82 | 79.85 | 0.3904 | -795.0 | -597.4 | |
| 15.91 | -28.00 | 8.58 | -28.00 | 10.52 | 48.80 | -23.17 | 77.14 | 0.3984 | -970.9 | 999999 | |
| 0.96 | -28.00 | 0.52 | -28.00 | 10.76 | 48.62 | -23.35 | 76.64 | 0.4019 | -540.1 | 999999 | |
| 1.40 | 3.06 | 0.75 | 1.65 | 9.26 | 48.73 | -23.24 | 80.32 | 0.3967 | -503.5 | -523.4 | |
| 2.71 | -28.00 | 1.47 | -28.00 | 10.44 | 48.21 | -23.76 | 77.58 | 0.4074 | -611.1 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 15.19 | 47.73 | -24.24 | 66.81 | 0.4328 | 705.0 | 607.6 | |
| 1.57 | 1.66 | 0.85 | 0.90 | 9.64 | 47.74 | -24.23 | 79.67 | 0.4129 | 873.6 | 886.0 | |
| 1.84 | 3.58 | 1.00 | 1.95 | 10.11 | 47.50 | -24.46 | 78.62 | 0.4176 | 918.9 | 777.7 | |
| 0.00 | 1.75 | 0.00 | 0.96 | 11.93 | 47.27 | -24.69 | 74.43 | 0.4261 | 348.0 | 436.5 | |
| 11.27 | 24.47 | 6.16 | 13.37 | 9.64 | 47.07 | -24.89 | 79.86 | 0.4234 | 1010.6 | 615.3 | |
| 0.52 | 6.55 | 0.29 | 3.60 | 10.73 | 46.68 | -25.29 | 77.44 | 0.4318 | 1030.8 | 826.8 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 9.70 | 46.46 | -25.50 | 79.87 | 0.4329 | 655.0 | 508.3 | |
| 12.67 | 76.73 | 7.00 | 42.27 | 11.73 | 46.08 | -25.89 | 75.41 | 0.4436 | 1116.8 | 562.1 | |
| 0.00 | 1.92 | 0.00 | 1.06 | 10.38 | 46.10 | -25.86 | 78.44 | 0.4398 | 918.0 | 755.8 | |
| 0.00 | 3.06 | 0.00 | 1.68 | 7.63 | 46.25 | -25.72 | 84.71 | 0.4338 | 737.0 | 505.4 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 11.67 | 45.47 | -26.50 | 75.78 | 0.4526 | 504.0 | 523.9 | |
| 0.96 | 1.14 | 0.53 | 0.63 | 10.53 | 45.51 | -26.45 | 78.27 | 0.4492 | 860.6 | 787.0 | |
| 1.14 | 1.49 | 0.63 | 0.82 | 10.77 | 45.35 | -26.61 | 77.81 | 0.4521 | 891.0 | 774.0 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 10.79 | 45.15 | -26.82 | 77.82 | 0.4553 | 629.0 | 547.2 | |
| 2.01 | 67.99 | 1.12 | 38.04 | 11.02 | 45.02 | -26.94 | 77.35 | 0.4577 | 870.6 | 296.1 | |
| 1.05 | -48.00 | 0.59 | -48.00 | 11.46 | 44.67 | -27.30 | 76.53 | 0.4641 | 813.9 | 999999 | |
| 18.27 | -48.00 | 10.21 | -48.00 | 11.09 | 44.54 | -27.43 | 77.36 | 0.4652 | 985.1 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 9.08 | 44.69 | -27.28 | 81.65 | 0.4593 | 690.0 | 516.6 | |
| 0.00 | 1.75 | 0.00 | 0.98 | 11.15 | 43.94 | -28.02 | 77.41 | 0.4743 | -10.0 | 17.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
