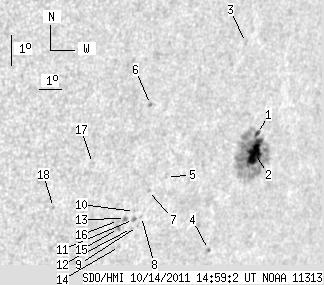

SDO HMI 2011-10-14 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.81 | 139.02 | 20.26 | 112.42 | -14.77 | 119.26 | 48.40 | 246.11 | 0.7928 | 247.9 | 193.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.92 | 116.46 | 1.57 | 95.35 | -14.04 | 119.92 | 49.06 | 247.27 | 0.7968 | 675.8 | 301.1 | |
| 21.14 | -1.00 | 17.35 | -1.00 | -14.65 | 119.96 | 49.10 | 246.57 | 0.7992 | 843.4 | 999999 | |
| 0.00 | 1.75 | 0.00 | 1.36 | -11.09 | 118.62 | 47.75 | 250.35 | 0.7736 | 351.0 | 327.4 | |
| 0.35 | 2.36 | 0.29 | 1.94 | -17.66 | 118.78 | 47.92 | 242.53 | 0.7993 | -528.5 | -349.7 | |
| 0.00 | 0.70 | 0.00 | 0.53 | -15.14 | 116.08 | 45.21 | 244.29 | 0.7627 | -580.0 | -497.6 | |
| 0.00 | 1.40 | 0.00 | 1.02 | -12.73 | 114.79 | 43.93 | 246.68 | 0.7392 | 679.0 | 619.8 | |
| 0.00 | 1.05 | 0.00 | 0.79 | -15.50 | 115.39 | 44.52 | 243.51 | 0.7572 | -513.0 | -508.4 | |
| 0.00 | 0.87 | 0.00 | 0.66 | -16.32 | 115.32 | 44.45 | 242.47 | 0.7602 | -490.0 | -370.5 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -16.64 | 115.23 | 44.37 | 242.05 | 0.7608 | -419.0 | -342.0 | |
| 0.00 | 1.05 | 0.00 | 0.79 | -16.14 | 114.96 | 44.09 | 242.52 | 0.7557 | -684.0 | -531.1 | |
| 0.00 | 2.45 | 0.00 | 1.85 | -16.40 | 114.99 | 44.12 | 242.22 | 0.7572 | -644.0 | -509.0 | |
| 0.00 | 1.14 | 0.00 | 0.86 | -16.68 | 114.98 | 44.12 | 241.87 | 0.7585 | -418.0 | -359.2 | |
| 1.40 | 2.36 | 1.05 | 1.77 | -16.34 | 114.62 | 43.76 | 242.11 | 0.7532 | -647.2 | -649.6 | |
| 0.00 | 1.14 | 0.00 | 0.86 | -17.24 | 114.62 | 43.76 | 241.01 | 0.7575 | -484.0 | -421.2 | |
| 0.00 | 2.36 | 0.00 | 1.77 | -16.64 | 114.41 | 43.54 | 241.62 | 0.7525 | -715.0 | -614.5 | |
| 0.00 | 0.44 | 0.00 | 0.33 | -16.38 | 114.33 | 43.47 | 241.90 | 0.7505 | -496.0 | -461.6 | |
| 0.00 | 1.66 | 0.00 | 1.19 | -14.44 | 112.74 | 41.87 | 243.48 | 0.7247 | -625.0 | -457.5 | |
| 0.00 | 0.87 | 0.00 | 0.62 | -15.75 | 111.44 | 40.57 | 241.10 | 0.7173 | -555.0 | -455.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
