SDO HMI 2011-10-14 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.88 | 801.75 | 77.12 | 452.03 | -12.08 | 48.83 | -22.04 | 129.72 | 0.4774 | 259.9 | -127.4 | |
|
previous
or next observation for the same group /

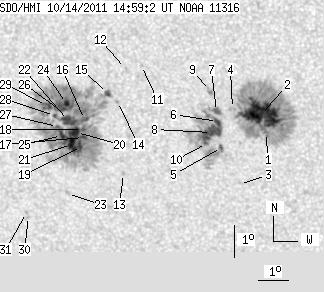

back to the solar disc SDO HMI 2011-10-14 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 253.71 | 0.19 | 138.92 | -12.26 | 52.66 | -18.21 | 135.16 | 0.4349 | 735.5 | 446.1 | |
| 59.50 | -1.00 | 32.60 | -1.00 | -11.67 | 52.57 | -18.30 | 134.03 | 0.4294 | 1156.1 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -13.94 | 51.68 | -19.18 | 136.34 | 0.4639 | 703.0 | 687.7 | |
| 0.00 | 2.36 | 0.00 | 1.30 | -11.55 | 51.64 | -19.22 | 132.40 | 0.4387 | 723.0 | 650.2 | |
| 2.27 | 24.81 | 1.26 | 13.86 | -12.79 | 51.19 | -19.67 | 133.81 | 0.4568 | 561.5 | -336.7 | |
| 2.97 | 77.67 | 1.65 | 43.18 | -11.97 | 51.13 | -19.74 | 132.37 | 0.4491 | 1013.7 | 390.2 | |
| 2.27 | -6.00 | 1.26 | -6.00 | -11.66 | 51.12 | -19.75 | 131.83 | 0.4460 | 1027.5 | 999999 | |
| 17.65 | -6.00 | 9.81 | -6.00 | -12.33 | 50.90 | -19.96 | 132.64 | 0.4553 | 893.1 | 999999 | |
| 0.00 | 3.06 | 0.00 | 1.69 | -11.01 | 50.94 | -19.93 | 130.44 | 0.4415 | 706.0 | 612.0 | |
| 1.40 | -6.00 | 0.78 | -6.00 | -12.68 | 50.71 | -20.15 | 132.94 | 0.4611 | 648.1 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -10.31 | 48.77 | -22.09 | 126.33 | 0.4613 | 706.0 | 480.3 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -10.43 | 48.24 | -22.63 | 125.88 | 0.4690 | 738.0 | 530.3 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -13.74 | 47.87 | -23.00 | 130.88 | 0.5040 | -844.0 | -637.5 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -11.47 | 47.89 | -22.98 | 127.25 | 0.4826 | -831.0 | -705.6 | |
| 3.15 | 431.32 | 1.78 | 248.01 | -11.23 | 47.58 | -23.29 | 126.48 | 0.4843 | 742.2 | -471.4 | |
| 3.32 | -15.00 | 1.90 | -15.00 | -12.09 | 46.73 | -24.14 | 126.91 | 0.5021 | -1083.2 | 999999 | |
| 2.10 | -15.00 | 1.20 | -15.00 | -12.65 | 46.64 | -24.23 | 127.73 | 0.5083 | -1226.5 | 999999 | |
| 1.83 | -15.00 | 1.05 | -15.00 | -12.40 | 46.63 | -24.23 | 127.32 | 0.5061 | -977.6 | 999999 | |
| 0.96 | -15.00 | 0.55 | -15.00 | -12.94 | 46.54 | -24.32 | 128.07 | 0.5120 | -1172.8 | 999999 | |
| 5.15 | -15.00 | 2.96 | -15.00 | -12.51 | 46.42 | -24.45 | 127.24 | 0.5096 | -1313.2 | 999999 | |
| 7.60 | -15.00 | 4.39 | -15.00 | -12.89 | 46.21 | -24.66 | 127.62 | 0.5155 | -1029.4 | 999999 | |
| 11.10 | -15.00 | 6.38 | -15.00 | -12.14 | 46.19 | -24.68 | 126.39 | 0.5092 | -1172.3 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.17 | -14.46 | 45.90 | -24.97 | 129.67 | 0.5331 | -734.0 | -541.2 | |
| 2.80 | -15.00 | 1.60 | -15.00 | -11.61 | 46.17 | -24.69 | 125.51 | 0.5048 | -1276.6 | 999999 | |
| 3.06 | -15.00 | 1.77 | -15.00 | -12.62 | 45.90 | -24.97 | 126.85 | 0.5168 | -929.7 | 999999 | |
| 1.05 | -15.00 | 0.60 | -15.00 | -11.87 | 45.98 | -24.89 | 125.72 | 0.5093 | -1044.1 | 999999 | |
| 0.96 | -15.00 | 0.55 | -15.00 | -12.35 | 45.79 | -25.07 | 126.30 | 0.5157 | -765.3 | 999999 | |
| 1.66 | -15.00 | 0.96 | -15.00 | -12.00 | 45.73 | -25.14 | 125.67 | 0.5135 | -838.9 | 999999 | |
| 6.73 | -15.00 | 3.88 | -15.00 | -11.70 | 45.49 | -25.38 | 124.93 | 0.5139 | -809.1 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -15.26 | 44.45 | -26.41 | 129.28 | 0.5566 | -601.0 | -475.8 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -15.14 | 44.40 | -26.46 | 129.05 | 0.5561 | -723.0 | -525.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
