SDO HMI 2011-10-14 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.13 | 422.75 | 56.97 | 226.46 | 10.40 | 48.97 | -21.90 | 76.89 | 0.3776 | 11.4 | -11.8 | |
|
previous
or next observation for the same group /

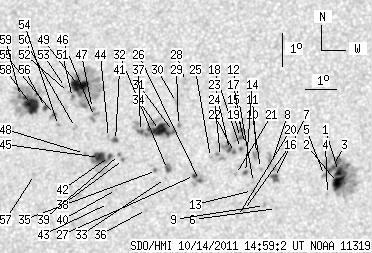

back to the solar disc SDO HMI 2011-10-14 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.84 | 83.70 | 1.99 | 43.20 | 9.47 | 54.68 | -16.19 | 76.53 | 0.2841 | -1172.9 | -633.4 | |
| 9.26 | -1.00 | 4.78 | -1.00 | 9.14 | 54.66 | -16.21 | 77.68 | 0.2833 | -1208.7 | 999999 | |
| 6.12 | -1.00 | 3.16 | -1.00 | 9.65 | 54.51 | -16.36 | 76.04 | 0.2874 | -832.6 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 8.77 | 54.36 | -16.50 | 79.13 | 0.2872 | -777.0 | -546.9 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 9.34 | 54.24 | -16.63 | 77.26 | 0.2907 | -852.0 | -619.9 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 8.31 | 52.77 | -18.10 | 81.38 | 0.3123 | -791.0 | -653.4 | |
| 4.19 | 4.37 | 2.19 | 2.28 | 9.23 | 52.66 | -18.21 | 78.50 | 0.3161 | -999.8 | -914.5 | |
| 0.00 | 10.13 | 0.00 | 5.30 | 9.65 | 52.54 | -18.33 | 77.26 | 0.3192 | -544.0 | -729.2 | |
| 0.00 | 1.75 | 0.00 | 0.91 | 8.38 | 52.38 | -18.48 | 81.27 | 0.3187 | -901.0 | -670.8 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 9.49 | 52.20 | -18.67 | 77.94 | 0.3243 | -839.0 | -756.0 | |
| 0.00 | 5.50 | 0.00 | 2.88 | 9.90 | 52.05 | -18.82 | 76.76 | 0.3279 | -1094.0 | -803.6 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 9.06 | 52.00 | -18.87 | 79.33 | 0.3264 | -705.0 | -544.6 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 8.82 | 51.98 | -18.89 | 80.07 | 0.3262 | -754.0 | -644.7 | |
| 1.57 | 2.18 | 0.83 | 1.15 | 9.35 | 51.72 | -19.14 | 78.58 | 0.3315 | -734.7 | -582.4 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 10.19 | 51.67 | -19.19 | 76.11 | 0.3348 | -905.0 | -691.3 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 8.21 | 51.72 | -19.14 | 82.01 | 0.3292 | -883.0 | -686.8 | |
| 0.79 | 15.29 | 0.41 | 8.05 | 10.63 | 51.52 | -19.35 | 74.91 | 0.3388 | 655.9 | -99.4 | |
| 1.05 | 1.31 | 0.55 | 0.69 | 10.06 | 51.52 | -19.34 | 76.57 | 0.3368 | -904.9 | -895.3 | |
| 1.83 | -17.00 | 0.97 | -17.00 | 10.39 | 51.50 | -19.37 | 75.62 | 0.3382 | -618.0 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 8.03 | 51.54 | -19.33 | 82.62 | 0.3319 | -688.0 | -581.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 9.28 | 51.41 | -19.46 | 78.93 | 0.3365 | -666.0 | -473.2 | |
| 1.22 | 8.47 | 0.64 | 4.47 | 9.94 | 51.34 | -19.53 | 77.03 | 0.3394 | -952.9 | -819.0 | |
| 1.66 | -22.00 | 0.87 | -22.00 | 10.02 | 51.17 | -19.70 | 76.88 | 0.3423 | -950.8 | 999999 | |
| 0.00 | 4.46 | 0.00 | 2.35 | 9.80 | 50.89 | -19.97 | 77.65 | 0.3461 | -669.0 | -686.2 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 9.76 | 50.57 | -20.29 | 77.91 | 0.3511 | -722.0 | -598.5 | |
| 0.79 | 9.09 | 0.42 | 4.81 | 9.06 | 50.26 | -20.61 | 80.01 | 0.3544 | 1101.2 | 759.7 | |
| 1.40 | -26.00 | 0.74 | -26.00 | 9.20 | 50.09 | -20.78 | 79.67 | 0.3575 | 868.5 | 999999 | |
| 0.00 | 3.67 | 0.00 | 1.96 | 12.01 | 49.59 | -21.27 | 72.36 | 0.3740 | -690.0 | -580.9 | |
| 0.00 | 1.49 | 0.00 | 0.79 | 10.68 | 49.47 | -21.40 | 75.92 | 0.3712 | 691.0 | 563.2 | |
| 0.00 | 2.80 | 0.00 | 1.49 | 11.37 | 49.35 | -21.52 | 74.18 | 0.3753 | -854.0 | -704.9 | |
| 1.31 | 46.65 | 0.70 | 24.99 | 10.50 | 49.32 | -21.55 | 76.49 | 0.3730 | 677.5 | -216.5 | |
| 2.53 | 4.98 | 1.35 | 2.66 | 9.35 | 49.20 | -21.66 | 79.59 | 0.3720 | -873.3 | -748.5 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 9.08 | 49.15 | -21.71 | 80.33 | 0.3722 | -670.0 | -456.8 | |
| 15.73 | -31.00 | 8.42 | -31.00 | 10.51 | 48.86 | -22.01 | 76.67 | 0.3803 | -991.0 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.40 | 9.31 | 48.85 | -22.02 | 79.82 | 0.3775 | -773.0 | -557.0 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 8.13 | 48.59 | -22.27 | 83.00 | 0.3797 | -653.0 | -539.6 | |
| 2.18 | -31.00 | 1.17 | -31.00 | 10.45 | 48.24 | -22.63 | 77.08 | 0.3898 | -641.2 | 999999 | |
| 0.00 | 1.83 | 0.00 | 0.99 | 9.59 | 47.74 | -23.12 | 79.44 | 0.3956 | 989.0 | 831.4 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 9.74 | 47.60 | -23.27 | 79.13 | 0.3981 | 988.0 | 893.4 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 8.69 | 47.57 | -23.29 | 81.77 | 0.3966 | 653.0 | 421.4 | |
| 2.18 | 2.88 | 1.18 | 1.56 | 10.15 | 47.44 | -23.43 | 78.16 | 0.4016 | 950.9 | 920.0 | |
| 1.83 | 26.73 | 0.99 | 14.49 | 9.67 | 47.27 | -23.59 | 79.41 | 0.4031 | 964.4 | 577.6 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 8.26 | 47.34 | -23.53 | 82.90 | 0.3998 | -577.0 | -391.5 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 10.23 | 47.20 | -23.67 | 78.05 | 0.4055 | 854.0 | 717.6 | |
| 10.48 | -42.00 | 5.68 | -42.00 | 9.62 | 46.95 | -23.92 | 79.62 | 0.4081 | 1023.9 | 999999 | |
| 0.00 | 4.81 | 0.00 | 2.61 | 10.84 | 46.68 | -24.18 | 76.77 | 0.4151 | 541.0 | 806.1 | |
| 0.35 | 1.31 | 0.19 | 0.71 | 11.08 | 46.59 | -24.27 | 76.24 | 0.4171 | 932.2 | 786.1 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 9.72 | 46.44 | -24.43 | 79.53 | 0.4162 | 672.0 | 585.2 | |
| 13.45 | 80.20 | 7.36 | 43.81 | 11.75 | 46.06 | -24.80 | 74.91 | 0.4272 | 1157.7 | 498.0 | |
| 0.00 | 2.27 | 0.00 | 1.24 | 10.49 | 46.08 | -24.79 | 77.84 | 0.4235 | 816.0 | 659.4 | |
| 0.00 | 1.83 | 0.00 | 1.00 | 11.38 | 45.90 | -24.97 | 75.83 | 0.4287 | 881.0 | 796.0 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 11.52 | 45.75 | -25.12 | 75.56 | 0.4313 | 739.0 | 601.2 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 11.67 | 45.63 | -25.23 | 75.27 | 0.4335 | 652.0 | 469.3 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 10.52 | 45.50 | -25.36 | 77.95 | 0.4325 | 900.0 | 718.4 | |
| 0.96 | 2.97 | 0.53 | 1.63 | 10.84 | 45.34 | -25.53 | 77.27 | 0.4358 | 907.3 | 706.9 | |
| 1.75 | 2.62 | 0.96 | 1.45 | 11.04 | 45.02 | -25.85 | 76.94 | 0.4412 | 924.8 | 666.2 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 9.02 | 44.82 | -26.05 | 81.56 | 0.4403 | 604.0 | 510.7 | |
| 17.91 | 60.63 | 9.92 | 33.63 | 11.11 | 44.53 | -26.33 | 76.95 | 0.4487 | 1040.4 | 324.6 | |
| 1.75 | -58.00 | 0.97 | -58.00 | 11.33 | 44.14 | -26.73 | 76.60 | 0.4552 | 653.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
