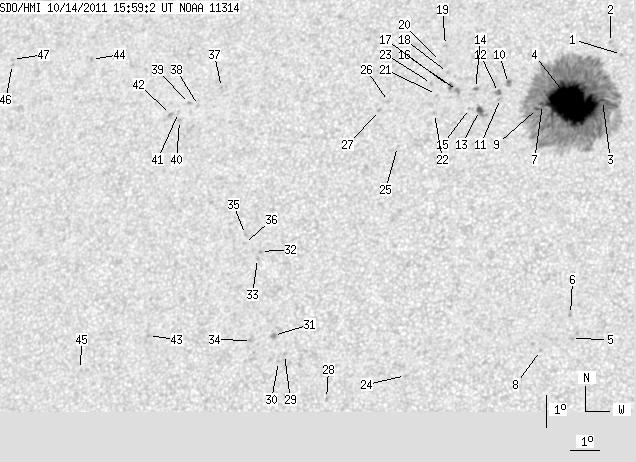

SDO HMI 2011-10-14 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.43 | 720.08 | 72.05 | 392.66 | 26.99 | 57.10 | -13.21 | 29.20 | 0.4188 | -915.7 | -386.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.62 | 28.80 | 59.36 | -10.95 | 23.10 | 0.4262 | 824.0 | 636.7 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 29.18 | 58.94 | -11.38 | 23.48 | 0.4342 | 717.0 | 593.8 | |
| 1.31 | 648.79 | 0.71 | 352.82 | 27.30 | 58.86 | -11.45 | 25.72 | 0.4083 | -1056.4 | -422.2 | |
| 122.12 | -3.00 | 66.40 | -3.00 | 27.19 | 57.84 | -12.47 | 27.77 | 0.4140 | -1473.9 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 19.82 | 58.50 | -11.81 | 38.49 | 0.3108 | -798.0 | -602.3 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 20.56 | 58.41 | -11.90 | 37.17 | 0.3210 | -896.0 | -741.4 | |
| 1.49 | -3.00 | 0.81 | -3.00 | 27.13 | 56.82 | -13.50 | 29.70 | 0.4211 | -732.1 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 19.43 | 57.53 | -12.79 | 41.51 | 0.3164 | -904.0 | -658.2 | |
| 2.27 | -3.00 | 1.24 | -3.00 | 27.00 | 56.66 | -13.65 | 30.15 | 0.4206 | -727.9 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.78 | 27.78 | 55.55 | -14.76 | 31.00 | 0.4396 | -894.0 | -789.5 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 27.29 | 55.34 | -14.98 | 32.01 | 0.4351 | -815.0 | -686.8 | |
| 0.00 | 2.97 | 0.00 | 1.64 | 27.48 | 55.24 | -15.07 | 31.91 | 0.4383 | -924.0 | -777.1 | |
| 3.58 | 7.60 | 1.97 | 4.18 | 26.89 | 54.66 | -15.65 | 33.67 | 0.4358 | -949.2 | -772.8 | |
| 0.00 | 2.53 | 0.00 | 1.40 | 27.59 | 54.42 | -15.89 | 33.08 | 0.4466 | -914.0 | -658.7 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 26.94 | 54.31 | -16.01 | 34.17 | 0.4396 | -690.0 | -591.6 | |
| 0.00 | 2.62 | 0.00 | 1.45 | 27.51 | 53.80 | -16.51 | 34.15 | 0.4509 | -992.0 | -854.8 | |
| 1.66 | 3.41 | 0.92 | 1.89 | 27.63 | 53.50 | -16.81 | 34.44 | 0.4550 | -788.6 | -696.2 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 28.08 | 53.36 | -16.96 | 34.04 | 0.4617 | -738.0 | -631.1 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 28.95 | 53.14 | -17.17 | 33.18 | 0.4740 | -601.0 | -440.8 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 28.42 | 53.05 | -17.26 | 34.01 | 0.4685 | -666.0 | -490.4 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 27.36 | 53.09 | -17.23 | 35.45 | 0.4555 | -684.0 | -619.2 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 26.75 | 53.11 | -17.20 | 36.29 | 0.4480 | -834.0 | -630.2 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 27.70 | 52.85 | -17.46 | 35.30 | 0.4617 | -672.0 | -493.3 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 18.55 | 53.19 | -17.13 | 51.40 | 0.3588 | -770.0 | -586.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 25.66 | 51.99 | -18.32 | 39.62 | 0.4463 | -772.0 | -554.3 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 27.08 | 51.44 | -18.88 | 38.22 | 0.4676 | -806.0 | -530.8 | |
| 0.00 | 1.49 | 0.00 | 0.83 | 26.78 | 51.17 | -19.15 | 39.03 | 0.4669 | -690.0 | -561.6 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 17.76 | 50.66 | -19.66 | 56.65 | 0.3852 | -842.0 | -621.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 19.06 | 49.08 | -21.23 | 55.66 | 0.4163 | 742.0 | 579.3 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 18.84 | 48.91 | -21.41 | 56.32 | 0.4169 | 882.0 | 683.0 | |
| 0.00 | 2.71 | 0.00 | 1.48 | 19.63 | 48.63 | -21.69 | 55.00 | 0.4267 | 1032.0 | 862.2 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 22.20 | 47.78 | -22.54 | 50.98 | 0.4587 | 811.0 | 657.2 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 21.98 | 47.71 | -22.61 | 51.46 | 0.4576 | 762.0 | 538.0 | |
| 0.00 | 1.92 | 0.00 | 1.06 | 19.45 | 47.90 | -22.41 | 56.15 | 0.4348 | 281.0 | 378.1 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 22.71 | 47.16 | -23.15 | 50.74 | 0.4704 | 671.0 | 575.3 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 22.43 | 47.18 | -23.14 | 51.23 | 0.4678 | 631.0 | 537.5 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 27.31 | 45.33 | -24.98 | 45.16 | 0.5314 | 746.0 | 612.0 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 26.70 | 44.62 | -25.69 | 46.79 | 0.5335 | 738.0 | 521.6 | |
| 0.00 | 1.92 | 0.00 | 1.13 | 26.75 | 44.28 | -26.04 | 47.05 | 0.5377 | 756.0 | 543.5 | |
| 0.00 | 1.75 | 0.00 | 1.02 | 26.20 | 44.04 | -26.27 | 48.13 | 0.5355 | 748.0 | 623.4 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 26.45 | 43.94 | -26.37 | 47.84 | 0.5387 | 759.0 | 652.2 | |
| 0.00 | 1.83 | 0.00 | 1.08 | 26.37 | 43.66 | -26.65 | 48.22 | 0.5411 | 758.0 | 654.6 | |
| 0.00 | 1.49 | 0.00 | 0.84 | 19.45 | 44.32 | -26.00 | 59.47 | 0.4818 | 847.0 | 629.9 | |
| 0.00 | 1.49 | 0.00 | 0.91 | 27.99 | 40.19 | -30.13 | 48.81 | 0.5912 | 659.0 | 505.9 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 18.31 | 42.10 | -28.21 | 63.27 | 0.5046 | 480.0 | 517.2 | |
| 0.00 | 1.22 | 0.00 | 0.77 | 27.67 | 37.15 | -33.16 | 51.50 | 0.6213 | 695.0 | 560.6 | |
| 0.00 | 1.57 | 0.00 | 0.99 | 27.83 | 37.10 | -33.22 | 51.31 | 0.6230 | 548.0 | 423.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
