SDO HMI 2011-10-14 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.94 | 62.73 | 7.46 | 36.21 | 19.83 | 98.70 | 28.38 | 299.48 | 0.5155 | -479.7 | -339.9 | |
|
previous
or next observation for the same group /

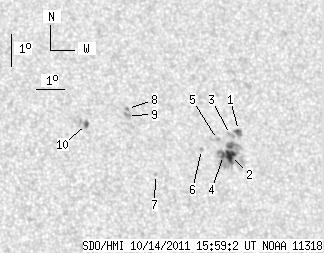

back to the solar disc SDO HMI 2011-10-14 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.14 | 4.72 | 0.66 | 2.76 | 20.28 | 99.87 | 29.56 | 299.38 | 0.5331 | -594.9 | -688.5 | |
| 7.25 | 40.88 | 4.21 | 23.72 | 19.53 | 99.43 | 29.11 | 298.36 | 0.5231 | -1040.1 | -489.6 | |
| 0.00 | 3.06 | 0.00 | 1.78 | 20.17 | 99.56 | 29.24 | 299.41 | 0.5284 | -709.0 | -631.6 | |
| 2.45 | -2.00 | 1.42 | -2.00 | 19.54 | 99.17 | 28.86 | 298.55 | 0.5199 | -1034.8 | 999999 | |
| 0.00 | 1.75 | 0.00 | 1.01 | 20.04 | 99.06 | 28.74 | 299.52 | 0.5212 | -785.0 | -659.2 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 19.76 | 98.42 | 28.11 | 299.47 | 0.5113 | -901.0 | -768.3 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 19.07 | 96.66 | 26.34 | 299.53 | 0.4839 | -713.0 | -525.2 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 21.14 | 96.03 | 25.72 | 303.90 | 0.4896 | 791.0 | 673.2 | |
| 0.00 | 3.23 | 0.00 | 1.83 | 20.92 | 95.99 | 25.68 | 303.54 | 0.4876 | 1091.0 | 745.1 | |
| 2.10 | 5.33 | 1.17 | 2.98 | 20.71 | 94.51 | 24.19 | 304.52 | 0.4671 | 863.7 | 725.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
