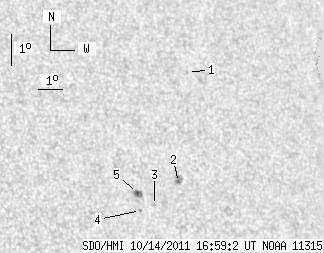

SDO HMI 2011-10-14 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.50 | 12.67 | 2.30 | 8.39 | 20.46 | 109.89 | 40.12 | 294.37 | 0.6651 | 459.9 | 58.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.79 | 23.70 | 112.26 | 42.50 | 298.09 | 0.7035 | 632.0 | 545.5 | |
| 1.14 | 4.63 | 0.76 | 3.10 | 20.35 | 110.66 | 40.89 | 293.95 | 0.6740 | -792.6 | -729.8 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 19.71 | 109.46 | 39.69 | 293.44 | 0.6576 | 555.0 | 436.1 | |
| 0.00 | 1.40 | 0.00 | 0.91 | 19.59 | 108.84 | 39.08 | 293.48 | 0.6498 | 685.0 | 544.1 | |
| 2.36 | 4.63 | 1.54 | 3.02 | 20.12 | 108.88 | 39.11 | 294.26 | 0.6520 | 758.5 | 601.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
