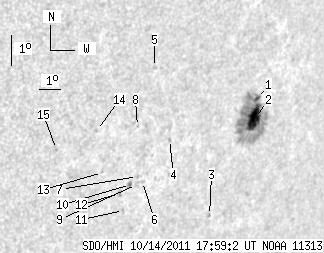

SDO HMI 2011-10-14 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.23 | 127.34 | 19.64 | 106.53 | -14.78 | 119.24 | 50.03 | 246.74 | 0.8084 | 250.8 | 209.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.45 | 107.78 | 2.07 | 91.47 | -14.05 | 119.95 | 50.74 | 247.90 | 0.8128 | 713.7 | 321.8 | |
| 19.30 | -1.00 | 16.42 | -1.00 | -14.69 | 120.00 | 50.79 | 247.18 | 0.8154 | 801.6 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.82 | -17.70 | 118.86 | 49.65 | 243.24 | 0.8153 | -469.0 | -413.1 | |
| 0.00 | 1.31 | 0.00 | 1.03 | -15.04 | 116.10 | 46.88 | 245.16 | 0.7791 | -703.0 | -575.2 | |
| 0.00 | 1.66 | 0.00 | 1.25 | -12.67 | 114.81 | 45.60 | 247.51 | 0.7567 | 370.0 | 440.9 | |
| 0.00 | 1.92 | 0.00 | 1.50 | -16.31 | 115.25 | 46.04 | 243.25 | 0.7759 | -505.0 | -445.0 | |
| 0.00 | 1.05 | 0.00 | 0.81 | -16.13 | 114.97 | 45.76 | 243.34 | 0.7724 | -673.0 | -551.8 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -14.51 | 114.51 | 45.30 | 245.10 | 0.7610 | -526.0 | -437.8 | |
| 0.00 | 2.01 | 0.00 | 1.56 | -16.39 | 115.01 | 45.79 | 243.04 | 0.7738 | -550.0 | -343.3 | |
| 1.48 | 2.53 | 1.15 | 1.96 | -16.37 | 114.73 | 45.52 | 242.94 | 0.7710 | -622.7 | -559.1 | |
| 0.00 | 1.40 | 0.00 | 1.09 | -17.20 | 114.68 | 45.46 | 241.92 | 0.7741 | -533.0 | -382.1 | |
| 0.00 | 2.27 | 0.00 | 1.75 | -16.63 | 114.32 | 45.11 | 242.43 | 0.7681 | -654.0 | -522.8 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -15.88 | 113.36 | 44.14 | 242.85 | 0.7551 | -583.0 | -366.1 | |
| 0.00 | 1.48 | 0.00 | 1.09 | -14.50 | 112.73 | 43.52 | 244.26 | 0.7425 | -617.0 | -493.2 | |
| 0.00 | 1.22 | 0.00 | 0.88 | -14.99 | 111.16 | 41.95 | 242.83 | 0.7282 | -546.0 | -488.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
