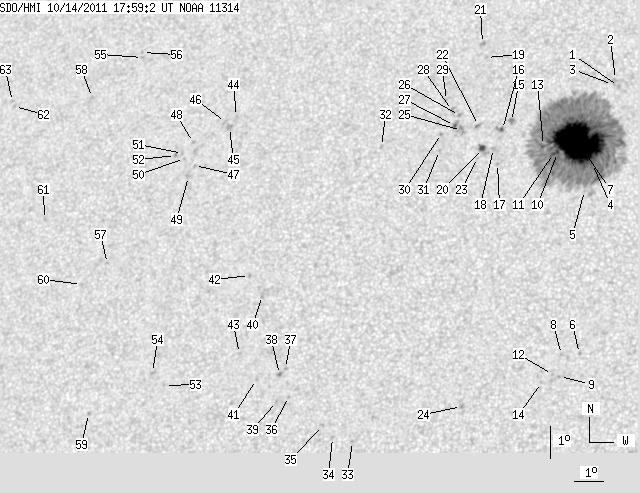

SDO HMI 2011-10-14 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.75 | 754.58 | 71.95 | 410.33 | 26.90 | 56.84 | -12.38 | 27.73 | 0.4121 | -836.2 | -367.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 1.00 | 29.01 | 59.03 | -10.18 | 21.44 | 0.4245 | 791.0 | 674.8 | |
| 0.00 | 1.48 | 0.00 | 0.81 | 29.23 | 58.91 | -10.30 | 21.46 | 0.4285 | 697.0 | 568.1 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 29.07 | 58.82 | -10.39 | 21.78 | 0.4266 | 492.0 | 575.8 | |
| 0.79 | 657.61 | 0.42 | 356.32 | 26.51 | 58.39 | -10.83 | 25.44 | 0.3929 | -1397.1 | -424.5 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 25.65 | 58.20 | -11.02 | 26.92 | 0.3821 | -574.0 | -383.0 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 20.55 | 58.45 | -10.76 | 34.53 | 0.3098 | -972.0 | -758.2 | |
| 122.37 | -4.00 | 66.28 | -4.00 | 27.18 | 57.84 | -11.37 | 25.71 | 0.4060 | -1559.7 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 20.51 | 57.87 | -11.34 | 35.99 | 0.3149 | -833.0 | -603.4 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 19.83 | 57.85 | -11.36 | 37.42 | 0.3062 | -927.0 | -773.9 | |
| 1.48 | -4.00 | 0.80 | -4.00 | 26.84 | 57.16 | -12.05 | 27.43 | 0.4062 | -1057.4 | 999999 | |
| 0.96 | -4.00 | 0.52 | -4.00 | 26.81 | 57.02 | -12.19 | 27.73 | 0.4067 | -1023.5 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 19.88 | 57.62 | -11.59 | 37.84 | 0.3093 | -887.0 | -732.2 | |
| 1.48 | -4.00 | 0.81 | -4.00 | 27.06 | 56.65 | -12.56 | 28.10 | 0.4129 | -662.6 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 19.63 | 57.28 | -11.93 | 39.16 | 0.3096 | -785.0 | -623.2 | |
| 0.00 | 3.06 | 0.00 | 1.68 | 27.80 | 55.45 | -13.76 | 29.28 | 0.4320 | -1085.0 | -864.2 | |
| 1.22 | 3.41 | 0.67 | 1.87 | 27.54 | 55.18 | -14.04 | 30.10 | 0.4307 | -962.5 | -828.6 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 26.45 | 55.14 | -14.07 | 31.64 | 0.4167 | -869.0 | -590.9 | |
| 0.00 | 1.66 | 0.00 | 0.91 | 26.92 | 54.94 | -14.27 | 31.32 | 0.4245 | -858.0 | -688.8 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 29.86 | 54.28 | -14.93 | 28.67 | 0.4676 | -719.0 | -547.2 | |
| 3.23 | 6.81 | 1.77 | 3.73 | 26.91 | 54.57 | -14.65 | 31.98 | 0.4275 | -994.5 | -723.1 | |
| 0.00 | 2.62 | 0.00 | 1.47 | 30.31 | 54.07 | -15.14 | 28.46 | 0.4751 | -734.0 | -582.6 | |
| 0.00 | 2.36 | 0.00 | 1.30 | 27.65 | 54.33 | -14.89 | 31.38 | 0.4389 | -700.0 | -535.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 26.62 | 54.43 | -14.78 | 32.62 | 0.4250 | -693.0 | -450.5 | |
| 0.00 | 1.92 | 0.00 | 1.01 | 18.84 | 54.75 | -14.46 | 46.22 | 0.3288 | -933.0 | -725.9 | |
| 0.00 | 5.07 | 0.00 | 2.79 | 27.47 | 53.76 | -15.46 | 32.54 | 0.4414 | -917.0 | -853.2 | |
| 0.00 | 1.75 | 0.00 | 0.97 | 27.95 | 53.62 | -15.60 | 32.12 | 0.4486 | -945.0 | -670.5 | |
| 1.22 | 2.88 | 0.68 | 1.59 | 27.62 | 53.49 | -15.72 | 32.76 | 0.4456 | -860.0 | -639.3 | |
| 0.00 | 3.06 | 0.00 | 1.70 | 28.11 | 53.35 | -15.87 | 32.33 | 0.4528 | -799.0 | -538.6 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 28.42 | 53.09 | -16.13 | 32.31 | 0.4589 | -496.0 | -482.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 27.36 | 53.07 | -16.14 | 33.79 | 0.4458 | -726.0 | -662.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 26.81 | 53.08 | -16.13 | 34.55 | 0.4390 | -814.0 | -665.2 | |
| 0.00 | 1.75 | 0.00 | 0.97 | 26.88 | 51.04 | -18.17 | 37.53 | 0.4586 | -589.0 | -464.4 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 17.67 | 51.29 | -17.92 | 54.62 | 0.3612 | -799.0 | -582.8 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 17.77 | 50.62 | -18.60 | 55.29 | 0.3710 | -855.0 | -688.2 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 18.12 | 50.24 | -18.97 | 54.96 | 0.3789 | -690.0 | -496.0 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 18.97 | 49.00 | -20.21 | 54.65 | 0.4022 | 826.0 | 618.1 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 19.83 | 48.79 | -20.42 | 53.11 | 0.4121 | 938.0 | 677.5 | |
| 0.00 | 2.27 | 0.00 | 1.23 | 19.64 | 48.61 | -20.60 | 53.72 | 0.4128 | 1065.0 | 876.8 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 18.81 | 48.62 | -20.59 | 55.46 | 0.4059 | 768.0 | 665.7 | |
| 0.00 | 2.45 | 0.00 | 1.35 | 22.05 | 47.67 | -21.54 | 50.10 | 0.4454 | 856.0 | 702.2 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 19.46 | 47.86 | -21.36 | 54.98 | 0.4211 | 868.0 | 598.7 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 22.66 | 47.12 | -22.09 | 49.64 | 0.4573 | 747.0 | 590.2 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 20.23 | 47.16 | -22.05 | 54.18 | 0.4362 | 753.0 | 599.5 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 27.66 | 45.66 | -23.55 | 43.12 | 0.5198 | 564.0 | 433.7 | |
| 0.00 | 3.58 | 0.00 | 2.07 | 27.30 | 45.49 | -23.72 | 43.85 | 0.5181 | 920.0 | 676.7 | |
| 0.00 | 2.10 | 0.00 | 1.22 | 27.45 | 45.31 | -23.91 | 43.82 | 0.5215 | 460.0 | 444.8 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 26.04 | 44.49 | -24.72 | 46.84 | 0.5172 | 940.0 | 780.0 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 26.77 | 44.28 | -24.93 | 45.93 | 0.5259 | 639.0 | 517.5 | |
| 0.00 | 1.92 | 0.00 | 1.11 | 25.68 | 44.35 | -24.86 | 47.55 | 0.5156 | 751.0 | 675.1 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 26.24 | 44.07 | -25.14 | 46.94 | 0.5235 | 781.0 | 657.4 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 26.40 | 43.96 | -25.25 | 46.81 | 0.5261 | 710.0 | 558.9 | |
| 0.00 | 1.48 | 0.00 | 0.86 | 26.33 | 43.72 | -25.49 | 47.17 | 0.5280 | 826.0 | 646.1 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 19.15 | 44.74 | -24.48 | 58.75 | 0.4597 | 668.0 | 591.2 | |
| 0.00 | 2.18 | 0.00 | 1.22 | 19.53 | 44.26 | -24.96 | 58.43 | 0.4686 | 781.0 | 656.3 | |
| 0.00 | 1.31 | 0.00 | 0.79 | 29.41 | 41.66 | -27.56 | 44.59 | 0.5762 | 558.0 | 460.7 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 29.58 | 41.61 | -27.60 | 44.41 | 0.5781 | 521.0 | 385.0 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 22.83 | 42.02 | -27.19 | 54.43 | 0.5199 | 578.0 | 488.5 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 28.04 | 40.12 | -29.09 | 47.89 | 0.5806 | 640.0 | 476.2 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 18.18 | 42.23 | -26.98 | 62.65 | 0.4873 | 812.0 | 600.2 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 22.13 | 41.22 | -27.99 | 56.27 | 0.5248 | 742.0 | 564.6 | |
| 0.00 | 1.31 | 0.00 | 0.78 | 24.09 | 39.38 | -29.83 | 54.48 | 0.5601 | 730.0 | 650.3 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 27.60 | 37.20 | -32.02 | 50.80 | 0.6086 | 664.0 | 547.1 | |
| 0.00 | 1.31 | 0.00 | 0.82 | 27.76 | 37.06 | -32.15 | 50.67 | 0.6110 | 384.0 | 323.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
