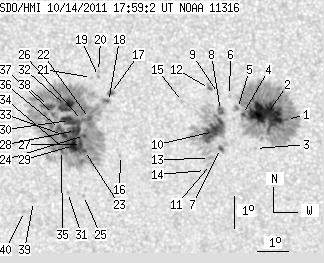

SDO HMI 2011-10-14 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.80 | 823.83 | 83.67 | 458.80 | -12.07 | 48.92 | -20.29 | 132.09 | 0.4570 | 129.5 | -90.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.87 | 273.73 | 0.47 | 148.54 | -11.84 | 53.24 | -15.97 | 138.21 | 0.4058 | 984.1 | 459.8 | |
| 49.87 | -1.00 | 27.08 | -1.00 | -11.71 | 52.61 | -16.60 | 136.88 | 0.4110 | 1235.7 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -12.79 | 52.19 | -17.02 | 137.95 | 0.4280 | 508.0 | 301.6 | |
| 1.48 | -1.00 | 0.81 | -1.00 | -11.73 | 51.85 | -17.37 | 135.63 | 0.4197 | 704.7 | 999999 | |
| 0.96 | -1.00 | 0.52 | -1.00 | -11.55 | 51.70 | -17.51 | 135.07 | 0.4193 | 688.6 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -11.15 | 51.47 | -17.74 | 134.00 | 0.4175 | 639.0 | 369.8 | |
| 2.10 | 103.68 | 1.16 | 57.07 | -12.83 | 51.06 | -18.15 | 136.18 | 0.4405 | 620.2 | 235.3 | |
| 4.45 | -7.00 | 2.44 | -7.00 | -11.63 | 51.15 | -18.06 | 134.32 | 0.4263 | 970.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -11.10 | 51.12 | -18.09 | 133.36 | 0.4209 | 666.0 | 462.6 | |
| 24.89 | -7.00 | 13.69 | -7.00 | -12.30 | 50.88 | -18.34 | 135.02 | 0.4367 | 899.2 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.60 | -13.34 | 50.70 | -18.51 | 136.43 | 0.4502 | -589.0 | -469.8 | |
| 1.40 | 3.14 | 0.76 | 1.72 | -10.95 | 50.84 | -18.37 | 132.66 | 0.4226 | 709.6 | 643.0 | |
| 0.00 | 3.93 | 0.00 | 2.18 | -13.15 | 50.68 | -18.53 | 136.11 | 0.4483 | -419.0 | -393.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.54 | 50.52 | -18.69 | 136.47 | 0.4542 | -767.0 | -606.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -11.39 | 49.94 | -19.27 | 132.06 | 0.4376 | -728.0 | -527.9 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -13.17 | 47.77 | -21.44 | 131.97 | 0.4807 | 292.0 | 275.5 | |
| 2.79 | 3.58 | 1.56 | 2.00 | -11.23 | 47.61 | -21.60 | 128.55 | 0.4637 | 770.6 | 706.7 | |
| 1.22 | 417.94 | 0.68 | 237.27 | -11.48 | 47.52 | -21.69 | 128.87 | 0.4671 | 307.1 | -477.0 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -10.71 | 47.26 | -21.96 | 127.21 | 0.4632 | 564.0 | 444.7 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -10.55 | 47.27 | -21.94 | 126.95 | 0.4616 | 667.0 | 443.5 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -10.75 | 47.02 | -22.19 | 126.99 | 0.4664 | 309.0 | 175.5 | |
| 2.53 | -18.00 | 1.43 | -18.00 | -12.04 | 46.85 | -22.36 | 128.96 | 0.4805 | -1049.7 | 999999 | |
| 1.48 | -18.00 | 0.84 | -18.00 | -13.06 | 46.59 | -22.62 | 130.28 | 0.4932 | -1081.6 | 999999 | |
| 1.57 | -18.00 | 0.89 | -18.00 | -12.58 | 46.63 | -22.58 | 129.58 | 0.4881 | -1201.0 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -14.49 | 46.41 | -22.80 | 132.27 | 0.5091 | -758.0 | -605.7 | |
| 1.83 | -18.00 | 1.04 | -18.00 | -12.11 | 46.61 | -22.60 | 128.78 | 0.4840 | -1105.1 | 999999 | |
| 1.31 | -18.00 | 0.74 | -18.00 | -12.87 | 46.51 | -22.70 | 129.88 | 0.4924 | -1167.7 | 999999 | |
| 7.69 | -18.00 | 4.36 | -18.00 | -12.44 | 46.35 | -22.86 | 128.99 | 0.4901 | -1254.1 | 999999 | |
| 6.64 | -18.00 | 3.78 | -18.00 | -12.91 | 46.24 | -22.98 | 129.62 | 0.4959 | -1128.2 | 999999 | |
| 10.04 | -18.00 | 5.70 | -18.00 | -12.13 | 46.18 | -23.03 | 128.28 | 0.4893 | -1227.4 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -14.42 | 45.88 | -23.33 | 131.51 | 0.5143 | -658.0 | -557.8 | |
| 12.66 | -18.00 | 7.17 | -18.00 | -11.66 | 46.09 | -23.12 | 127.40 | 0.4861 | -1199.9 | 999999 | |
| 2.62 | -18.00 | 1.49 | -18.00 | -12.61 | 45.97 | -23.25 | 128.81 | 0.4963 | -1027.6 | 999999 | |
| 0.96 | -18.00 | 0.55 | -18.00 | -12.99 | 45.86 | -23.35 | 129.29 | 0.5010 | -413.2 | 999999 | |
| 0.52 | -18.00 | 0.30 | -18.00 | -13.09 | 45.82 | -23.39 | 129.39 | 0.5024 | -436.8 | 999999 | |
| 2.71 | -18.00 | 1.54 | -18.00 | -12.40 | 45.82 | -23.39 | 128.29 | 0.4960 | -827.1 | 999999 | |
| 1.48 | -18.00 | 0.84 | -18.00 | -11.96 | 45.66 | -23.55 | 127.39 | 0.4940 | -884.6 | 999999 | |
| 6.73 | -18.00 | 3.83 | -18.00 | -11.72 | 45.52 | -23.70 | 126.82 | 0.4936 | -874.5 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.22 | -14.76 | 44.69 | -24.52 | 130.61 | 0.5308 | -688.0 | -479.6 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -15.09 | 44.34 | -24.87 | 130.71 | 0.5378 | -671.0 | -502.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
