SDO HMI 2011-10-14 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.02 | 427.37 | 49.31 | 226.15 | 10.29 | 49.19 | -20.03 | 76.27 | 0.3478 | 6.6 | 4.2 | |
|
previous
or next observation for the same group /

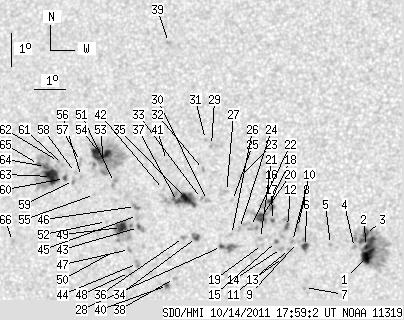

back to the solar disc SDO HMI 2011-10-14 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.44 | 86.12 | 5.86 | 44.07 | 9.01 | 54.80 | -14.41 | 76.94 | 0.2534 | -1323.9 | -649.8 | |
| 1.57 | -1.00 | 0.81 | -1.00 | 9.31 | 54.76 | -14.45 | 75.82 | 0.2552 | -1199.6 | 999999 | |
| 2.97 | -1.00 | 1.52 | -1.00 | 9.67 | 54.71 | -14.50 | 74.49 | 0.2573 | -902.0 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 9.27 | 54.39 | -14.83 | 76.27 | 0.2611 | -740.0 | -572.7 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 9.34 | 53.63 | -15.58 | 76.58 | 0.2737 | -909.0 | -664.0 | |
| 4.02 | 6.20 | 2.08 | 3.21 | 9.26 | 52.85 | -16.37 | 77.39 | 0.2862 | -1035.7 | -790.2 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 8.03 | 52.87 | -16.34 | 81.66 | 0.2829 | -876.0 | -675.7 | |
| 0.00 | 3.67 | 0.00 | 1.90 | 9.82 | 52.57 | -16.65 | 75.67 | 0.2926 | -994.0 | -750.7 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 9.37 | 52.59 | -16.62 | 77.17 | 0.2908 | -551.0 | -562.5 | |
| 0.00 | 1.92 | 0.00 | 1.00 | 9.39 | 52.43 | -16.78 | 77.18 | 0.2935 | -1002.0 | -721.4 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 9.15 | 52.35 | -16.87 | 78.04 | 0.2941 | -934.0 | -736.2 | |
| 2.36 | 9.35 | 1.22 | 4.85 | 9.84 | 52.25 | -16.96 | 75.82 | 0.2978 | -1073.7 | -767.5 | |
| 0.00 | 2.88 | 0.00 | 1.49 | 8.91 | 52.17 | -17.04 | 78.96 | 0.2963 | -775.0 | -622.8 | |
| 0.00 | 1.75 | 0.00 | 0.91 | 9.17 | 52.09 | -17.12 | 78.11 | 0.2983 | -750.0 | -671.2 | |
| 1.48 | 1.92 | 0.77 | 1.00 | 9.38 | 51.92 | -17.29 | 77.53 | 0.3016 | -713.0 | -679.8 | |
| 2.27 | 27.51 | 1.18 | 14.34 | 10.39 | 51.74 | -17.47 | 74.38 | 0.3080 | -631.2 | -377.4 | |
| 1.75 | 1.83 | 0.91 | 0.95 | 10.00 | 51.76 | -17.45 | 75.61 | 0.3062 | -780.7 | -808.0 | |
| 2.18 | -16.00 | 1.14 | -16.00 | 10.57 | 51.67 | -17.55 | 73.87 | 0.3099 | 679.5 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 9.28 | 51.48 | -17.73 | 78.11 | 0.3085 | -329.0 | -155.3 | |
| 6.73 | -16.00 | 3.51 | -16.00 | 10.08 | 51.38 | -17.84 | 75.61 | 0.3127 | -997.0 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.32 | 9.45 | 51.41 | -17.80 | 77.58 | 0.3102 | 218.0 | 160.5 | |
| 0.00 | 7.77 | 0.00 | 4.06 | 9.80 | 51.07 | -18.14 | 76.68 | 0.3167 | -503.0 | -659.4 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.29 | 50.66 | -18.55 | 72.44 | 0.3287 | -879.0 | -696.4 | |
| 0.00 | 1.75 | 0.00 | 0.91 | 9.73 | 50.73 | -18.49 | 77.09 | 0.3220 | -829.0 | -618.1 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 10.56 | 50.45 | -18.76 | 74.75 | 0.3292 | -624.0 | -552.5 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 9.54 | 50.48 | -18.73 | 77.80 | 0.3255 | -592.0 | -474.4 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 10.83 | 50.24 | -18.97 | 74.11 | 0.3335 | 142.0 | 131.4 | |
| 1.31 | 10.31 | 0.69 | 5.40 | 9.17 | 50.18 | -19.03 | 79.06 | 0.3293 | 821.1 | 886.1 | |
| 0.00 | 1.83 | 0.00 | 0.97 | 12.19 | 49.66 | -19.55 | 70.65 | 0.3483 | -805.0 | -690.0 | |
| 0.00 | 2.62 | 0.00 | 1.38 | 10.54 | 49.65 | -19.56 | 75.32 | 0.3418 | 581.0 | 579.5 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 12.36 | 49.45 | -19.76 | 70.33 | 0.3523 | -727.0 | -574.5 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 11.46 | 49.45 | -19.76 | 72.83 | 0.3483 | -781.0 | -647.2 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 10.59 | 49.45 | -19.76 | 75.29 | 0.3451 | 792.0 | 598.6 | |
| 2.62 | 4.63 | 1.38 | 2.44 | 9.42 | 49.36 | -19.85 | 78.70 | 0.3431 | -905.6 | -789.3 | |
| 6.11 | 33.10 | 3.23 | 17.54 | 10.57 | 48.97 | -20.25 | 75.61 | 0.3527 | -1155.4 | -498.4 | |
| 0.00 | 2.62 | 0.00 | 1.38 | 9.40 | 48.94 | -20.27 | 78.92 | 0.3498 | -807.0 | -499.0 | |
| 2.18 | -35.00 | 1.16 | -35.00 | 10.47 | 48.68 | -20.53 | 76.05 | 0.3569 | -1052.9 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 8.17 | 48.73 | -20.49 | 82.51 | 0.3510 | -871.0 | -708.3 | |
| 0.00 | 2.18 | 0.00 | 1.17 | 15.24 | 47.97 | -21.24 | 64.25 | 0.3898 | 822.0 | 711.0 | |
| 1.66 | 2.97 | 0.88 | 1.57 | 7.95 | 48.51 | -20.70 | 83.18 | 0.3541 | -831.7 | -884.6 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 11.69 | 48.23 | -20.98 | 73.02 | 0.3682 | 824.0 | 645.8 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 10.81 | 48.20 | -21.01 | 75.37 | 0.3656 | -505.0 | -386.6 | |
| 1.14 | 3.76 | 0.61 | 2.00 | 9.65 | 47.47 | -21.74 | 78.83 | 0.3739 | 983.1 | 901.1 | |
| 0.00 | 3.67 | 0.00 | 1.96 | 8.57 | 47.50 | -21.71 | 81.70 | 0.3712 | 806.0 | 562.9 | |
| 0.00 | 3.76 | 0.00 | 2.01 | 10.01 | 47.41 | -21.80 | 77.90 | 0.3757 | 481.0 | 511.1 | |
| 0.00 | 3.41 | 0.00 | 1.82 | 10.27 | 47.33 | -21.89 | 77.24 | 0.3777 | 1017.0 | 891.8 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 8.98 | 47.22 | -21.99 | 80.69 | 0.3765 | 838.0 | 757.7 | |
| 0.00 | 2.53 | 0.00 | 1.35 | 8.29 | 47.26 | -21.95 | 82.50 | 0.3747 | -525.0 | -205.8 | |
| 8.47 | 28.30 | 4.54 | 15.15 | 9.63 | 46.91 | -22.30 | 79.09 | 0.3826 | 1082.0 | 660.3 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 8.93 | 46.76 | -22.45 | 80.94 | 0.3837 | 658.0 | 420.2 | |
| 0.00 | 4.89 | 0.00 | 2.63 | 10.96 | 46.58 | -22.63 | 75.80 | 0.3914 | 870.0 | 799.1 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 9.79 | 46.41 | -22.80 | 78.85 | 0.3910 | 664.0 | 502.6 | |
| 0.35 | 72.58 | 0.19 | 39.17 | 11.55 | 46.17 | -23.04 | 74.54 | 0.3996 | 1090.0 | 577.9 | |
| 13.63 | -53.00 | 7.37 | -53.00 | 11.81 | 46.05 | -23.17 | 73.96 | 0.4024 | 1158.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 10.58 | 45.95 | -23.26 | 77.04 | 0.4001 | 904.0 | 741.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 11.10 | 45.48 | -23.74 | 75.96 | 0.4089 | 843.0 | 708.6 | |
| 0.00 | 3.06 | 0.00 | 1.66 | 11.55 | 45.40 | -23.81 | 74.92 | 0.4114 | 682.0 | 592.6 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 11.21 | 45.27 | -23.95 | 75.79 | 0.4124 | 827.0 | 699.7 | |
| 0.00 | 2.71 | 0.00 | 1.47 | 10.97 | 45.22 | -23.99 | 76.39 | 0.4125 | 1069.0 | 795.2 | |
| 1.40 | 2.18 | 0.76 | 1.19 | 11.02 | 44.92 | -24.30 | 76.40 | 0.4173 | 960.1 | 749.2 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 11.43 | 44.81 | -24.40 | 75.46 | 0.4201 | 842.0 | 667.6 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 11.52 | 44.67 | -24.54 | 75.33 | 0.4225 | 828.0 | 665.4 | |
| 14.06 | 51.36 | 7.68 | 28.11 | 11.06 | 44.48 | -24.73 | 76.48 | 0.4241 | 1130.6 | 350.8 | |
| 2.27 | -63.00 | 1.24 | -63.00 | 11.35 | 44.25 | -24.96 | 75.90 | 0.4284 | 902.0 | 999999 | |
| 1.05 | -63.00 | 0.58 | -63.00 | 11.40 | 44.01 | -25.20 | 75.88 | 0.4323 | 585.1 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.15 | 9.06 | 43.33 | -25.88 | 81.44 | 0.4377 | 663.0 | 425.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
