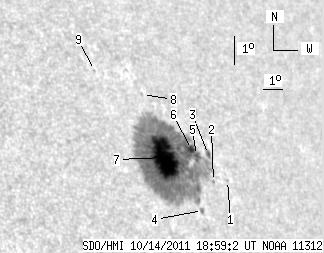

SDO HMI 2011-10-14 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.74 | 422.20 | 55.33 | 340.39 | 23.29 | 119.69 | 51.03 | 295.04 | 0.7905 | -919.1 | -327.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.74 | 22.33 | 122.40 | 53.74 | 293.32 | 0.8144 | 411.0 | 372.7 | |
| 0.00 | 1.05 | 0.00 | 0.88 | 22.36 | 121.65 | 52.99 | 293.49 | 0.8074 | 457.0 | 376.1 | |
| 0.79 | 4.11 | 0.66 | 3.46 | 23.20 | 121.85 | 53.19 | 294.48 | 0.8108 | 233.3 | 128.3 | |
| 0.00 | 2.53 | 0.00 | 2.06 | 21.52 | 120.62 | 51.96 | 292.65 | 0.7962 | 403.0 | 177.0 | |
| 1.22 | 412.16 | 1.02 | 332.07 | 23.22 | 121.21 | 52.55 | 294.63 | 0.8049 | -275.0 | -339.5 | |
| 2.97 | -5.00 | 2.46 | -5.00 | 23.43 | 121.06 | 52.40 | 294.91 | 0.8038 | 533.3 | 999999 | |
| 63.76 | -5.00 | 51.19 | -5.00 | 23.29 | 119.56 | 50.90 | 295.07 | 0.7892 | -1115.1 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.50 | 25.31 | 119.54 | 50.88 | 297.58 | 0.7935 | -357.0 | -317.4 | |
| 0.00 | 0.87 | 0.00 | 0.68 | 26.23 | 117.59 | 48.93 | 299.26 | 0.7774 | -464.0 | -427.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
