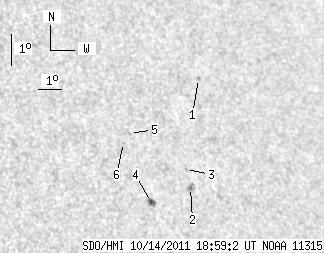

SDO HMI 2011-10-14 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.93 | 12.22 | 2.60 | 8.24 | 20.91 | 109.91 | 41.25 | 294.62 | 0.6799 | 277.3 | -184.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.93 | 23.76 | 112.25 | 43.59 | 297.76 | 0.7155 | 595.0 | 506.7 | |
| 0.00 | 3.58 | 0.00 | 2.43 | 20.43 | 110.64 | 41.98 | 293.71 | 0.6870 | -892.0 | -728.4 | |
| 0.00 | 1.22 | 0.00 | 0.83 | 21.00 | 110.62 | 41.96 | 294.52 | 0.6884 | -495.0 | -484.2 | |
| 3.93 | 4.80 | 2.60 | 3.18 | 20.08 | 108.88 | 40.22 | 293.80 | 0.6651 | 667.4 | 443.9 | |
| 0.00 | 0.70 | 0.00 | 0.47 | 22.25 | 108.66 | 40.00 | 297.02 | 0.6702 | 616.0 | 466.0 | |
| 0.00 | 0.61 | 0.00 | 0.40 | 21.99 | 108.32 | 39.66 | 296.79 | 0.6653 | 548.0 | 474.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
