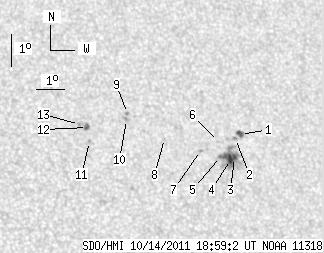

SDO HMI 2011-10-14 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.78 | 48.83 | 5.74 | 28.61 | 19.87 | 98.65 | 29.99 | 298.47 | 0.5366 | -208.6 | -369.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.41 | 4.11 | 2.03 | 2.44 | 20.25 | 99.98 | 31.32 | 298.21 | 0.5556 | -673.3 | -531.8 | |
| 0.00 | 1.66 | 0.00 | 0.98 | 20.14 | 99.77 | 31.11 | 298.14 | 0.5523 | -807.0 | -673.2 | |
| 0.61 | 31.36 | 0.36 | 18.50 | 19.56 | 99.61 | 30.95 | 297.25 | 0.5472 | -872.6 | -619.5 | |
| 3.67 | -3.00 | 2.16 | -3.00 | 19.51 | 99.45 | 30.79 | 297.25 | 0.5449 | -1107.5 | 999999 | |
| 0.26 | -3.00 | 0.15 | -3.00 | 19.62 | 99.10 | 30.44 | 297.66 | 0.5410 | -957.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 20.08 | 99.13 | 30.47 | 298.44 | 0.5437 | -690.0 | -550.8 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 19.84 | 98.41 | 29.75 | 298.48 | 0.5332 | -754.0 | -664.5 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 20.27 | 97.19 | 28.53 | 300.08 | 0.5198 | 664.0 | 429.6 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 21.10 | 96.02 | 27.36 | 302.44 | 0.5100 | 797.0 | 661.6 | |
| 0.00 | 2.62 | 0.00 | 1.50 | 20.92 | 95.94 | 27.28 | 302.17 | 0.5079 | 995.0 | 684.1 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 20.30 | 94.50 | 25.84 | 302.24 | 0.4854 | 803.0 | 633.9 | |
| 1.83 | 2.97 | 1.04 | 1.68 | 20.73 | 94.51 | 25.85 | 303.03 | 0.4885 | 832.7 | 733.3 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 20.84 | 94.25 | 25.59 | 303.46 | 0.4858 | 889.0 | 740.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
