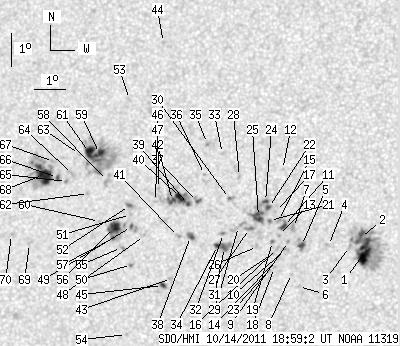

SDO HMI 2011-10-14 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.42 | 434.94 | 62.45 | 229.33 | 10.33 | 49.24 | -19.42 | 75.81 | 0.3383 | -81.8 | 3.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.04 | 85.77 | 9.72 | 43.78 | 9.12 | 54.87 | -13.79 | 76.02 | 0.2436 | -1292.1 | -580.0 | |
| 6.11 | -1.00 | 3.13 | -1.00 | 9.56 | 54.73 | -13.93 | 74.37 | 0.2476 | -905.9 | 999999 | |
| 0.00 | 1.92 | 0.00 | 0.98 | 9.28 | 54.40 | -14.26 | 75.76 | 0.2520 | -657.0 | -578.8 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 9.30 | 53.74 | -14.92 | 76.24 | 0.2628 | -266.0 | -412.1 | |
| 2.62 | 6.73 | 1.35 | 3.47 | 9.27 | 52.89 | -15.77 | 76.94 | 0.2765 | -1122.9 | -861.1 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 8.05 | 52.85 | -15.81 | 81.39 | 0.2740 | -802.0 | -686.8 | |
| 0.00 | 4.28 | 0.00 | 2.21 | 9.81 | 52.61 | -16.04 | 75.27 | 0.2829 | -916.0 | -722.6 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 8.43 | 52.62 | -16.04 | 80.12 | 0.2788 | -705.0 | -612.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 9.38 | 52.48 | -16.18 | 76.83 | 0.2837 | -976.0 | -847.4 | |
| 0.00 | 3.14 | 0.00 | 1.62 | 9.14 | 52.39 | -16.27 | 77.73 | 0.2843 | -937.0 | -685.2 | |
| 2.97 | 4.45 | 1.54 | 2.30 | 9.83 | 52.30 | -16.36 | 75.43 | 0.2881 | -1037.2 | -807.9 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 11.53 | 52.17 | -16.49 | 69.88 | 0.2975 | -693.0 | -563.3 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 9.55 | 52.15 | -16.51 | 76.46 | 0.2895 | -1000.0 | -830.7 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 8.90 | 52.19 | -16.47 | 78.70 | 0.2870 | -828.0 | -631.6 | |
| 0.00 | 2.62 | 0.00 | 1.36 | 10.00 | 52.13 | -16.53 | 74.96 | 0.2914 | -810.0 | -686.7 | |
| 0.00 | 2.01 | 0.00 | 1.04 | 9.16 | 52.14 | -16.52 | 77.80 | 0.2885 | -711.0 | -605.5 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 10.27 | 52.02 | -16.64 | 74.16 | 0.2942 | -825.0 | -606.5 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 8.59 | 52.07 | -16.59 | 79.81 | 0.2881 | -739.0 | -590.7 | |
| 1.48 | 1.75 | 0.77 | 0.90 | 9.37 | 51.97 | -16.69 | 77.21 | 0.2918 | -731.8 | -873.7 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 9.01 | 51.99 | -16.67 | 78.42 | 0.2905 | -689.0 | -506.9 | |
| 0.35 | 1.66 | 0.18 | 0.86 | 9.99 | 51.85 | -16.81 | 75.20 | 0.2960 | -1054.2 | -767.1 | |
| 2.53 | 29.96 | 1.31 | 15.56 | 10.38 | 51.79 | -16.87 | 73.96 | 0.2983 | -599.4 | -333.3 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 8.50 | 51.89 | -16.77 | 80.22 | 0.2909 | -785.0 | -598.7 | |
| 1.83 | -22.00 | 0.95 | -22.00 | 10.56 | 51.69 | -16.97 | 73.47 | 0.3007 | 732.7 | 999999 | |
| 8.56 | -22.00 | 4.45 | -22.00 | 10.10 | 51.49 | -17.17 | 75.09 | 0.3021 | -1003.6 | 999999 | |
| 0.00 | 1.83 | 0.00 | 0.95 | 9.20 | 51.51 | -17.15 | 78.03 | 0.2989 | 135.0 | 56.4 | |
| 0.00 | 3.49 | 0.00 | 1.82 | 9.74 | 51.22 | -17.43 | 76.46 | 0.3051 | -866.0 | -597.0 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 11.28 | 50.81 | -17.85 | 71.90 | 0.3176 | -921.0 | -608.5 | |
| 0.00 | 5.42 | 0.00 | 2.82 | 9.78 | 50.87 | -17.79 | 76.52 | 0.3109 | -659.0 | -631.3 | |
| 0.35 | 2.79 | 0.18 | 1.46 | 10.61 | 50.54 | -18.12 | 74.16 | 0.3192 | -859.0 | -641.6 | |
| 3.32 | 11.01 | 1.73 | 5.74 | 9.14 | 50.46 | -18.20 | 78.78 | 0.3158 | 1015.0 | 923.2 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 9.56 | 50.41 | -18.25 | 77.50 | 0.3178 | -715.0 | -554.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 11.96 | 50.22 | -18.44 | 70.39 | 0.3299 | -568.0 | -408.5 | |
| 1.83 | -31.00 | 0.96 | -31.00 | 9.19 | 50.23 | -18.43 | 78.72 | 0.3196 | 855.6 | 999999 | |
| 0.00 | 1.83 | 0.00 | 0.97 | 12.24 | 49.72 | -18.94 | 70.00 | 0.3391 | -866.0 | -754.4 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 11.31 | 49.69 | -18.97 | 72.70 | 0.3354 | 855.0 | 614.0 | |
| 0.44 | 3.58 | 0.23 | 1.88 | 10.49 | 49.52 | -19.14 | 75.20 | 0.3350 | 1061.0 | 825.5 | |
| 3.32 | 4.72 | 1.74 | 2.48 | 9.44 | 49.36 | -19.30 | 78.40 | 0.3344 | -945.4 | -714.2 | |
| 1.75 | 34.59 | 0.92 | 18.25 | 10.39 | 49.23 | -19.43 | 75.66 | 0.3391 | -823.8 | -441.4 | |
| 5.42 | -39.00 | 2.86 | -39.00 | 10.59 | 48.96 | -19.70 | 75.24 | 0.3441 | -1179.3 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.10 | 9.42 | 48.97 | -19.69 | 78.61 | 0.3405 | -864.0 | -578.5 | |
| 3.32 | -39.00 | 1.75 | -39.00 | 10.49 | 48.71 | -19.95 | 75.67 | 0.3478 | -967.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 8.16 | 48.82 | -19.84 | 82.37 | 0.3405 | -875.0 | -586.5 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 15.23 | 48.01 | -20.65 | 63.70 | 0.3811 | 835.0 | 666.8 | |
| 2.53 | 3.49 | 1.34 | 1.84 | 7.94 | 48.54 | -20.12 | 83.08 | 0.3447 | -831.2 | -678.9 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 10.84 | 48.23 | -20.43 | 74.98 | 0.3565 | -575.0 | -459.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 10.44 | 48.16 | -20.50 | 76.11 | 0.3563 | -570.0 | -371.6 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 9.41 | 47.87 | -20.79 | 79.09 | 0.3581 | 915.0 | 708.3 | |
| 1.75 | 4.54 | 0.93 | 2.41 | 9.67 | 47.44 | -21.22 | 78.57 | 0.3657 | 957.7 | 797.2 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 8.53 | 47.51 | -21.15 | 81.66 | 0.3623 | 795.0 | 653.1 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 10.03 | 47.38 | -21.28 | 77.63 | 0.3675 | 1008.0 | 712.9 | |
| 1.57 | 2.88 | 0.84 | 1.54 | 10.29 | 47.33 | -21.33 | 76.93 | 0.3690 | 997.6 | 1029.2 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 13.47 | 47.06 | -21.60 | 68.86 | 0.3854 | 656.0 | 511.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 6.44 | 47.45 | -21.21 | 87.48 | 0.3614 | -835.0 | -545.3 | |
| 0.00 | 2.10 | 0.00 | 1.12 | 9.03 | 47.15 | -21.51 | 80.41 | 0.3688 | 836.0 | 657.8 | |
| 10.04 | 23.23 | 5.36 | 12.40 | 9.62 | 46.85 | -21.81 | 78.93 | 0.3748 | 1076.1 | 699.1 | |
| 1.31 | -56.00 | 0.70 | -56.00 | 9.29 | 46.84 | -21.82 | 79.82 | 0.3743 | 878.5 | 999999 | |
| 0.00 | 5.94 | 0.00 | 3.18 | 11.02 | 46.55 | -22.11 | 75.41 | 0.3834 | 931.0 | 763.3 | |
| 5.24 | 77.12 | 2.82 | 41.47 | 11.81 | 46.22 | -22.44 | 73.56 | 0.3912 | 1224.5 | 571.8 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 9.78 | 46.38 | -22.28 | 78.68 | 0.3826 | 794.0 | 528.6 | |
| 8.12 | -59.00 | 4.38 | -59.00 | 11.83 | 45.89 | -22.77 | 73.70 | 0.3964 | 1087.1 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 10.60 | 45.96 | -22.70 | 76.74 | 0.3914 | 630.0 | 633.7 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 11.76 | 45.56 | -23.10 | 74.06 | 0.4011 | 604.0 | 421.6 | |
| 0.00 | 4.28 | 0.00 | 2.31 | 11.15 | 45.39 | -23.27 | 75.64 | 0.4019 | 929.0 | 629.1 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 10.93 | 45.20 | -23.46 | 76.25 | 0.4041 | 1092.0 | 892.9 | |
| 2.01 | 3.76 | 1.09 | 2.04 | 11.04 | 44.90 | -23.76 | 76.12 | 0.4091 | 929.3 | 712.3 | |
| 0.00 | 2.10 | 0.00 | 1.14 | 11.51 | 44.72 | -23.94 | 75.06 | 0.4133 | 666.0 | 592.1 | |
| 20.61 | 52.93 | 11.22 | 28.84 | 11.11 | 44.42 | -24.24 | 76.15 | 0.4166 | 1053.3 | 347.0 | |
| 0.00 | 1.48 | 0.00 | 0.81 | 9.03 | 44.12 | -24.54 | 81.23 | 0.4167 | 683.0 | 558.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 9.27 | 43.50 | -25.15 | 80.80 | 0.4268 | 764.0 | 651.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
