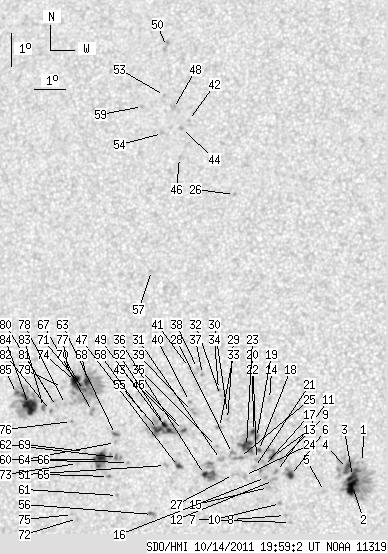

SDO HMI 2011-10-14 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.55 | 477.57 | 55.05 | 250.98 | 10.65 | 49.35 | -18.76 | 74.62 | 0.3299 | 26.6 | 4.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.40 | 9.70 | 55.20 | -12.91 | 72.73 | 0.2316 | -706.0 | -589.2 | |
| 10.31 | 94.24 | 5.25 | 47.99 | 8.98 | 54.92 | -13.19 | 76.06 | 0.2333 | -1390.6 | -563.7 | |
| 4.89 | -2.00 | 2.49 | -2.00 | 9.28 | 54.90 | -13.20 | 74.82 | 0.2346 | -1192.6 | 999999 | |
| 4.63 | -2.00 | 2.36 | -2.00 | 9.51 | 54.74 | -13.37 | 74.01 | 0.2383 | -927.9 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 8.81 | 54.05 | -14.06 | 77.47 | 0.2470 | -784.0 | -580.7 | |
| 3.14 | 7.60 | 1.62 | 3.90 | 9.26 | 52.97 | -15.14 | 76.54 | 0.2662 | -1115.1 | -908.1 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 7.86 | 53.03 | -15.08 | 81.79 | 0.2616 | -900.0 | -654.8 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 8.06 | 52.86 | -15.25 | 81.09 | 0.2647 | -849.0 | -755.6 | |
| 0.00 | 2.10 | 0.00 | 1.08 | 9.73 | 52.66 | -15.44 | 75.06 | 0.2729 | -1023.0 | -870.5 | |
| 0.00 | 1.66 | 0.00 | 0.85 | 8.41 | 52.69 | -15.42 | 79.85 | 0.2684 | -887.0 | -655.5 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 9.37 | 52.52 | -15.58 | 76.47 | 0.2739 | -1157.0 | -886.9 | |
| 0.00 | 3.84 | 0.00 | 1.98 | 9.10 | 52.44 | -15.67 | 77.51 | 0.2743 | -726.0 | -758.8 | |
| 3.32 | 6.81 | 1.71 | 3.51 | 9.81 | 52.38 | -15.73 | 75.00 | 0.2778 | -1121.1 | -758.5 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 11.52 | 52.19 | -15.92 | 69.34 | 0.2885 | -807.0 | -566.1 | |
| 0.00 | 2.62 | 0.00 | 1.35 | 8.88 | 52.29 | -15.81 | 78.37 | 0.2761 | -909.0 | -687.8 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 9.18 | 52.19 | -15.92 | 77.38 | 0.2788 | -984.0 | -778.6 | |
| 0.00 | 4.98 | 0.00 | 2.57 | 9.51 | 52.11 | -16.00 | 76.28 | 0.2811 | -385.0 | -639.8 | |
| 1.14 | 1.92 | 0.59 | 0.99 | 9.98 | 51.93 | -16.18 | 74.77 | 0.2857 | -914.3 | -586.6 | |
| 1.40 | 27.43 | 0.72 | 14.20 | 10.37 | 51.84 | -16.26 | 73.52 | 0.2886 | -683.2 | -284.0 | |
| 0.00 | 2.10 | 0.00 | 1.08 | 9.71 | 51.88 | -16.23 | 75.74 | 0.2855 | -865.0 | -733.3 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 9.47 | 51.83 | -16.28 | 76.60 | 0.2855 | -308.0 | -135.8 | |
| 1.75 | -19.00 | 0.90 | -19.00 | 10.55 | 51.74 | -16.37 | 73.01 | 0.2910 | 652.2 | 999999 | |
| 10.22 | -19.00 | 5.29 | -19.00 | 10.09 | 51.54 | -16.57 | 74.70 | 0.2923 | -1038.3 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 9.22 | 51.52 | -16.59 | 77.65 | 0.2897 | 52.0 | 33.6 | |
| 0.00 | 5.33 | 0.00 | 2.76 | 9.75 | 51.34 | -16.77 | 75.97 | 0.2944 | -895.0 | -522.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 17.68 | 50.58 | -17.53 | 54.03 | 0.3561 | -862.0 | -656.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 9.24 | 51.17 | -16.93 | 77.79 | 0.2955 | 525.0 | 370.0 | |
| 0.00 | 3.06 | 0.00 | 1.59 | 9.87 | 51.11 | -17.00 | 75.75 | 0.2985 | -728.0 | -617.1 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 10.88 | 50.89 | -17.21 | 72.63 | 0.3059 | -784.0 | -501.3 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 11.06 | 50.88 | -17.22 | 72.07 | 0.3068 | -775.0 | -620.9 | |
| 0.00 | 3.41 | 0.00 | 1.77 | 9.68 | 50.74 | -17.37 | 76.61 | 0.3038 | -906.0 | -680.1 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 11.59 | 50.63 | -17.48 | 70.64 | 0.3133 | -728.0 | -551.5 | |
| 0.00 | 2.45 | 0.00 | 1.27 | 10.63 | 50.65 | -17.45 | 73.61 | 0.3087 | -929.0 | -667.7 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 11.77 | 50.55 | -17.56 | 70.16 | 0.3153 | -880.0 | -689.5 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 10.06 | 50.59 | -17.52 | 75.47 | 0.3075 | -892.0 | -698.4 | |
| 2.36 | 19.22 | 1.23 | 10.00 | 9.21 | 50.25 | -17.85 | 78.38 | 0.3103 | 874.4 | 571.9 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 12.21 | 50.01 | -18.10 | 69.36 | 0.3259 | -1025.0 | -761.5 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 12.38 | 49.83 | -18.27 | 69.01 | 0.3295 | -710.0 | -563.0 | |
| 0.00 | 2.01 | 0.00 | 1.05 | 11.09 | 49.76 | -18.35 | 72.89 | 0.3246 | 847.0 | 752.0 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 11.38 | 49.64 | -18.46 | 72.10 | 0.3277 | 776.0 | 618.6 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 12.40 | 49.57 | -18.53 | 69.19 | 0.3336 | -755.0 | -569.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 19.90 | 48.79 | -19.31 | 51.56 | 0.3988 | 829.0 | 609.4 | |
| 1.92 | 40.70 | 1.01 | 21.41 | 10.51 | 49.51 | -18.60 | 74.81 | 0.3264 | 985.7 | -371.9 | |
| 0.00 | 1.75 | 0.00 | 0.94 | 19.64 | 48.59 | -19.52 | 52.36 | 0.3991 | 1074.0 | 820.4 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 10.65 | 49.40 | -18.70 | 74.44 | 0.3286 | 642.0 | 563.0 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 18.75 | 48.63 | -19.48 | 54.22 | 0.3908 | 862.0 | 666.3 | |
| 2.18 | 4.37 | 1.14 | 2.29 | 9.42 | 49.41 | -18.69 | 78.14 | 0.3245 | -919.2 | -692.0 | |
| 0.00 | 2.71 | 0.00 | 1.47 | 20.25 | 48.24 | -19.87 | 51.55 | 0.4088 | 839.0 | 704.1 | |
| 1.75 | -43.00 | 0.92 | -43.00 | 10.49 | 49.03 | -19.08 | 75.16 | 0.3340 | -1245.9 | 999999 | |
| 0.00 | 3.49 | 0.00 | 1.92 | 22.16 | 47.73 | -20.38 | 48.49 | 0.4325 | 856.0 | 772.9 | |
| 0.00 | 2.10 | 0.00 | 1.10 | 9.44 | 49.00 | -19.11 | 78.30 | 0.3313 | -835.0 | -641.9 | |
| 2.18 | -43.00 | 1.15 | -43.00 | 10.67 | 48.89 | -19.22 | 74.73 | 0.3368 | -1128.1 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 20.64 | 47.88 | -20.23 | 51.22 | 0.4168 | 846.0 | 713.7 | |
| 0.00 | 1.75 | 0.00 | 0.95 | 19.47 | 47.97 | -20.14 | 53.51 | 0.4055 | 557.0 | 585.5 | |
| 3.32 | -43.00 | 1.75 | -43.00 | 10.51 | 48.70 | -19.40 | 75.30 | 0.3392 | -1026.3 | 999999 | |
| 0.00 | 3.58 | 0.00 | 1.88 | 7.96 | 48.66 | -19.45 | 82.85 | 0.3338 | -1208.0 | -836.9 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 15.28 | 48.08 | -20.02 | 62.96 | 0.3725 | 759.0 | 652.5 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 10.89 | 48.26 | -19.85 | 74.50 | 0.3475 | -625.0 | -514.2 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 20.27 | 47.18 | -20.93 | 52.81 | 0.4223 | 850.0 | 675.9 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 9.49 | 47.80 | -20.31 | 78.69 | 0.3506 | 975.0 | 787.9 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 8.49 | 47.51 | -20.60 | 81.62 | 0.3533 | 996.0 | 739.1 | |
| 0.00 | 3.58 | 0.00 | 1.90 | 9.63 | 47.44 | -20.67 | 78.46 | 0.3568 | 1060.0 | 995.3 | |
| 1.48 | 3.23 | 0.79 | 1.71 | 10.31 | 47.33 | -20.78 | 76.61 | 0.3604 | 983.1 | 715.2 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 10.07 | 47.34 | -20.76 | 77.26 | 0.3594 | 977.0 | 795.5 | |
| 0.00 | 1.75 | 0.00 | 0.93 | 9.05 | 47.18 | -20.93 | 80.16 | 0.3595 | 919.0 | 675.1 | |
| 11.97 | 20.53 | 6.36 | 10.91 | 9.55 | 46.86 | -21.25 | 78.91 | 0.3658 | 1059.0 | 743.5 | |
| 0.00 | 3.49 | 0.00 | 1.87 | 10.97 | 46.53 | -21.58 | 75.25 | 0.3750 | 968.0 | 797.5 | |
| 4.19 | 80.88 | 2.25 | 43.32 | 11.87 | 46.29 | -21.82 | 73.07 | 0.3818 | 1197.0 | 563.3 | |
| 0.00 | 1.83 | 0.00 | 0.98 | 9.77 | 46.35 | -21.75 | 78.51 | 0.3743 | 763.0 | 549.7 | |
| 1.92 | -68.00 | 1.03 | -68.00 | 11.59 | 46.18 | -21.92 | 73.83 | 0.3825 | 1145.6 | 999999 | |
| 1.22 | -68.00 | 0.66 | -68.00 | 11.77 | 46.07 | -22.04 | 73.45 | 0.3849 | 1277.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 7.76 | 46.25 | -21.86 | 83.92 | 0.3726 | 807.0 | 563.2 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 9.40 | 46.15 | -21.96 | 79.56 | 0.3767 | 873.0 | 614.8 | |
| 7.42 | -68.00 | 3.99 | -68.00 | 11.85 | 45.90 | -22.21 | 73.34 | 0.3878 | 1080.3 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 7.87 | 46.08 | -22.03 | 83.65 | 0.3754 | 779.0 | 596.7 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 10.65 | 45.86 | -22.24 | 76.42 | 0.3844 | 982.0 | 726.3 | |
| 0.00 | 1.75 | 0.00 | 0.94 | 12.08 | 45.68 | -22.43 | 72.88 | 0.3921 | 283.0 | 329.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 11.15 | 45.63 | -22.48 | 75.26 | 0.3896 | 446.0 | 382.1 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 11.66 | 45.48 | -22.62 | 74.06 | 0.3935 | 751.0 | 588.8 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 11.08 | 45.33 | -22.77 | 75.58 | 0.3939 | 641.0 | 519.6 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 11.22 | 45.22 | -22.88 | 75.27 | 0.3961 | 935.0 | 717.5 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 10.95 | 45.15 | -22.96 | 75.98 | 0.3964 | 981.0 | 891.9 | |
| 2.01 | 2.45 | 1.09 | 1.32 | 11.03 | 44.91 | -23.20 | 75.89 | 0.4004 | 972.1 | 825.2 | |
| 18.43 | 57.30 | 9.99 | 31.10 | 11.10 | 44.40 | -23.70 | 75.95 | 0.4084 | 1075.4 | 358.0 | |
| 1.40 | -84.00 | 0.76 | -84.00 | 11.41 | 43.98 | -24.13 | 75.39 | 0.4159 | 597.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
