SDO HMI 2011-10-14 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135.07 | 797.84 | 74.07 | 439.52 | -12.06 | 48.94 | -18.61 | 134.59 | 0.4380 | 198.1 | -101.9 | |
|
previous
or next observation for the same group /

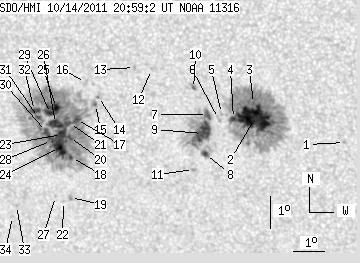

back to the solar disc SDO HMI 2011-10-14 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.75 | 0.00 | 0.93 | -12.40 | 55.40 | -12.16 | 146.62 | 0.3755 | 816.0 | 516.7 | |
| 49.26 | 283.97 | 26.53 | 152.87 | -11.72 | 52.60 | -14.95 | 139.87 | 0.3937 | 1266.9 | 442.0 | |
| 1.14 | -2.00 | 0.61 | -2.00 | -11.25 | 52.60 | -14.96 | 139.06 | 0.3880 | 952.1 | 999999 | |
| 2.71 | -2.00 | 1.46 | -2.00 | -11.74 | 51.94 | -15.62 | 138.67 | 0.4008 | 843.5 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.85 | -11.59 | 51.57 | -15.99 | 137.75 | 0.4031 | 611.0 | 591.0 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -11.75 | 51.46 | -16.09 | 137.84 | 0.4061 | 559.0 | 600.4 | |
| 4.37 | 66.12 | 2.37 | 36.02 | -11.64 | 51.12 | -16.44 | 137.04 | 0.4084 | 981.8 | 457.3 | |
| 2.97 | 9.17 | 1.62 | 5.01 | -12.90 | 50.97 | -16.58 | 138.86 | 0.4247 | 604.1 | 90.6 | |
| 21.14 | -7.00 | 11.51 | -7.00 | -12.24 | 50.92 | -16.63 | 137.71 | 0.4175 | 960.8 | 999999 | |
| 0.96 | 2.80 | 0.52 | 1.51 | -10.84 | 50.72 | -16.83 | 134.96 | 0.4037 | 723.3 | 550.7 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -13.39 | 50.55 | -17.00 | 138.92 | 0.4347 | -890.0 | -612.7 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -10.29 | 49.41 | -18.14 | 131.82 | 0.4129 | 680.0 | 555.9 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -10.24 | 48.87 | -18.68 | 130.91 | 0.4189 | 725.0 | 540.8 | |
| 0.00 | 2.71 | 0.00 | 1.49 | -11.19 | 47.65 | -19.91 | 130.79 | 0.4431 | 745.0 | 582.2 | |
| 0.44 | 5.59 | 0.24 | 3.09 | -11.44 | 47.53 | -20.02 | 131.07 | 0.4470 | 340.2 | -250.1 | |
| 0.00 | 2.97 | 0.00 | 1.64 | -10.77 | 47.26 | -20.30 | 129.50 | 0.4435 | -107.0 | -45.0 | |
| 4.02 | 408.09 | 2.24 | 228.80 | -11.94 | 46.87 | -20.68 | 130.99 | 0.4597 | -1000.1 | -515.2 | |
| 1.83 | -17.00 | 1.03 | -17.00 | -13.15 | 46.61 | -20.95 | 132.60 | 0.4749 | -995.8 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -14.42 | 46.45 | -21.10 | 134.36 | 0.4897 | -853.0 | -682.8 | |
| 1.66 | -17.00 | 0.93 | -17.00 | -12.52 | 46.60 | -20.96 | 131.57 | 0.4686 | -1188.8 | 999999 | |
| 1.05 | -17.00 | 0.59 | -17.00 | -12.07 | 46.63 | -20.92 | 130.89 | 0.4638 | -1067.4 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -14.56 | 46.21 | -21.35 | 134.24 | 0.4938 | -654.0 | -507.2 | |
| 5.07 | -17.00 | 2.84 | -17.00 | -12.43 | 46.34 | -21.21 | 131.09 | 0.4708 | -1289.0 | 999999 | |
| 11.36 | -17.00 | 6.39 | -17.00 | -12.84 | 46.24 | -21.32 | 131.62 | 0.4760 | -1124.7 | 999999 | |
| 3.06 | -17.00 | 1.71 | -17.00 | -11.59 | 46.25 | -21.31 | 129.56 | 0.4636 | -1434.6 | 999999 | |
| 9.00 | -17.00 | 5.04 | -17.00 | -12.09 | 46.17 | -21.38 | 130.30 | 0.4694 | -1242.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -14.41 | 45.96 | -21.60 | 133.68 | 0.4950 | -682.0 | -592.1 | |
| 1.57 | -17.00 | 0.88 | -17.00 | -12.63 | 45.99 | -21.56 | 130.96 | 0.4768 | -1024.1 | 999999 | |
| 3.32 | -17.00 | 1.86 | -17.00 | -11.78 | 46.04 | -21.52 | 129.61 | 0.4680 | -1137.3 | 999999 | |
| 2.45 | -17.00 | 1.38 | -17.00 | -12.36 | 45.85 | -21.70 | 130.32 | 0.4757 | -859.2 | 999999 | |
| 2.10 | -17.00 | 1.18 | -17.00 | -11.93 | 45.63 | -21.93 | 129.32 | 0.4742 | -930.9 | 999999 | |
| 5.59 | -17.00 | 3.14 | -17.00 | -11.71 | 45.51 | -22.04 | 128.81 | 0.4735 | -884.4 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -14.75 | 44.62 | -22.94 | 132.49 | 0.5131 | -712.0 | -617.1 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -15.11 | 44.44 | -23.11 | 132.80 | 0.5186 | -737.0 | -500.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
