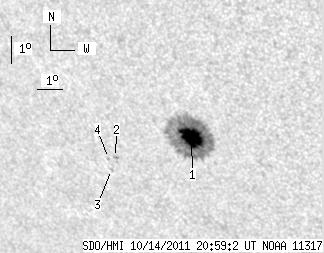

SDO HMI 2011-10-14 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.30 | 154.86 | 19.37 | 106.16 | -26.67 | 37.50 | -30.05 | 139.63 | 0.6933 | 1085.7 | 342.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.30 | 151.46 | 19.37 | 103.70 | -26.65 | 37.58 | -29.97 | 139.67 | 0.6924 | 1158.7 | 335.6 | |
| 0.00 | 1.57 | 0.00 | 1.13 | -27.55 | 34.29 | -33.26 | 137.81 | 0.7265 | 742.0 | 707.3 | |
| 0.00 | 1.22 | 0.00 | 0.89 | -28.00 | 33.97 | -33.58 | 138.02 | 0.7326 | 555.0 | 453.9 | |
| 0.00 | 0.61 | 0.00 | 0.44 | -27.60 | 33.99 | -33.57 | 137.63 | 0.7293 | 545.0 | 581.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
