SDO HMI 2011-10-14 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.61 | 45.51 | 6.90 | 26.99 | 19.94 | 98.65 | 31.10 | 297.89 | 0.5512 | -177.1 | -365.5 | |
|
previous
or next observation for the same group /

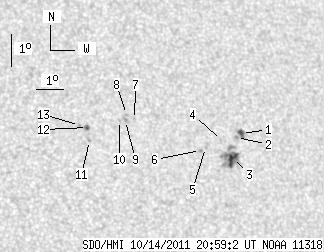

back to the solar disc SDO HMI 2011-10-14 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.49 | 4.45 | 2.10 | 2.68 | 20.29 | 100.05 | 32.50 | 297.58 | 0.5707 | -641.8 | -504.2 | |
| 0.00 | 1.31 | 0.00 | 0.79 | 20.18 | 99.84 | 32.28 | 297.51 | 0.5674 | -875.0 | -762.2 | |
| 6.29 | 26.47 | 3.75 | 15.79 | 19.54 | 99.54 | 31.99 | 296.62 | 0.5605 | -986.3 | -662.3 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 20.11 | 99.26 | 31.70 | 297.74 | 0.5597 | -619.0 | -436.8 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 19.93 | 98.62 | 31.06 | 297.81 | 0.5506 | -432.0 | -490.6 | |
| 0.00 | 1.57 | 0.00 | 0.93 | 19.85 | 98.42 | 30.86 | 297.79 | 0.5476 | -885.0 | -677.2 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 20.92 | 96.22 | 28.66 | 301.12 | 0.5254 | 569.0 | 463.7 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 21.08 | 95.96 | 28.40 | 301.60 | 0.5232 | 757.0 | 620.7 | |
| 0.00 | 2.62 | 0.00 | 1.52 | 20.90 | 95.88 | 28.33 | 301.34 | 0.5211 | 489.0 | 554.3 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 20.91 | 95.67 | 28.11 | 301.52 | 0.5184 | 632.0 | 505.1 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 20.35 | 94.48 | 26.92 | 301.44 | 0.4996 | 740.0 | 597.0 | |
| 1.83 | 2.18 | 1.05 | 1.25 | 20.75 | 94.48 | 26.93 | 302.16 | 0.5023 | 815.2 | 838.0 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 20.82 | 94.21 | 26.65 | 302.52 | 0.4993 | 822.0 | 692.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
