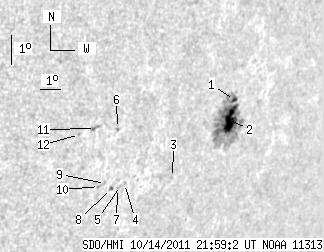

SDO HMI 2011-10-14 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.92 | 111.83 | 17.78 | 98.68 | -14.69 | 119.41 | 52.41 | 247.75 | 0.8299 | 267.4 | 227.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.01 | 98.80 | 1.79 | 88.31 | -14.03 | 119.99 | 52.99 | 248.75 | 0.8334 | 699.5 | 331.2 | |
| 17.47 | -1.00 | 15.64 | -1.00 | -14.66 | 120.00 | 53.00 | 248.02 | 0.8353 | 761.3 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.60 | -16.27 | 117.65 | 50.64 | 245.29 | 0.8193 | -404.0 | -309.1 | |
| 0.00 | 1.14 | 0.00 | 0.93 | -16.28 | 115.34 | 48.33 | 244.33 | 0.7978 | -380.0 | -371.4 | |
| 0.00 | 0.79 | 0.00 | 0.64 | -16.33 | 115.16 | 48.16 | 244.20 | 0.7964 | -514.0 | -489.8 | |
| 0.00 | 1.05 | 0.00 | 0.83 | -14.45 | 114.45 | 47.45 | 246.12 | 0.7824 | -517.0 | -506.9 | |
| 0.00 | 1.05 | 0.00 | 0.85 | -16.41 | 115.05 | 48.05 | 244.05 | 0.7957 | -482.0 | -429.8 | |
| 0.44 | 1.49 | 0.35 | 1.20 | -16.39 | 114.76 | 47.76 | 243.95 | 0.7929 | -649.0 | -559.9 | |
| 0.00 | 0.52 | 0.00 | 0.42 | -16.20 | 114.43 | 47.42 | 244.02 | 0.7889 | -567.0 | -545.2 | |
| 0.00 | 1.66 | 0.00 | 1.32 | -16.28 | 114.17 | 47.17 | 243.81 | 0.7868 | -624.0 | -575.1 | |
| 0.00 | 3.58 | 0.00 | 2.78 | -14.37 | 113.43 | 46.43 | 245.77 | 0.7719 | -704.0 | -555.0 | |
| 0.00 | 1.05 | 0.00 | 0.80 | -14.51 | 112.75 | 45.75 | 245.30 | 0.7656 | -662.0 | -572.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
