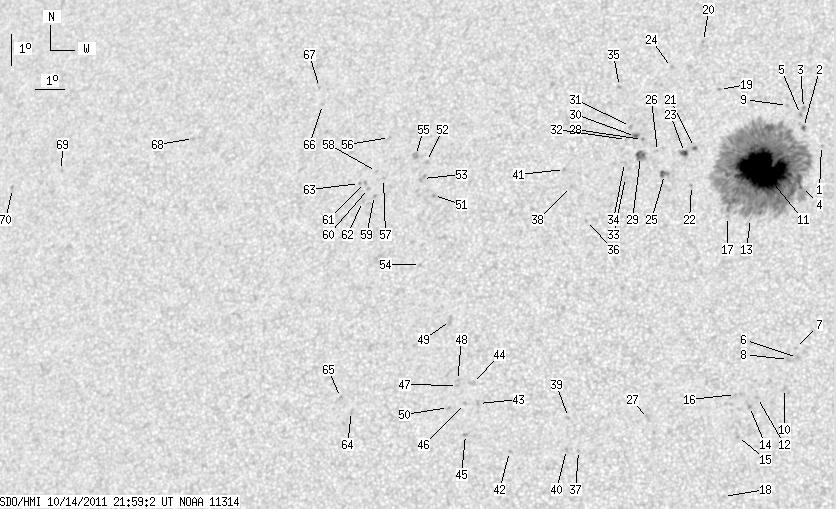

SDO HMI 2011-10-14 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.48 | 767.23 | 67.06 | 414.18 | 26.84 | 56.73 | -10.27 | 23.72 | 0.3970 | -773.5 | -383.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.56 | 28.01 | 59.69 | -7.31 | 16.60 | 0.3948 | 415.0 | 304.9 | |
| 1.49 | 3.32 | 0.80 | 1.80 | 28.59 | 59.04 | -7.97 | 17.49 | 0.4066 | 876.5 | 670.6 | |
| 0.00 | 1.66 | 0.00 | 0.90 | 29.20 | 58.99 | -8.01 | 17.08 | 0.4161 | 705.0 | 678.2 | |
| 0.87 | 650.27 | 0.47 | 350.14 | 26.65 | 59.11 | -7.89 | 19.08 | 0.3771 | -938.5 | -453.9 | |
| 0.00 | 1.66 | 0.00 | 0.90 | 29.01 | 58.90 | -8.10 | 17.42 | 0.4136 | 862.0 | 662.1 | |
| 0.00 | 1.83 | 0.00 | 0.95 | 21.31 | 59.30 | -7.70 | 25.13 | 0.2953 | -977.0 | -733.2 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 21.59 | 59.22 | -7.78 | 24.92 | 0.3000 | -618.0 | -484.8 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 21.24 | 59.02 | -7.99 | 26.04 | 0.2964 | -957.0 | -605.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 29.29 | 58.43 | -8.58 | 18.11 | 0.4202 | -648.0 | -471.2 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 20.34 | 58.94 | -8.07 | 27.76 | 0.2837 | -856.0 | -602.8 | |
| 116.36 | -4.00 | 62.63 | -4.00 | 27.21 | 57.74 | -9.26 | 21.45 | 0.3930 | -1550.2 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 20.05 | 58.08 | -8.92 | 30.71 | 0.2865 | -752.0 | -662.8 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 25.64 | 57.47 | -9.54 | 23.80 | 0.3717 | -160.0 | -161.5 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 19.77 | 57.84 | -9.16 | 31.92 | 0.2847 | -971.0 | -816.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 18.84 | 57.51 | -9.49 | 34.76 | 0.2750 | -789.0 | -703.2 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 20.13 | 57.37 | -9.63 | 32.48 | 0.2939 | -705.0 | -559.0 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 25.69 | 56.69 | -10.31 | 25.40 | 0.3777 | -800.0 | -575.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 17.00 | 57.16 | -9.84 | 40.16 | 0.2545 | -842.0 | -577.2 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 29.78 | 56.01 | -10.99 | 22.18 | 0.4403 | -635.0 | -464.1 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 31.34 | 55.26 | -11.75 | 21.97 | 0.4668 | -733.0 | -629.2 | |
| 1.22 | 1.40 | 0.67 | 0.76 | 27.88 | 55.35 | -11.65 | 25.42 | 0.4178 | -898.9 | -813.0 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 26.66 | 55.38 | -11.63 | 26.84 | 0.4006 | -696.0 | -534.7 | |
| 2.97 | 4.19 | 1.62 | 2.28 | 27.71 | 55.02 | -11.98 | 26.22 | 0.4177 | -920.7 | -727.6 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 30.46 | 54.23 | -12.77 | 24.54 | 0.4609 | -565.0 | -554.2 | |
| 0.00 | 4.63 | 0.00 | 2.52 | 26.99 | 54.41 | -12.59 | 28.24 | 0.4122 | -1014.0 | -888.9 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 27.72 | 54.09 | -12.92 | 27.90 | 0.4246 | -604.0 | -407.5 | |
| 0.00 | 3.41 | 0.00 | 1.78 | 19.34 | 54.58 | -12.43 | 40.91 | 0.3114 | -667.0 | -575.3 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 28.10 | 53.52 | -13.48 | 28.43 | 0.4339 | -472.0 | -464.2 | |
| 0.00 | 8.82 | 0.00 | 4.83 | 27.55 | 53.52 | -13.48 | 29.13 | 0.4266 | -988.0 | -819.0 | |
| 1.57 | 2.45 | 0.87 | 1.35 | 28.19 | 53.26 | -13.74 | 28.76 | 0.4370 | -814.7 | -648.7 | |
| 0.00 | 2.10 | 0.00 | 1.16 | 28.51 | 53.05 | -13.96 | 28.73 | 0.4428 | -728.0 | -603.9 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 28.09 | 52.96 | -14.04 | 29.40 | 0.4379 | -591.0 | -359.3 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 26.86 | 53.09 | -13.92 | 30.79 | 0.4209 | -834.0 | -716.5 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 27.34 | 52.99 | -14.01 | 30.31 | 0.4280 | -795.0 | -561.8 | |
| 0.00 | 1.49 | 0.00 | 0.83 | 29.80 | 52.47 | -14.53 | 28.11 | 0.4640 | -754.0 | -567.4 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 25.46 | 51.92 | -15.08 | 34.83 | 0.4131 | -821.0 | -604.1 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 18.31 | 52.42 | -14.58 | 47.68 | 0.3247 | -799.0 | -662.5 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 26.53 | 51.26 | -15.74 | 34.33 | 0.4322 | -700.0 | -466.8 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 19.31 | 52.00 | -15.00 | 46.12 | 0.3403 | -815.0 | -589.9 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 18.33 | 52.03 | -14.98 | 48.35 | 0.3297 | -809.0 | -630.6 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 27.07 | 50.94 | -16.06 | 34.07 | 0.4416 | -787.0 | -659.6 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 18.22 | 50.17 | -16.83 | 51.71 | 0.3519 | -605.0 | -503.9 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 19.66 | 48.99 | -18.01 | 50.25 | 0.3804 | 584.0 | 510.8 | |
| 0.00 | 3.06 | 0.00 | 1.64 | 20.27 | 48.72 | -18.29 | 49.36 | 0.3896 | 717.0 | 530.2 | |
| 0.00 | 2.10 | 0.00 | 1.12 | 18.69 | 48.67 | -18.34 | 52.82 | 0.3756 | 950.0 | 603.1 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 19.64 | 48.56 | -18.45 | 50.90 | 0.3857 | 1007.0 | 763.2 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 20.19 | 48.22 | -18.78 | 50.22 | 0.3949 | 981.0 | 660.1 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 20.34 | 48.20 | -18.80 | 49.93 | 0.3966 | 924.0 | 733.1 | |
| 0.00 | 3.67 | 0.00 | 2.00 | 22.19 | 47.71 | -19.29 | 46.97 | 0.4202 | 795.0 | 647.3 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 19.50 | 48.00 | -19.00 | 51.96 | 0.3913 | 864.0 | 689.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 26.10 | 46.49 | -20.52 | 41.90 | 0.4732 | 926.0 | 737.1 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 27.17 | 46.03 | -20.97 | 40.83 | 0.4890 | 671.0 | 618.3 | |
| 0.00 | 3.32 | 0.00 | 1.88 | 26.63 | 45.99 | -21.01 | 41.71 | 0.4837 | 597.0 | 634.9 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 23.91 | 46.41 | -20.59 | 45.61 | 0.4518 | 708.0 | 463.0 | |
| 0.00 | 3.93 | 0.00 | 2.24 | 27.35 | 45.60 | -21.41 | 41.10 | 0.4952 | 840.0 | 627.1 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 27.89 | 44.54 | -22.47 | 41.55 | 0.5112 | 658.0 | 461.1 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 26.58 | 44.60 | -22.40 | 43.46 | 0.4975 | 780.0 | 576.5 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 26.79 | 44.30 | -22.70 | 43.48 | 0.5027 | 696.0 | 523.7 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 26.02 | 44.39 | -22.62 | 44.57 | 0.4944 | 1037.0 | 848.5 | |
| 0.00 | 1.57 | 0.00 | 0.90 | 26.24 | 44.13 | -22.88 | 44.53 | 0.4992 | 839.0 | 626.5 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 26.42 | 43.98 | -23.02 | 44.41 | 0.5026 | 788.0 | 629.9 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 25.82 | 44.00 | -23.01 | 45.34 | 0.4966 | 692.0 | 523.6 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 26.38 | 43.77 | -23.23 | 44.71 | 0.5044 | 687.0 | 583.8 | |
| 0.00 | 2.01 | 0.00 | 1.10 | 19.27 | 44.75 | -22.25 | 56.34 | 0.4313 | 887.0 | 606.4 | |
| 0.00 | 2.01 | 0.00 | 1.11 | 19.68 | 44.31 | -22.69 | 55.96 | 0.4402 | 758.0 | 589.3 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 28.86 | 41.81 | -25.19 | 43.10 | 0.5476 | 571.0 | 424.8 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 29.41 | 41.56 | -25.45 | 42.59 | 0.5552 | 471.0 | 397.9 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 27.55 | 37.24 | -29.76 | 49.15 | 0.5841 | 308.0 | 324.6 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 26.27 | 32.41 | -34.59 | 54.44 | 0.6281 | 602.0 | 465.5 | |
| 0.00 | 1.92 | 0.00 | 1.24 | 25.59 | 30.65 | -36.36 | 56.45 | 0.6439 | 591.0 | 461.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
