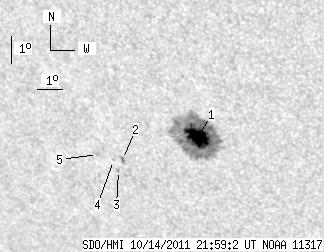

SDO HMI 2011-10-14 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.91 | 160.65 | 18.31 | 109.59 | -26.70 | 37.42 | -29.58 | 140.09 | 0.6896 | 1065.1 | 347.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.91 | 154.62 | 18.31 | 105.27 | -26.66 | 37.56 | -29.44 | 140.17 | 0.6881 | 1154.2 | 337.4 | |
| 0.00 | 2.88 | 0.00 | 2.06 | -27.63 | 34.32 | -32.69 | 138.36 | 0.7225 | 739.0 | 614.8 | |
| 0.00 | 1.31 | 0.00 | 0.94 | -28.04 | 34.01 | -32.99 | 138.54 | 0.7282 | 506.0 | 489.0 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -27.69 | 33.93 | -33.07 | 138.11 | 0.7260 | 738.0 | 551.2 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -27.51 | 33.35 | -33.66 | 137.46 | 0.7293 | 646.0 | 421.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
