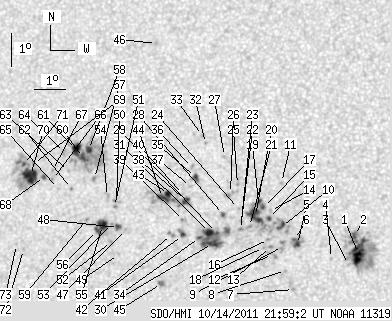

SDO HMI 2011-10-14 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.86 | 472.24 | 61.43 | 246.26 | 10.28 | 49.49 | -17.51 | 74.69 | 0.3078 | 41.9 | -28.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.69 | 83.08 | 9.48 | 42.11 | 9.03 | 54.99 | -12.02 | 74.64 | 0.2142 | -1285.3 | -563.3 | |
| 2.27 | -1.00 | 1.15 | -1.00 | 9.57 | 54.84 | -12.16 | 72.41 | 0.2189 | -965.2 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 8.70 | 54.69 | -12.32 | 76.47 | 0.2179 | -80.0 | -110.8 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 8.87 | 54.15 | -12.85 | 76.22 | 0.2272 | -746.0 | -607.5 | |
| 3.06 | 11.71 | 1.56 | 5.98 | 9.26 | 53.08 | -13.92 | 75.55 | 0.2463 | -1113.1 | -735.9 | |
| 0.35 | -5.00 | 0.18 | -5.00 | 9.41 | 52.98 | -14.02 | 75.06 | 0.2485 | -1125.0 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 7.91 | 53.01 | -13.99 | 81.06 | 0.2436 | -934.0 | -715.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 8.47 | 52.74 | -14.26 | 78.95 | 0.2494 | -806.0 | -649.3 | |
| 0.00 | 6.11 | 0.00 | 3.13 | 9.19 | 52.62 | -14.39 | 76.23 | 0.2537 | -746.0 | -836.0 | |
| 3.67 | 49.01 | 1.88 | 25.18 | 9.79 | 52.56 | -14.44 | 73.98 | 0.2569 | -1058.5 | -539.7 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 11.10 | 52.50 | -14.51 | 69.17 | 0.2642 | -783.0 | -634.4 | |
| 0.00 | 3.76 | 0.00 | 1.93 | 8.94 | 52.31 | -14.69 | 77.41 | 0.2578 | -776.0 | -695.8 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 9.18 | 52.24 | -14.76 | 76.56 | 0.2598 | -883.0 | -732.3 | |
| 0.00 | 1.66 | 0.00 | 0.85 | 10.26 | 52.19 | -14.81 | 72.58 | 0.2648 | -820.0 | -550.8 | |
| 1.75 | 2.18 | 0.90 | 1.12 | 10.01 | 52.14 | -14.86 | 73.52 | 0.2646 | -887.8 | -782.8 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 9.39 | 52.17 | -14.83 | 75.83 | 0.2617 | -914.0 | -739.0 | |
| 1.75 | -10.00 | 0.90 | -10.00 | 10.34 | 51.97 | -15.03 | 72.50 | 0.2688 | -724.3 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 9.14 | 52.02 | -14.98 | 76.85 | 0.2632 | -568.0 | -438.4 | |
| 1.83 | -10.00 | 0.94 | -10.00 | 10.52 | 51.80 | -15.20 | 72.03 | 0.2722 | 647.0 | 999999 | |
| 11.88 | -10.00 | 6.11 | -10.00 | 10.09 | 51.73 | -15.27 | 73.61 | 0.2716 | -1009.9 | 999999 | |
| 0.00 | 1.92 | 0.00 | 0.99 | 9.76 | 51.56 | -15.45 | 74.95 | 0.2730 | -664.0 | -485.5 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 9.90 | 51.30 | -15.71 | 74.66 | 0.2778 | -816.0 | -599.6 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 9.66 | 51.28 | -15.73 | 75.52 | 0.2772 | -512.0 | -341.6 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 10.29 | 51.18 | -15.82 | 73.40 | 0.2811 | -790.0 | -613.0 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 11.01 | 51.11 | -15.89 | 71.01 | 0.2855 | -912.0 | -618.9 | |
| 0.00 | 5.68 | 0.00 | 2.94 | 10.73 | 50.91 | -16.10 | 72.14 | 0.2875 | -647.0 | -681.0 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 11.84 | 50.65 | -16.35 | 68.76 | 0.2969 | -774.0 | -660.5 | |
| 1.40 | 1.83 | 0.72 | 0.95 | 10.10 | 50.72 | -16.28 | 74.45 | 0.2878 | -857.8 | -755.8 | |
| 0.35 | 42.19 | 0.18 | 21.83 | 9.55 | 50.53 | -16.48 | 76.45 | 0.2890 | -653.0 | 157.4 | |
| 6.03 | -29.00 | 3.12 | -29.00 | 9.22 | 50.42 | -16.59 | 77.65 | 0.2898 | 1115.6 | 999999 | |
| 4.19 | -29.00 | 2.17 | -29.00 | 9.54 | 50.30 | -16.70 | 76.61 | 0.2926 | -817.1 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 12.21 | 50.02 | -16.98 | 68.26 | 0.3087 | -948.0 | -811.0 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 12.45 | 49.91 | -17.09 | 67.65 | 0.3117 | -876.0 | -658.0 | |
| 1.49 | -29.00 | 0.77 | -29.00 | 9.39 | 50.00 | -17.01 | 77.34 | 0.2971 | 640.0 | 999999 | |
| 2.80 | 4.02 | 1.45 | 2.09 | 11.18 | 49.77 | -17.23 | 71.70 | 0.3075 | 1085.2 | 847.9 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 11.48 | 49.65 | -17.35 | 70.88 | 0.3107 | 632.0 | 588.2 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 10.90 | 49.63 | -17.38 | 72.69 | 0.3086 | 552.0 | 302.3 | |
| 3.67 | 34.85 | 1.91 | 18.20 | 10.48 | 49.49 | -17.51 | 74.13 | 0.3090 | 997.3 | -323.6 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 9.88 | 49.46 | -17.54 | 76.06 | 0.3073 | 548.0 | 385.1 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 10.66 | 49.42 | -17.59 | 73.62 | 0.3109 | 618.0 | 512.9 | |
| 1.66 | 4.80 | 0.86 | 2.50 | 9.43 | 49.45 | -17.55 | 77.51 | 0.3060 | -983.9 | -577.8 | |
| 0.00 | 3.23 | 0.00 | 1.68 | 9.45 | 49.10 | -17.90 | 77.65 | 0.3117 | -824.0 | -628.7 | |
| 2.36 | -38.00 | 1.23 | -38.00 | 10.67 | 48.94 | -18.07 | 73.93 | 0.3185 | -1106.1 | 999999 | |
| 2.36 | -38.00 | 1.23 | -38.00 | 10.55 | 48.75 | -18.25 | 74.45 | 0.3210 | -1161.4 | 999999 | |
| 0.00 | 3.41 | 0.00 | 1.78 | 7.97 | 48.86 | -18.14 | 82.46 | 0.3125 | -1246.0 | -967.2 | |
| 0.00 | 1.92 | 0.00 | 1.02 | 15.17 | 48.20 | -18.80 | 61.91 | 0.3541 | 939.0 | 730.6 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 9.55 | 47.63 | -19.38 | 78.09 | 0.3359 | 952.0 | 818.6 | |
| 3.14 | 3.76 | 1.66 | 1.98 | 9.60 | 47.40 | -19.61 | 78.05 | 0.3397 | 1031.1 | 852.3 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 8.79 | 47.44 | -19.56 | 80.40 | 0.3370 | 807.0 | 548.3 | |
| 0.00 | 2.97 | 0.00 | 1.57 | 10.38 | 47.28 | -19.72 | 75.86 | 0.3438 | 1058.0 | 786.0 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 10.23 | 47.23 | -19.77 | 76.33 | 0.3441 | 1057.0 | 905.0 | |
| 0.00 | 1.83 | 0.00 | 0.97 | 9.18 | 47.20 | -19.81 | 79.38 | 0.3418 | 1040.0 | 767.5 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 9.71 | 47.17 | -19.84 | 77.83 | 0.3437 | 928.0 | 846.8 | |
| 0.00 | 3.49 | 0.00 | 1.85 | 10.52 | 46.98 | -20.02 | 75.63 | 0.3490 | 921.0 | 554.9 | |
| 6.90 | 16.95 | 3.64 | 8.95 | 9.64 | 46.88 | -20.12 | 78.16 | 0.3481 | 1166.6 | 800.5 | |
| 2.27 | -55.00 | 1.20 | -55.00 | 9.49 | 46.73 | -20.28 | 78.67 | 0.3501 | 913.0 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.48 | 11.04 | 46.53 | -20.48 | 74.44 | 0.3580 | 1046.0 | 826.4 | |
| 3.41 | 79.23 | 1.81 | 42.11 | 11.90 | 46.26 | -20.74 | 72.28 | 0.3653 | 1239.6 | 545.5 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 9.81 | 46.35 | -20.65 | 77.95 | 0.3569 | 750.0 | 553.1 | |
| 4.19 | -58.00 | 2.23 | -58.00 | 11.66 | 46.12 | -20.88 | 73.03 | 0.3666 | 1215.9 | 999999 | |
| 7.43 | -58.00 | 3.96 | -58.00 | 11.89 | 45.87 | -21.13 | 72.57 | 0.3713 | 1091.9 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 10.72 | 45.80 | -21.20 | 75.73 | 0.3683 | 898.0 | 787.2 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 11.22 | 45.66 | -21.34 | 74.46 | 0.3721 | 705.0 | 592.7 | |
| 0.00 | 2.45 | 0.00 | 1.31 | 11.79 | 45.49 | -21.52 | 73.09 | 0.3769 | 634.0 | 585.8 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 10.70 | 45.38 | -21.63 | 75.99 | 0.3749 | 784.0 | 632.8 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 10.96 | 45.16 | -21.84 | 75.41 | 0.3791 | 909.0 | 811.0 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 11.23 | 45.14 | -21.86 | 74.72 | 0.3803 | 951.0 | 726.7 | |
| 1.83 | 2.18 | 0.98 | 1.17 | 11.04 | 44.89 | -22.11 | 75.34 | 0.3835 | 995.5 | 854.0 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 11.42 | 44.50 | -22.51 | 74.59 | 0.3909 | 744.0 | 615.9 | |
| 15.64 | 54.34 | 8.41 | 29.26 | 11.05 | 44.43 | -22.57 | 75.54 | 0.3908 | 1128.7 | 366.1 | |
| 1.49 | -70.00 | 0.80 | -70.00 | 11.37 | 44.17 | -22.83 | 74.86 | 0.3958 | 875.1 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 8.83 | 44.36 | -22.64 | 81.25 | 0.3866 | 711.0 | 542.8 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 8.97 | 44.12 | -22.88 | 80.95 | 0.3906 | 635.0 | 445.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
