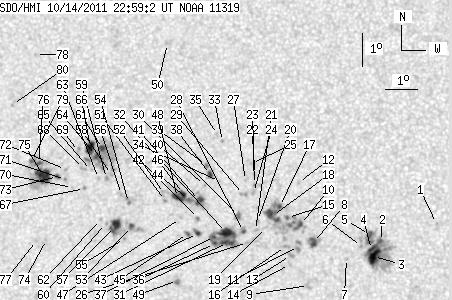

SDO HMI 2011-10-14 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.74 | 478.24 | 65.49 | 248.46 | 10.28 | 49.59 | -16.86 | 74.20 | 0.2974 | 53.0 | -27.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.40 | 9.95 | 56.90 | -9.55 | 66.33 | 0.1792 | -913.0 | -755.0 | |
| 1.14 | 80.46 | 0.57 | 40.70 | 9.38 | 55.19 | -11.26 | 72.09 | 0.2033 | -994.2 | -597.2 | |
| 9.09 | -2.00 | 4.60 | -2.00 | 8.93 | 54.99 | -11.46 | 74.50 | 0.2046 | -1353.0 | 999999 | |
| 3.06 | -2.00 | 1.55 | -2.00 | 9.13 | 54.92 | -11.53 | 73.60 | 0.2066 | -1156.5 | 999999 | |
| 2.97 | -2.00 | 1.50 | -2.00 | 9.58 | 54.85 | -11.60 | 71.62 | 0.2099 | -836.3 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 9.22 | 54.61 | -11.84 | 73.59 | 0.2121 | -793.0 | -625.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 8.85 | 54.16 | -12.29 | 75.76 | 0.2180 | -790.0 | -606.8 | |
| 5.50 | 9.17 | 2.81 | 4.68 | 9.30 | 53.12 | -13.33 | 74.82 | 0.2368 | -1105.6 | -700.0 | |
| 0.00 | 4.19 | 0.00 | 2.14 | 8.01 | 53.01 | -13.44 | 80.31 | 0.2345 | -557.0 | -640.5 | |
| 2.62 | 63.43 | 1.34 | 32.49 | 9.83 | 52.69 | -13.76 | 73.12 | 0.2460 | -1064.9 | -557.5 | |
| 0.00 | 5.77 | 0.00 | 2.94 | 9.17 | 52.66 | -13.79 | 75.78 | 0.2439 | -805.0 | -881.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 11.09 | 52.57 | -13.88 | 68.44 | 0.2542 | -904.0 | -702.8 | |
| 0.00 | 3.15 | 0.00 | 1.61 | 8.90 | 52.42 | -14.03 | 77.08 | 0.2469 | -836.0 | -761.9 | |
| 0.00 | 1.75 | 0.00 | 0.89 | 8.63 | 52.40 | -14.05 | 78.18 | 0.2464 | -673.0 | -605.3 | |
| 1.31 | -10.00 | 0.67 | -10.00 | 10.03 | 52.28 | -14.17 | 72.77 | 0.2536 | -984.5 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.65 | 9.16 | 52.25 | -14.20 | 76.16 | 0.2505 | -854.0 | -625.9 | |
| 1.66 | -10.00 | 0.85 | -10.00 | 10.36 | 52.01 | -14.44 | 71.83 | 0.2593 | -660.5 | 999999 | |
| 9.78 | -10.00 | 5.02 | -10.00 | 10.08 | 51.81 | -14.65 | 73.06 | 0.2614 | -1024.0 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 9.72 | 51.63 | -14.82 | 74.57 | 0.2627 | -686.0 | -475.0 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 9.92 | 51.34 | -15.11 | 74.09 | 0.2682 | -732.0 | -575.5 | |
| 0.00 | 1.92 | 0.00 | 0.99 | 9.62 | 51.29 | -15.16 | 75.23 | 0.2678 | -281.0 | -227.6 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 10.99 | 51.19 | -15.26 | 70.40 | 0.2754 | -854.0 | -672.5 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 11.29 | 51.18 | -15.27 | 69.38 | 0.2772 | -862.0 | -684.7 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 10.75 | 51.18 | -15.28 | 71.26 | 0.2746 | -1014.0 | -742.5 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.62 | 51.06 | -15.39 | 68.39 | 0.2808 | -955.0 | -712.5 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 9.25 | 51.06 | -15.39 | 76.74 | 0.2704 | 747.0 | 583.1 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 11.11 | 50.90 | -15.55 | 70.32 | 0.2806 | -770.0 | -589.2 | |
| 1.31 | 3.41 | 0.67 | 1.75 | 9.58 | 50.92 | -15.53 | 75.67 | 0.2738 | -827.7 | -751.0 | |
| 0.00 | 2.71 | 0.00 | 1.40 | 10.69 | 50.86 | -15.59 | 71.81 | 0.2792 | -732.0 | -696.9 | |
| 0.79 | 4.54 | 0.41 | 2.34 | 10.05 | 50.74 | -15.71 | 74.13 | 0.2785 | -1059.8 | -772.2 | |
| 6.03 | 40.27 | 3.11 | 20.79 | 9.23 | 50.43 | -16.02 | 77.23 | 0.2806 | 1041.4 | 395.1 | |
| 8.12 | -31.00 | 4.19 | -31.00 | 9.53 | 50.38 | -16.07 | 76.22 | 0.2823 | -779.6 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 12.26 | 50.11 | -16.35 | 67.41 | 0.2992 | -931.0 | -738.5 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.05 | 50.08 | -16.37 | 71.31 | 0.2933 | 541.0 | 487.0 | |
| 0.00 | 1.75 | 0.00 | 0.91 | 12.46 | 49.93 | -16.52 | 66.96 | 0.3030 | -741.0 | -639.0 | |
| 1.14 | -31.00 | 0.59 | -31.00 | 9.19 | 50.02 | -16.43 | 77.63 | 0.2871 | 851.6 | 999999 | |
| 1.14 | -31.00 | 0.59 | -31.00 | 9.40 | 50.01 | -16.44 | 76.92 | 0.2879 | 731.2 | 999999 | |
| 2.80 | 3.67 | 1.45 | 1.90 | 11.26 | 49.79 | -16.67 | 70.94 | 0.2989 | 1047.8 | 895.0 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 11.52 | 49.64 | -16.81 | 70.22 | 0.3025 | 1038.0 | 825.6 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 10.92 | 49.61 | -16.84 | 72.17 | 0.3001 | 754.0 | 484.3 | |
| 4.11 | 29.79 | 2.13 | 15.50 | 10.47 | 49.48 | -16.97 | 73.75 | 0.3003 | 1059.7 | -22.0 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 9.93 | 49.48 | -16.97 | 75.52 | 0.2983 | 573.0 | 551.1 | |
| 1.92 | 3.49 | 1.00 | 1.81 | 9.48 | 49.47 | -16.98 | 77.01 | 0.2969 | -944.9 | -715.5 | |
| 1.40 | -41.00 | 0.73 | -41.00 | 10.49 | 49.13 | -17.32 | 73.96 | 0.3060 | -845.4 | 999999 | |
| 1.49 | 2.45 | 0.77 | 1.27 | 9.47 | 49.15 | -17.30 | 77.24 | 0.3020 | -785.3 | -723.3 | |
| 2.71 | -41.00 | 1.41 | -41.00 | 10.66 | 48.96 | -17.49 | 73.54 | 0.3094 | -1118.1 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 9.91 | 48.91 | -17.54 | 75.96 | 0.3074 | -598.0 | -468.5 | |
| 6.29 | -41.00 | 3.28 | -41.00 | 10.53 | 48.78 | -17.67 | 74.07 | 0.3118 | -1076.7 | 999999 | |
| 0.00 | 4.19 | 0.00 | 2.18 | 8.05 | 48.91 | -17.55 | 82.01 | 0.3028 | -1181.0 | -880.2 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 15.16 | 48.11 | -18.34 | 61.41 | 0.3474 | 760.0 | 623.0 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 10.43 | 48.40 | -18.05 | 74.65 | 0.3174 | 305.0 | 355.1 | |
| 0.00 | 4.81 | 0.00 | 2.51 | 10.64 | 48.35 | -18.10 | 74.04 | 0.3189 | -43.0 | -192.7 | |
| 2.53 | 9.78 | 1.33 | 5.13 | 9.62 | 47.36 | -19.09 | 77.74 | 0.3315 | 1123.1 | 786.0 | |
| 0.35 | 4.81 | 0.18 | 2.53 | 10.33 | 47.22 | -19.23 | 75.70 | 0.3359 | 1114.2 | 688.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 9.25 | 47.16 | -19.30 | 78.93 | 0.3338 | 1065.0 | 879.9 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 10.57 | 46.98 | -19.47 | 75.17 | 0.3405 | 919.0 | 777.4 | |
| 9.96 | 17.56 | 5.24 | 9.24 | 9.60 | 46.85 | -19.61 | 78.04 | 0.3397 | 1088.9 | 741.2 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 11.15 | 46.61 | -19.84 | 73.72 | 0.3484 | 856.0 | 625.9 | |
| 0.00 | 2.01 | 0.00 | 1.06 | 11.03 | 46.46 | -19.99 | 74.17 | 0.3503 | 1028.0 | 851.3 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 9.68 | 46.52 | -19.93 | 77.97 | 0.3451 | 638.0 | 538.2 | |
| 3.58 | 69.80 | 1.90 | 36.99 | 11.92 | 46.26 | -20.19 | 71.84 | 0.3569 | 1159.3 | 639.1 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 9.80 | 46.35 | -20.10 | 77.72 | 0.3481 | 762.0 | 536.1 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 11.02 | 46.20 | -20.25 | 74.36 | 0.3543 | 896.0 | 655.6 | |
| 2.45 | -61.00 | 1.30 | -61.00 | 11.71 | 46.09 | -20.37 | 72.55 | 0.3588 | 1249.7 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 11.25 | 45.96 | -20.49 | 73.87 | 0.3590 | 842.0 | 650.5 | |
| 8.30 | -61.00 | 4.41 | -61.00 | 11.94 | 45.87 | -20.58 | 72.07 | 0.3630 | 1082.9 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 10.70 | 45.77 | -20.68 | 75.48 | 0.3601 | 1037.0 | 751.7 | |
| 0.00 | 2.27 | 0.00 | 1.21 | 11.30 | 45.69 | -20.76 | 73.90 | 0.3633 | 778.0 | 663.0 | |
| 0.00 | 3.06 | 0.00 | 1.63 | 11.81 | 45.49 | -20.96 | 72.68 | 0.3684 | 670.0 | 545.1 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 10.72 | 45.38 | -21.07 | 75.64 | 0.3663 | 696.0 | 548.8 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 10.95 | 45.13 | -21.32 | 75.16 | 0.3709 | 969.0 | 850.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 11.25 | 45.11 | -21.34 | 74.38 | 0.3723 | 937.0 | 704.7 | |
| 2.01 | 2.53 | 1.07 | 1.35 | 11.03 | 44.86 | -21.59 | 75.09 | 0.3753 | 953.2 | 737.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 9.13 | 44.64 | -21.81 | 80.21 | 0.3739 | 657.0 | 550.2 | |
| 15.64 | 50.06 | 8.38 | 26.85 | 11.04 | 44.40 | -22.05 | 75.30 | 0.3826 | 1105.9 | 370.3 | |
| 2.53 | -75.00 | 1.36 | -75.00 | 11.40 | 44.21 | -22.24 | 74.49 | 0.3867 | 852.4 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 9.09 | 44.31 | -22.14 | 80.42 | 0.3790 | 836.0 | 670.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 14.67 | 43.80 | -22.66 | 66.79 | 0.4072 | 747.0 | 644.9 | |
| 2.01 | -75.00 | 1.08 | -75.00 | 11.48 | 43.97 | -22.48 | 74.41 | 0.3907 | 683.7 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 13.14 | 43.19 | -23.26 | 70.83 | 0.4090 | 649.0 | 543.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
