SDO HMI 2011-10-14 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.71 | 387.51 | 55.98 | 330.74 | 23.31 | 119.61 | 53.71 | 294.50 | 0.8157 | -755.5 | -311.9 | |
|
previous
or next observation for the same group /

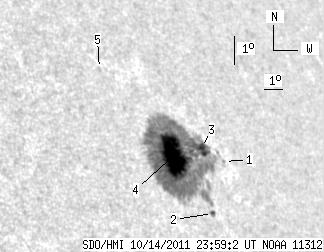

back to the solar disc SDO HMI 2011-10-14 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.71 | 22.89 | 122.14 | 56.24 | 293.57 | 0.8378 | 410.0 | 308.7 | |
| 1.75 | 2.53 | 1.51 | 2.19 | 21.37 | 120.55 | 54.65 | 292.00 | 0.8214 | 295.0 | 243.6 | |
| 4.46 | 382.79 | 3.93 | 326.69 | 23.42 | 121.14 | 55.24 | 294.36 | 0.8297 | 508.2 | -314.3 | |
| 59.50 | -3.00 | 50.54 | -3.00 | 23.30 | 119.49 | 53.59 | 294.52 | 0.8146 | -911.5 | 999999 | |
| 0.00 | 1.40 | 0.00 | 1.15 | 26.28 | 117.27 | 51.37 | 298.65 | 0.8004 | -588.0 | -466.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
