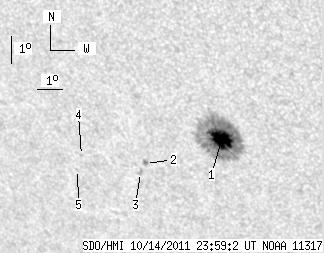

SDO HMI 2011-10-14 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.60 | 160.07 | 17.25 | 107.98 | -26.70 | 37.37 | -28.53 | 141.06 | 0.6810 | 1071.5 | 374.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-14 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.55 | 152.99 | 16.51 | 102.92 | -26.64 | 37.57 | -28.33 | 141.18 | 0.6789 | 1193.3 | 369.4 | |
| 1.05 | 2.01 | 0.74 | 1.42 | -27.68 | 34.31 | -31.59 | 139.32 | 0.7141 | 728.2 | 670.4 | |
| 0.00 | 2.71 | 0.00 | 1.92 | -28.02 | 34.00 | -31.90 | 139.41 | 0.7194 | 558.0 | 483.0 | |
| 0.00 | 1.14 | 0.00 | 0.82 | -27.54 | 31.78 | -34.12 | 137.12 | 0.7333 | 572.0 | 426.2 | |
| 0.00 | 1.22 | 0.00 | 0.90 | -28.07 | 31.43 | -34.47 | 137.39 | 0.7401 | 329.0 | 314.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
