SDO HMI 2011-10-14 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.56 | 32.33 | 5.18 | 19.57 | 19.89 | 98.93 | 33.03 | 296.71 | 0.5757 | -233.0 | -350.3 | |
|
previous
or next observation for the same group /

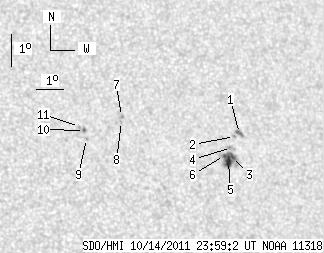

back to the solar disc SDO HMI 2011-10-14 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 3.58 | 0.80 | 2.20 | 20.31 | 100.17 | 34.27 | 296.68 | 0.5932 | -667.2 | -492.8 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 20.23 | 99.95 | 34.05 | 296.66 | 0.5901 | -759.0 | -688.6 | |
| 0.96 | 18.79 | 0.59 | 11.43 | 19.62 | 99.73 | 33.83 | 295.78 | 0.5846 | -729.5 | -570.3 | |
| 0.00 | 3.32 | 0.00 | 2.03 | 19.90 | 99.76 | 33.86 | 296.22 | 0.5862 | -521.0 | -482.0 | |
| 4.89 | -3.00 | 2.97 | -3.00 | 19.48 | 99.54 | 33.64 | 295.64 | 0.5815 | -942.1 | 999999 | |
| 0.35 | -3.00 | 0.21 | -3.00 | 19.67 | 99.43 | 33.53 | 296.01 | 0.5810 | -966.8 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.87 | 21.07 | 95.88 | 29.98 | 300.45 | 0.5431 | 654.0 | 594.1 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 20.91 | 95.85 | 29.95 | 300.21 | 0.5418 | 767.0 | 559.1 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 20.45 | 94.47 | 28.57 | 300.38 | 0.5215 | 628.0 | 513.4 | |
| 1.05 | 1.31 | 0.61 | 0.76 | 20.70 | 94.45 | 28.55 | 300.83 | 0.5227 | 850.2 | 753.0 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 20.83 | 94.29 | 28.39 | 301.18 | 0.5215 | 807.0 | 677.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
